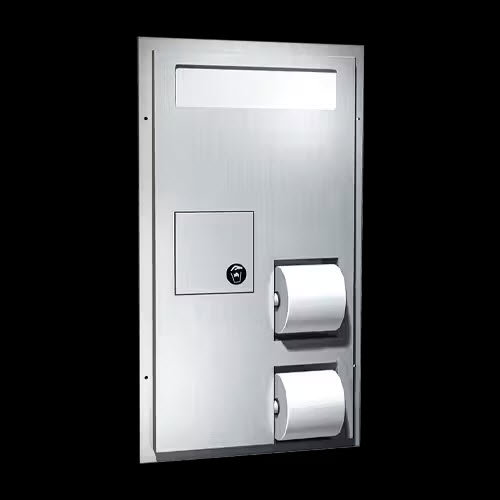

Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

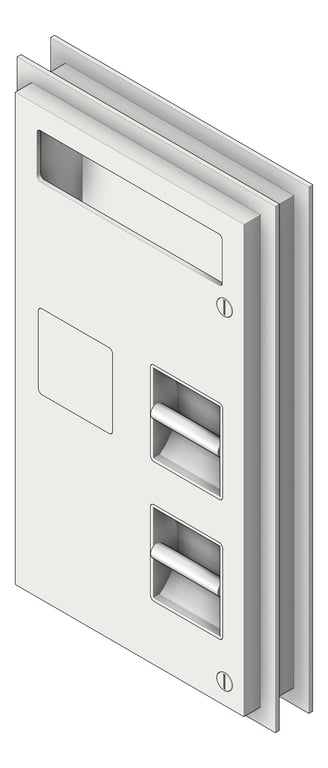

3D Shaded Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

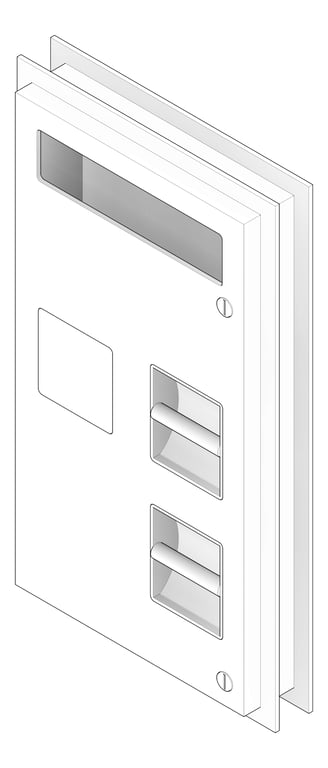

3D Documentation Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

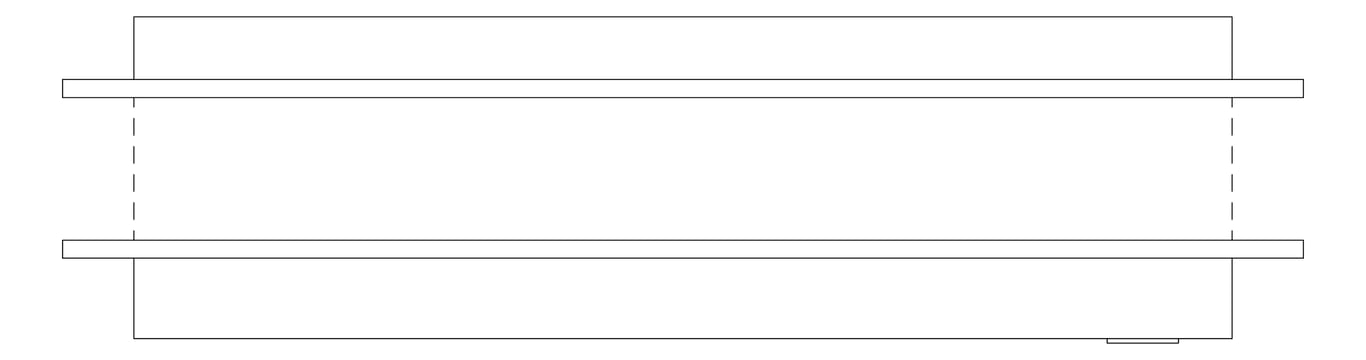

Plan Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

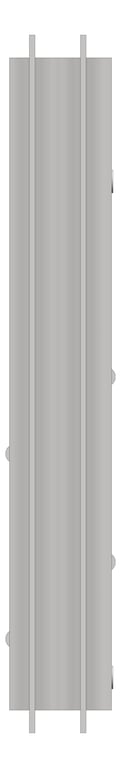

Left Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

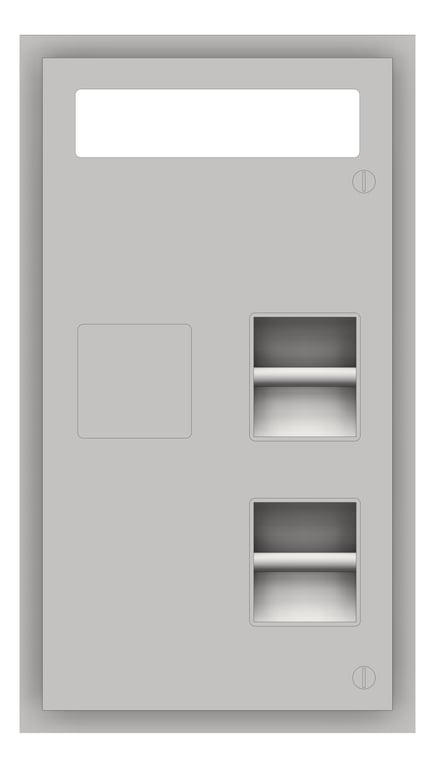

Front Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal
0481.jpg Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover SanitaryDisposal

Toilet tissue and receptacle on opposite sides of 0481-HC.

One side mounts flush on barrier-free compartment side to allow grab bar clearance. Usable by both sides but serviced from one side. Access door shall be opposite HC stall.

Holds 1000 seat covers and 4 rolls of standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
17 3/8"
Depth
4 1/2"
Height
30 5/8"
Model
0481|0481-R|0481-HC|0481-HCR
Type Comments
Types
