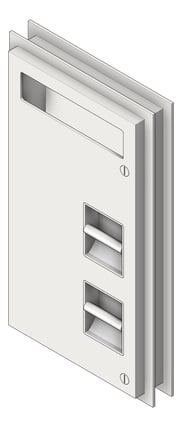

3D Shaded Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

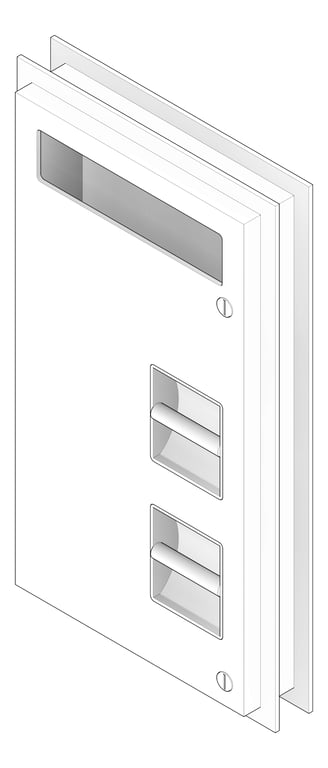

3D Documentation Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

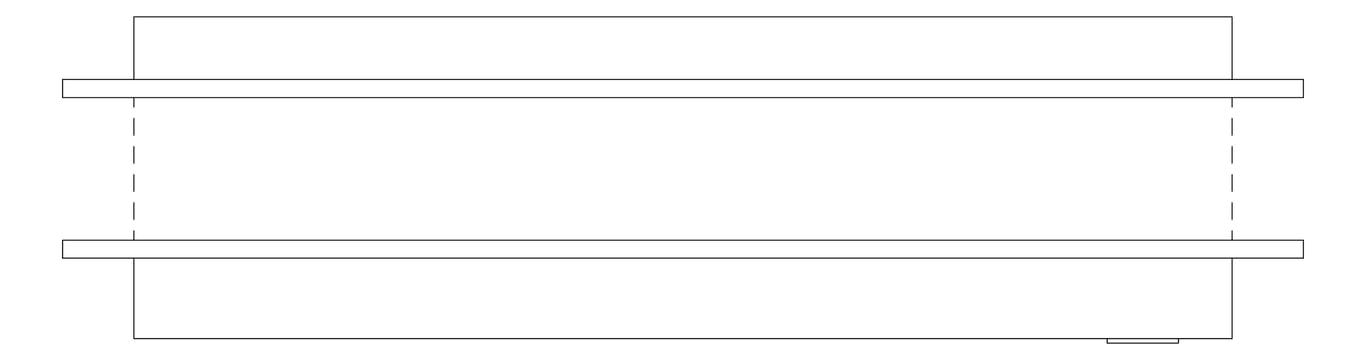

Plan Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

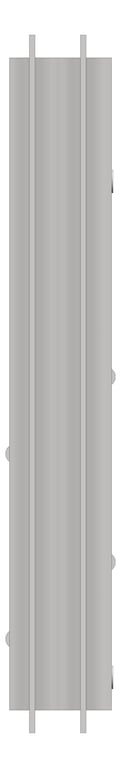

Left Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

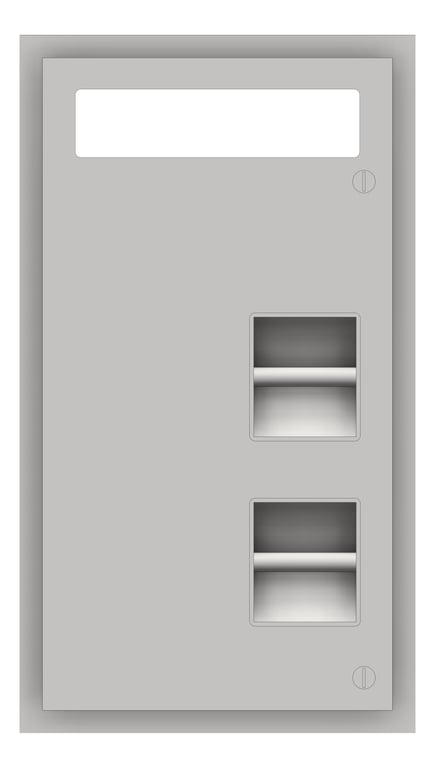

Front Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

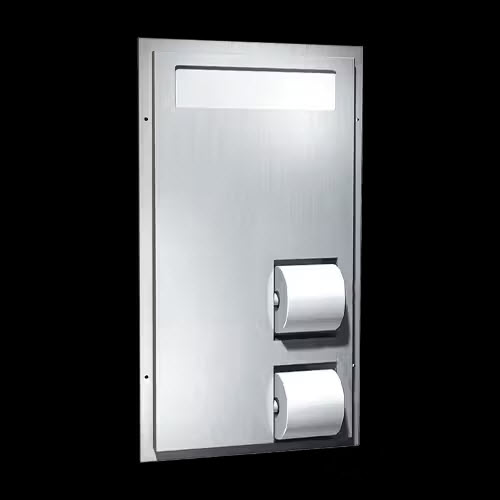

0484.jpg Image of ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

ToiletTissueDispenser PartitionMount ASI DualAccess ToiletSeatCover

Toilet tissue dispenser on opposite sides from 0484-HC.

Holds and dispenses 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper rolls.

One side mounts flush to partition of barrier-free side to allow for grab bar. Usable both sides but serviced from one side. Access door is opposite HC stall. Internal baffles prevent line of sight view from either side through unit at any time.

Cabinet door is held closed with two (2) tumbler locks. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] (supplied).

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
17 3/8"
Depth
4 1/2"
Height
30 5/8"
Model
0484|0484-R|0484-HC|0484-HCR
Type Comments
Types
