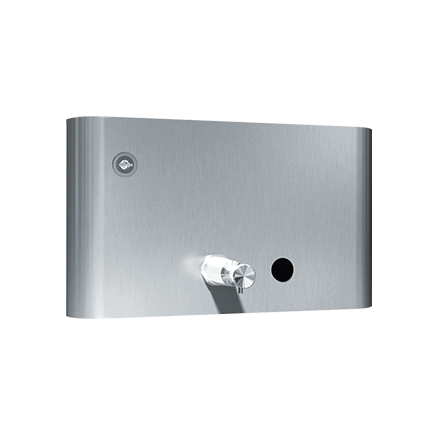

Image of SoapDispenser Recessed ASIJDMacDonald Profile

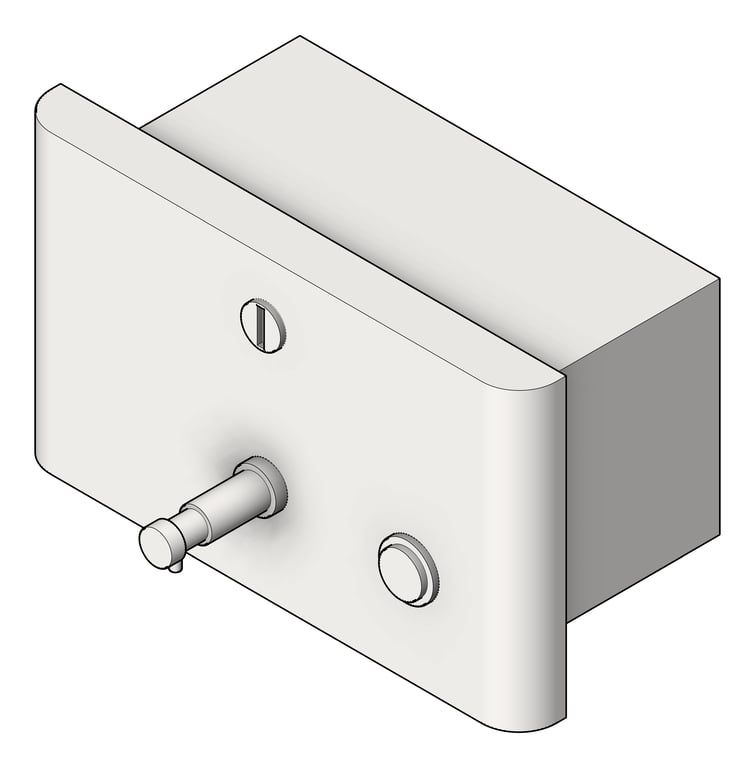

3D Shaded Image of SoapDispenser Recessed ASIJDMacDonald Profile

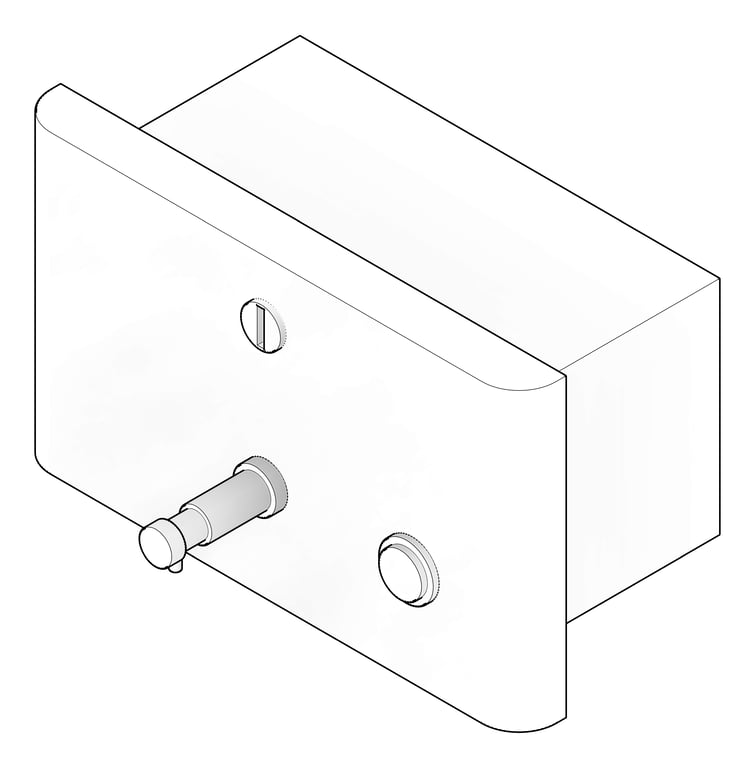

3D Documentation Image of SoapDispenser Recessed ASIJDMacDonald Profile

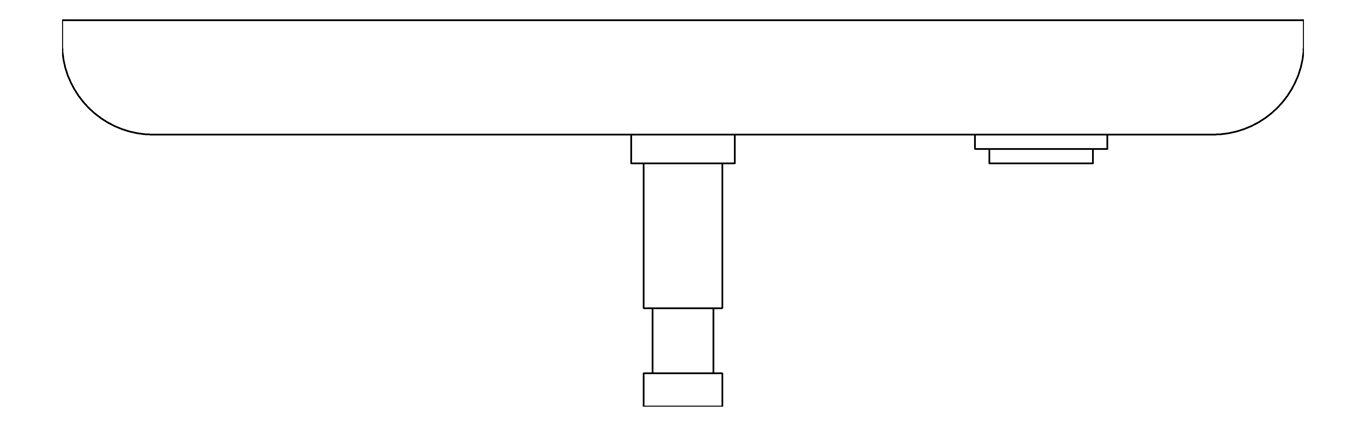

Plan Image of SoapDispenser Recessed ASIJDMacDonald Profile

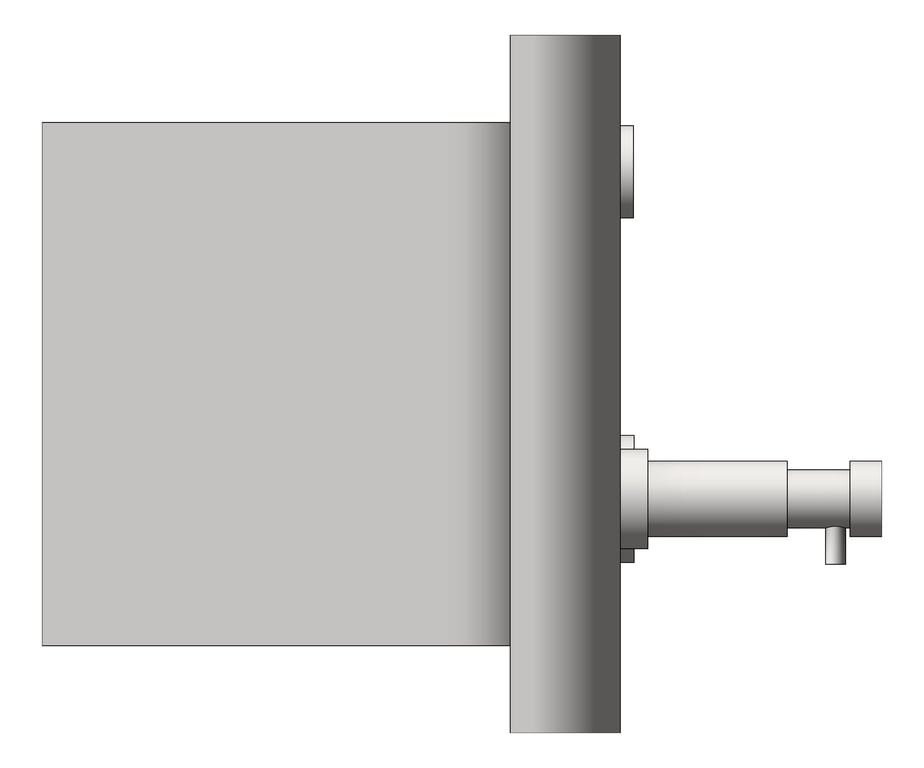

Left Image of SoapDispenser Recessed ASIJDMacDonald Profile

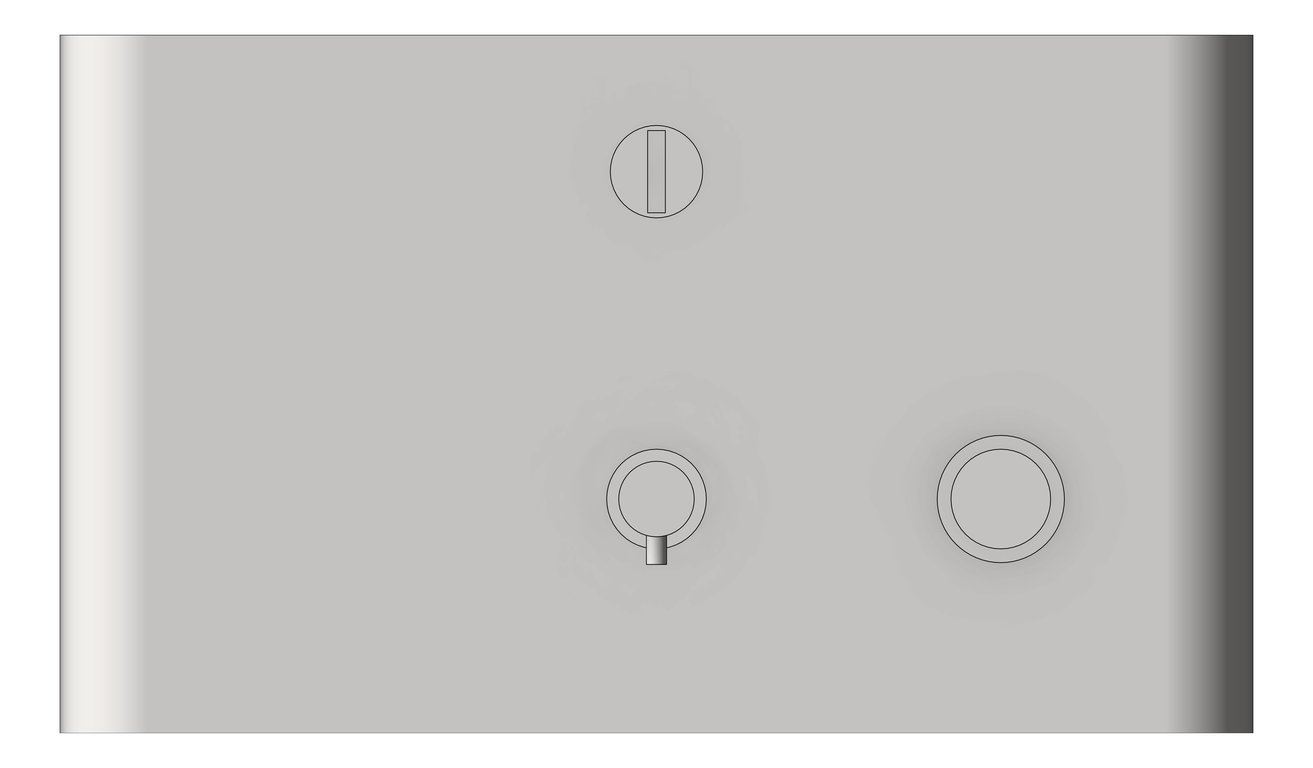

Front Image of SoapDispenser Recessed ASIJDMacDonald Profile
10-9326_ASIJDMacDonald_Soap_Dispenser_Recessed_Profile_Web.png Image of SoapDispenser Recessed ASIJDMacDonald Profile

SoapDispenser Recessed ASIJDMacDonald Profile

Satin stainless steel finish. Can dispense liquid or lotion soap, synthetic detergent or antibacterial soap*. Features a push valve which is constructed of chrome-plated brass, an impact resistant level window and a flush rimless tumbler lock. Dispenser has a covered stainless steel soap tank attached to the door, which hinges out for easy filling and cleaning. Capacity: 1.54 L.

• Soap Requirements: Proper usage of this dispenser requires that only soap within the following range for viscosity and pH may be used:

• Viscosity Range (mPa·s or cP): 100 – 2500

• pH Range: 5.5 ~ 8.0

* For a detailed list of acceptable soap types suitable for use in each unit, please download our ‘Soap Dispensing Information’ guide.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
183 mm
Height
152 mm
Width
260 mm
Model
10-9326
ModifiedIssue
20221201.00
