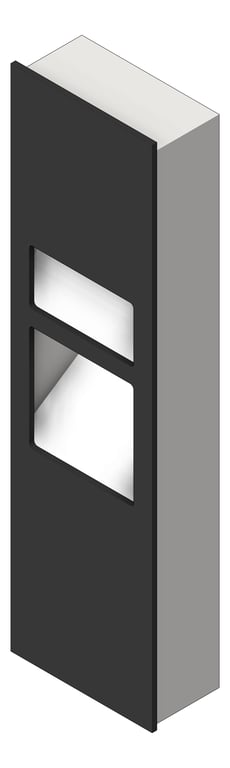

3D Shaded Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

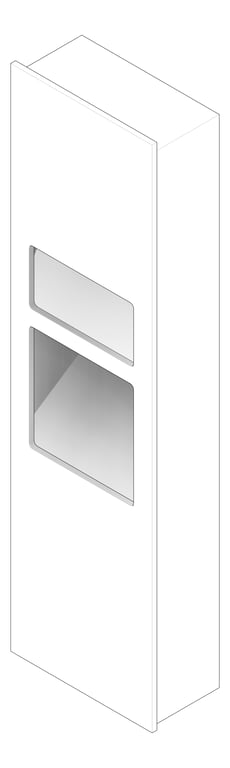

3D Documentation Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L
Plan Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

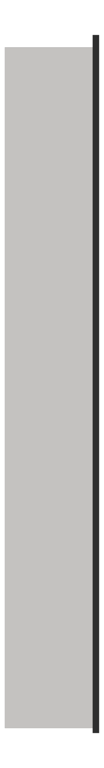

Left Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

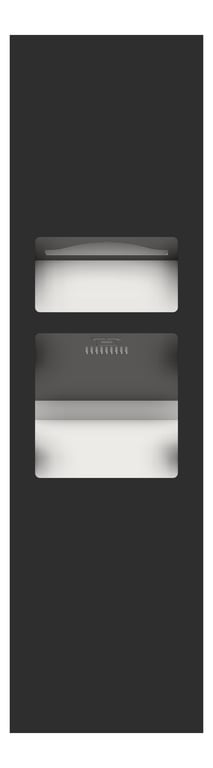

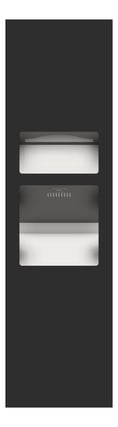

Front Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

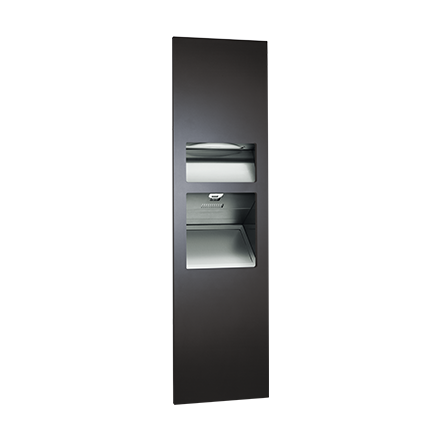

64672-2-41_ASIJDMacDonald_Turbo_3in1_Hand_Dryer_Piatto_Matte_Black.png Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

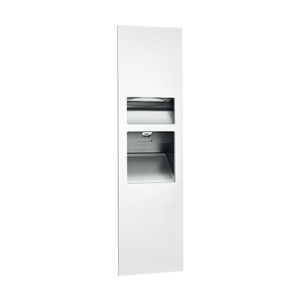

64672-2-00_ASIJDMacDonald_Turbo_3in1_Hand_Dryer_Piatto_White-300x300.png Image of CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

CombinationUnit Recessed ASIJDMacDonald Piatto HandDryer PaperDispenser WasteBin 26L

This sophisticated 3-in-1 cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.Holds and dispenses 500 standard multi-fold or 400 standard C-fold paper towels. Dispensing of multi-fold or C-fold paper towels does not require an additional adapter. Paper towels are manually withdrawn through dispensing slot and feed properly until depleted. Unit will continue to feed towels properly when correctly reloaded with a partial load in place. Refill dispenser by unlatching door and replacing towels for an empty or partially empty unit.The 3-in-1 also features an automatic hand dryer with a 5-year warranty. User activates dryer by placing hands in the sensor zone indicated by graphic on door. Drying time is automatically initiated as long as movement is sensed up to a maximum of two (2) minutes to prevent accidental hold-on. Dryer automatically shuts off after time-out when hands are removed from the sensor zone.Waste Receptacle has a waste capacity of 26 L and is equipped with a full cover and spring-hinge flap door to prevent unsightly overloads.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
191 mm
Height
1407 mm
Width
391 mm
Model
10-64672-2-41|10-64672-2-00
ModifiedIssue
20221201.00
Types
ASI JD MacDonald Logo
