Developed by BIM Content specialists, IGS Group (IGS BIM Solutions), this comprehensive update to the James Hardie BIM library includes nearly 500 new and updated 2D Construction Detail Drawings across nine popular product ranges.
Updated Product Ranges:
✅Primeline™ Weatherboard (new details)
✅Linea™ Weatherboard (85 new drawings added)
✅Hardie™ Brushed Concrete Cladding (66 new drawings added)
✅Hardie™ Fine Texture Cladding (62 new drawings added)
✅Stria™ Cladding (69 new drawings added)
✅Stria™ Fine Texture Cladding (69 new drawings added)
✅Hardie™ Oblique™ Cladding (69 new drawings added)
✅Axon™ Cladding (76 new drawings added)
✅Matrix™ Cladding (18 new drawings added)
Key Updates to the 2D Detail Drawings:
- New drawing options are now available for Cavity Fix drawings with the addition of Timber Battens, which can be identified by the new CFTB (Cavity Fix, Timber Batten) code.
- The library also includes new installation details for Steel Framing, which can now be identified with the code -S- (Timber frames now having the -T- code)
The comprehensive James Hardie Detail Library now offers product ranges with configurations for Cavity/Timber Battens/Direct Fix applications across both Steel and Timber framing, providing architects and specifiers with maximum design flexibility.
The James Hardie Revit library can be downloaded via BIMcontent.com, the James Hardie Australia website, or accessed directly within Revit via the free BIMcontent.com Revit Plug-in.
For Archicad users, a corresponding library of parametric, intuitive Archicad content developed natively in Archicad with Library Container Files, Surface Attributes files, and Archicad project files is also available for download.

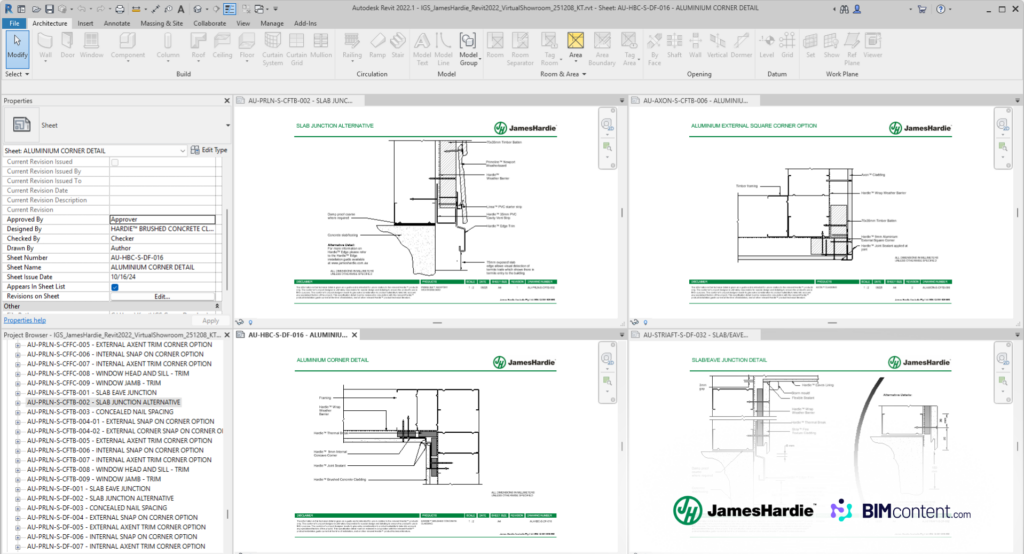

Construction Detail sheets for the ranges are available in Native Revit Drawings for easy imports, with options to download them as PDF, DWG and Image Formats.
To explore and download James Hardie’s BIM library, visit https://bimcontent.com/james-hardie/
