Image of WALL Assembly Partition TypeB9 3760x9300mm

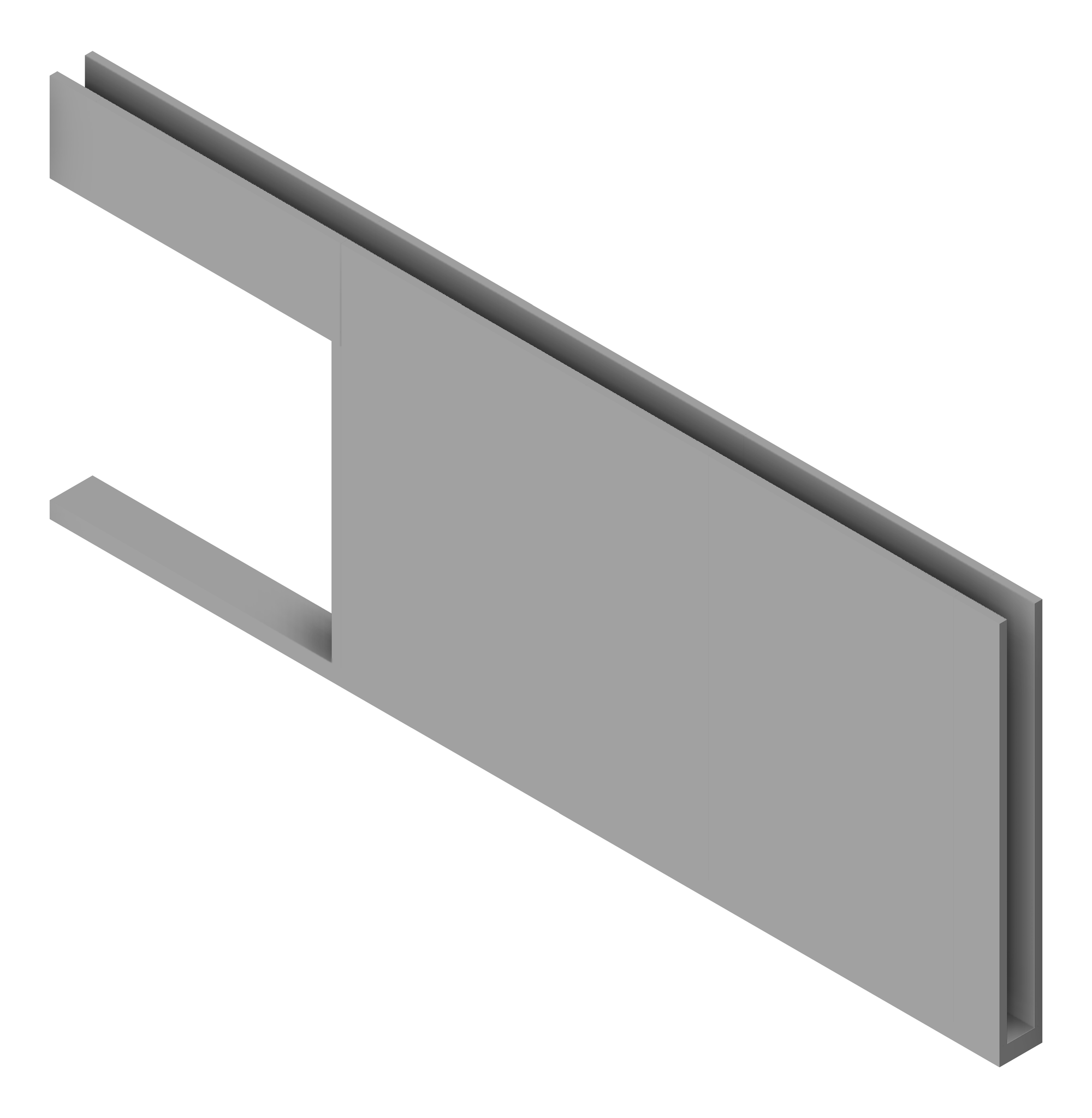

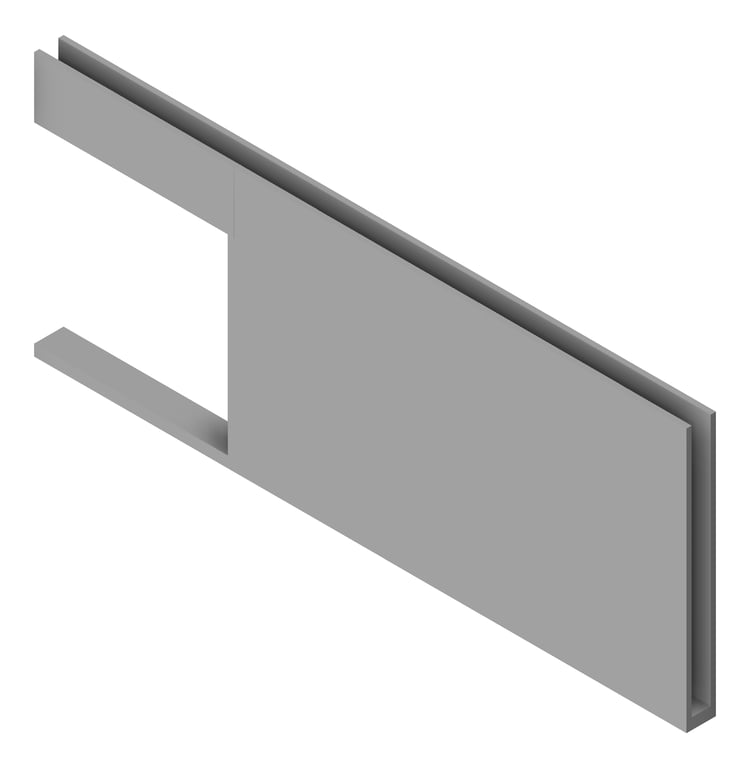

3D Presentation Image of WALL Assembly Partition TypeB9 3760x9300mm
3D Shaded Image of WALL Assembly Partition TypeB9 3760x9300mm

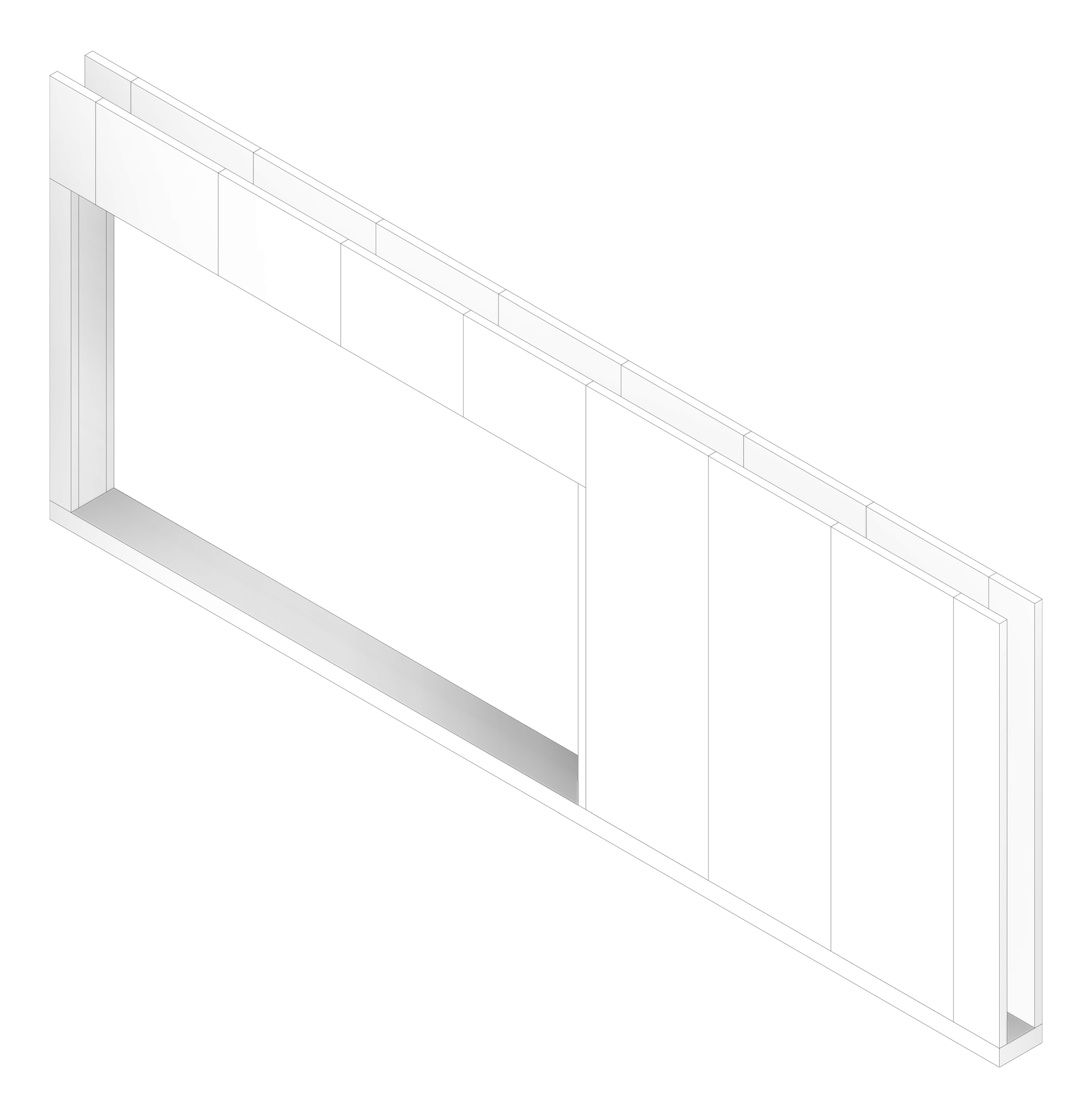

3D Documentation Image of WALL Assembly Partition TypeB9 3760x9300mm
Plan Image of WALL Assembly Partition TypeB9 3760x9300mm

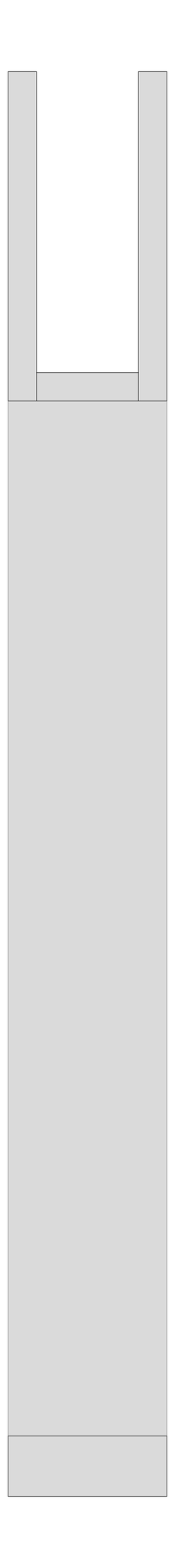

Left Image of WALL Assembly Partition TypeB9 3760x9300mm

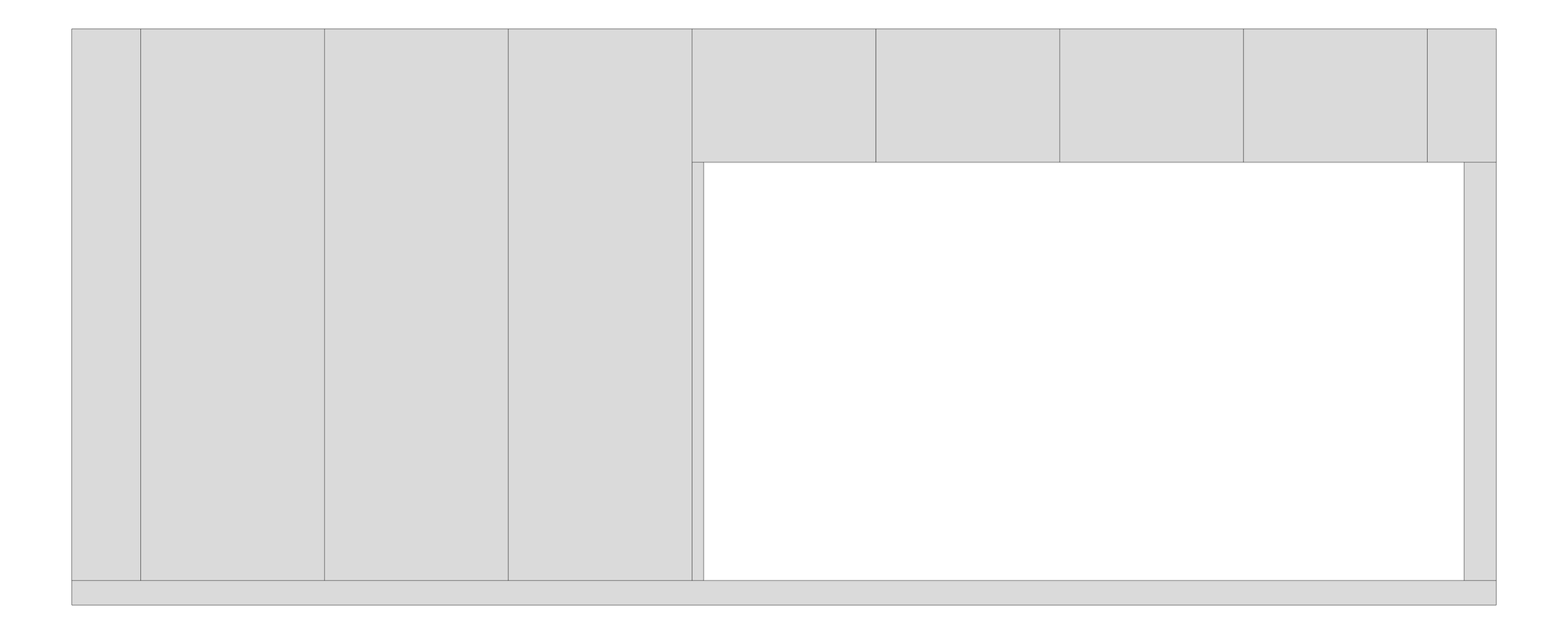

Front Image of WALL Assembly Partition TypeB9 3760x9300mm

WALL Assembly Partition TypeB9 3760x9300mm

WALL Assembly Partition TypeB9 3760x9300mm



For access to the Kit of Parts models, please Contact Us

Advanced Materials
Created By IGS BIM Solutions
Bulk Download Options
AreaXY
3.906 sqm
AreaXZ
34.968 sqm
HeightZ
3760 mm
LengthX
9300 mm
ModifiedIssue
V01.01
PerimeterXY
19440 mm
PerimeterXZ
26120 mm
Volume
14.687 cum
WidthY
420 mm
Types
