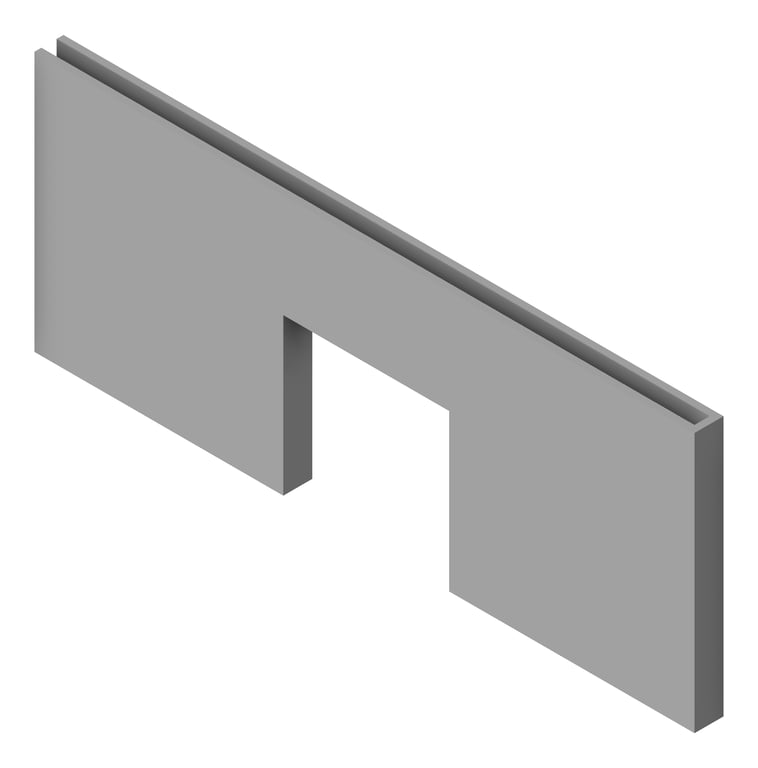

    3D Shaded Image of WALL Assembly Partition TypeB8 3760x9300mm

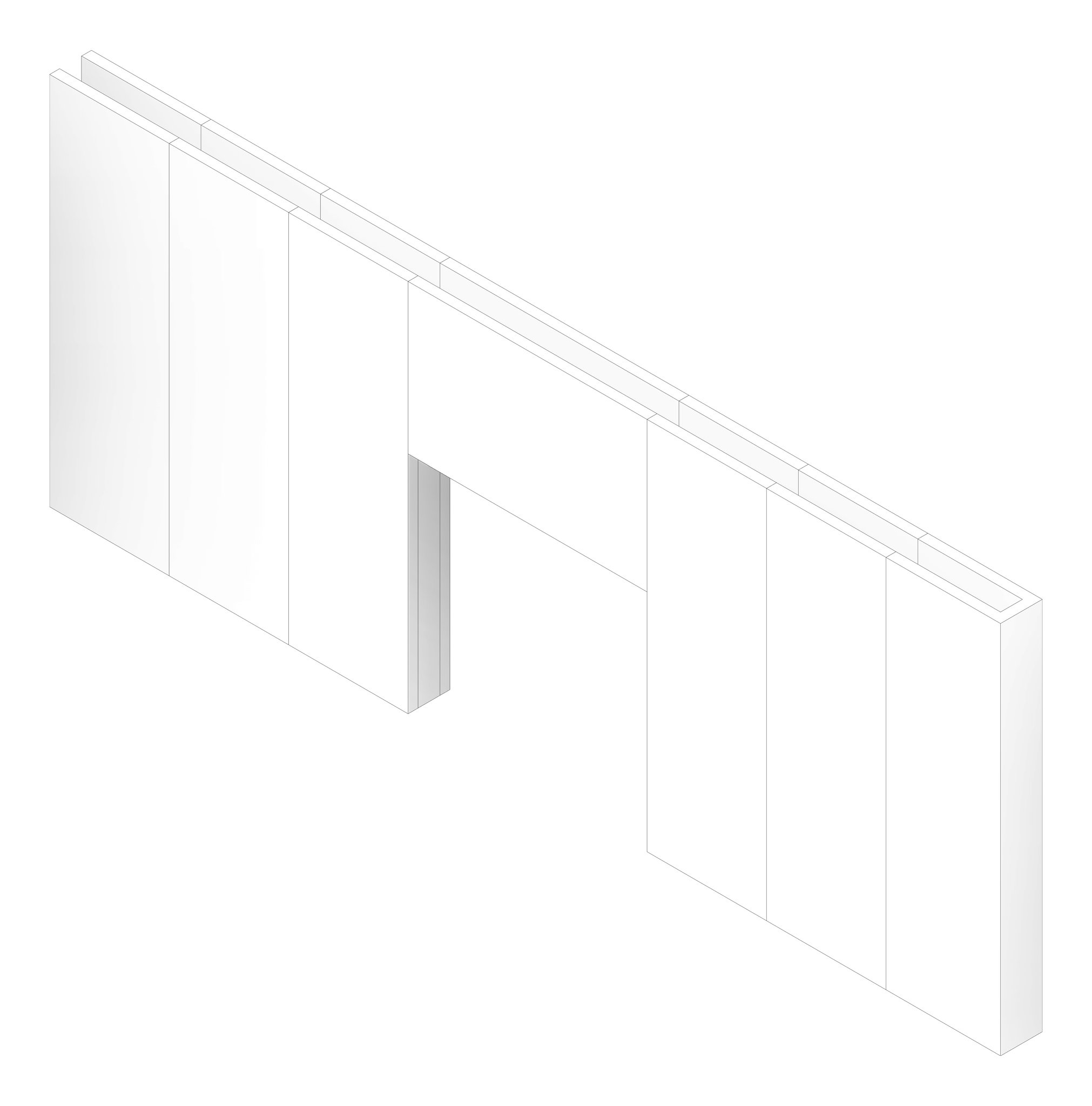

    3D Documentation Image of WALL Assembly Partition TypeB8 3760x9300mm
    Plan Image of WALL Assembly Partition TypeB8 3760x9300mm

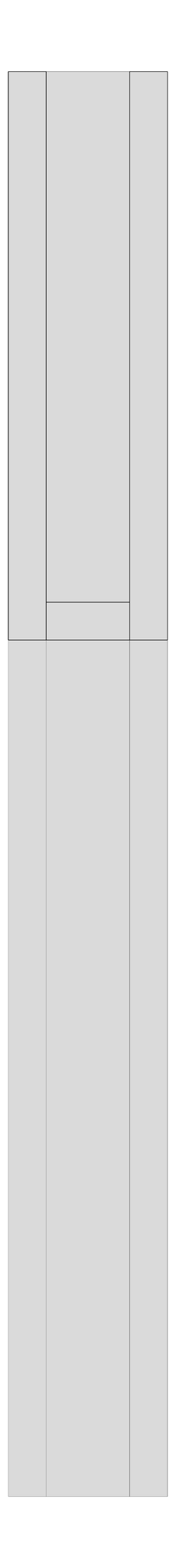

    Left Image of WALL Assembly Partition TypeB8 3760x9300mm

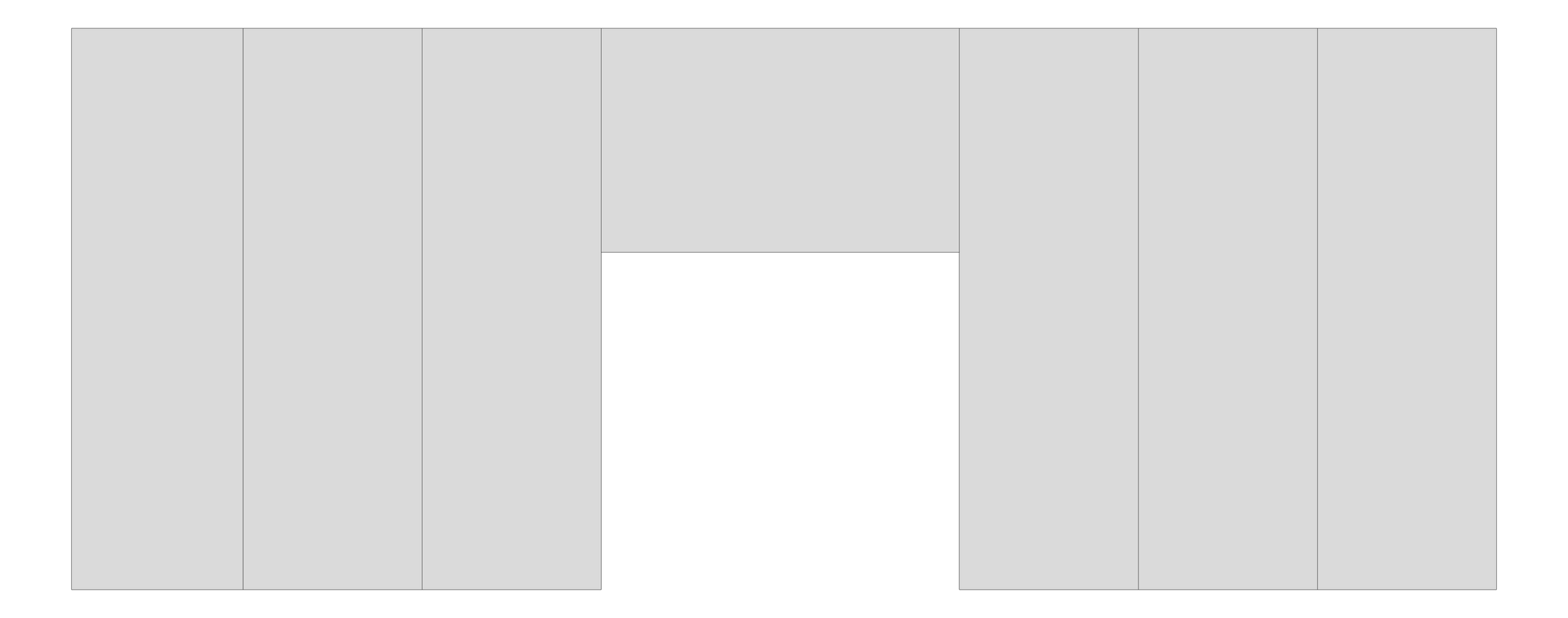

    Front Image of WALL Assembly Partition TypeB8 3760x9300mm

    WALL Assembly Partition TypeB8 3760x9300mm

    KOP-SINSW-ZZ-XX-DR-A-WAPB-008-90

    WALL Assembly Partition TypeB8 3760x9300mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    4.011 sqm
    AreaXZ
    35.908 sqm
    HeightZ
    3760 mm
    LengthX
    9550 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    19940 mm
    PerimeterXZ
    26620 mm
    Volume
    15.081 cum
    WidthY
    420 mm
