Image of WALL Assembly Partition TypeB7 3232x8600mm
    3D Presentation Image of WALL Assembly Partition TypeB7 3232x8600mm

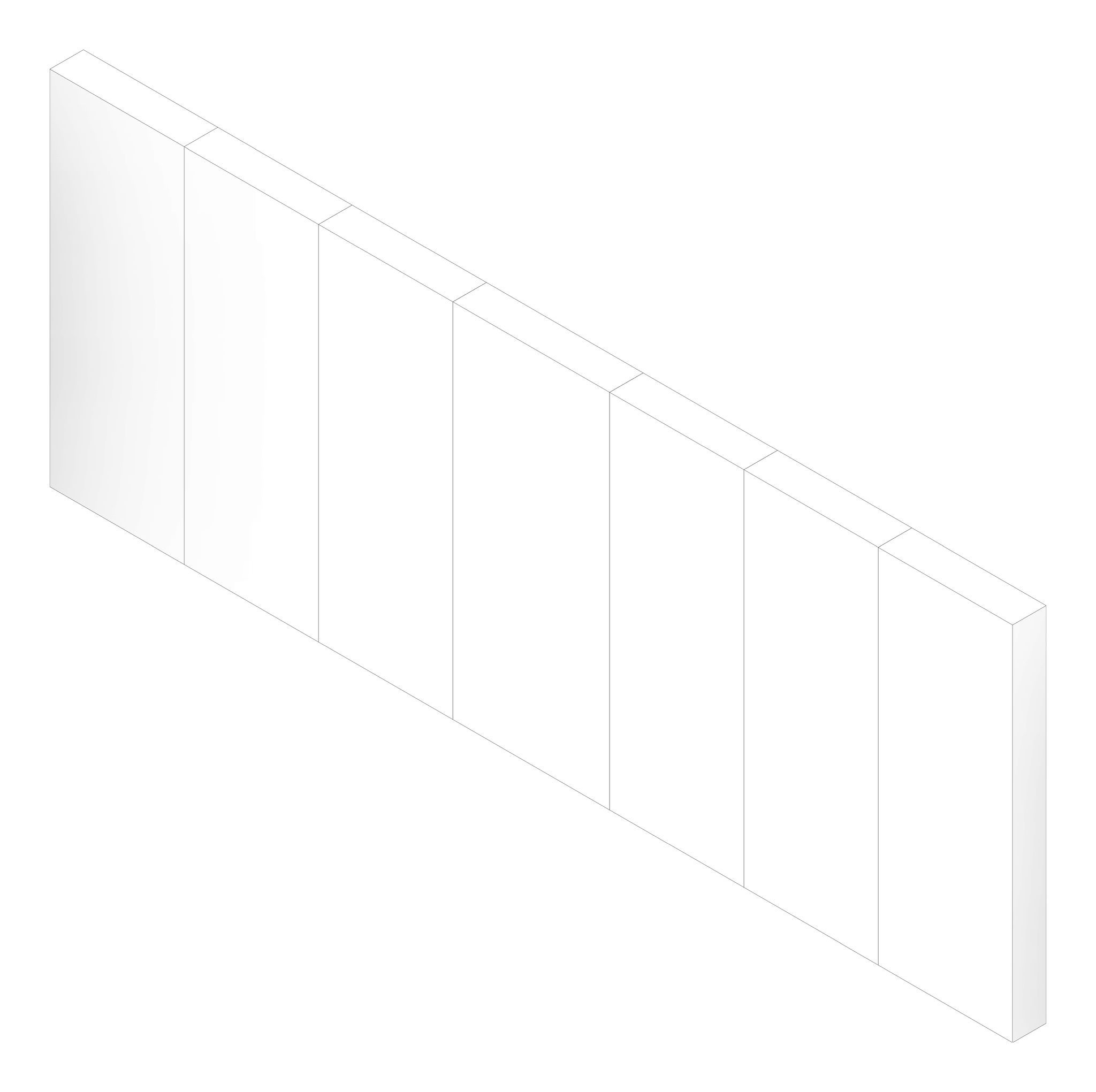

    3D Documentation Image of WALL Assembly Partition TypeB7 3232x8600mm
    Plan Image of WALL Assembly Partition TypeB7 3232x8600mm

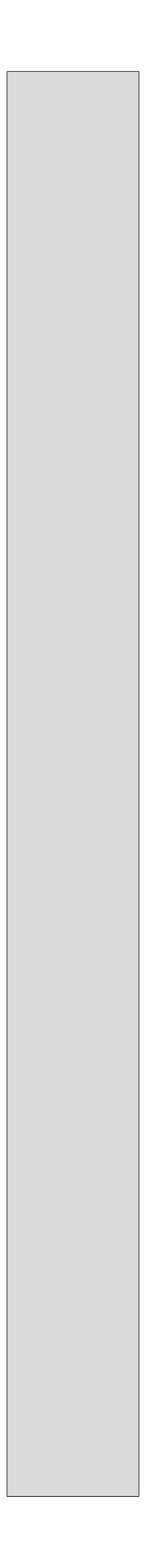

    Left Image of WALL Assembly Partition TypeB7 3232x8600mm

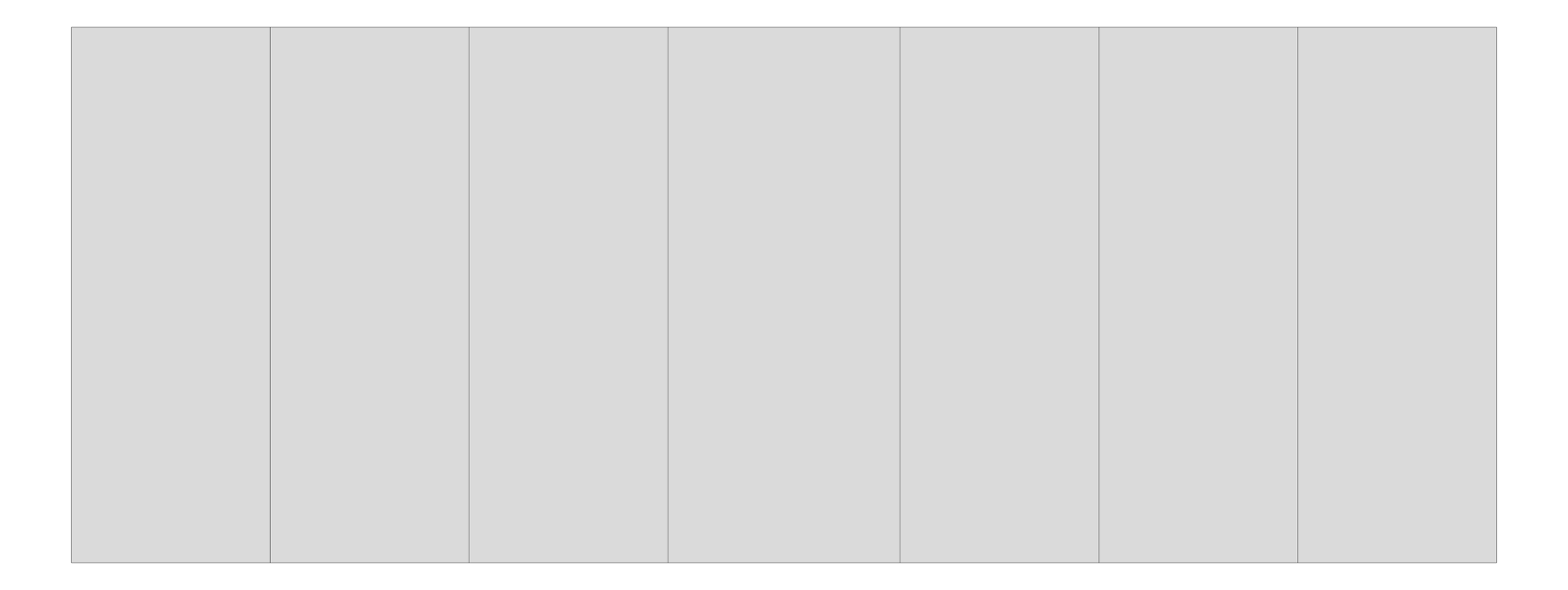

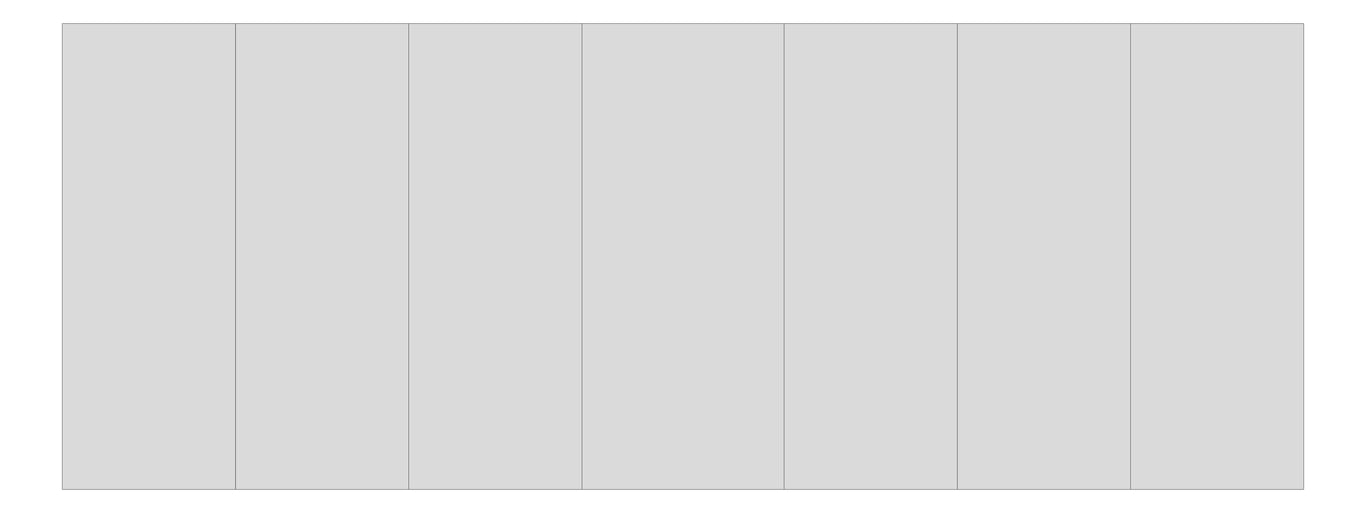

    Front Image of WALL Assembly Partition TypeB7 3232x8600mm

    WALL Assembly Partition TypeB7 3232x8600mm

    KOP-SINSW-ZZ-XX-DR-A-WAPB-007-90

    WALL Assembly Partition TypeB7 3232x8600mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    2.58 sqm
    AreaXZ
    27.795 sqm
    HeightZ
    3232 mm
    LengthX
    8600 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    17800 mm
    PerimeterXZ
    23664 mm
    Volume
    8.339 cum
    WidthY
    300 mm
    Types
