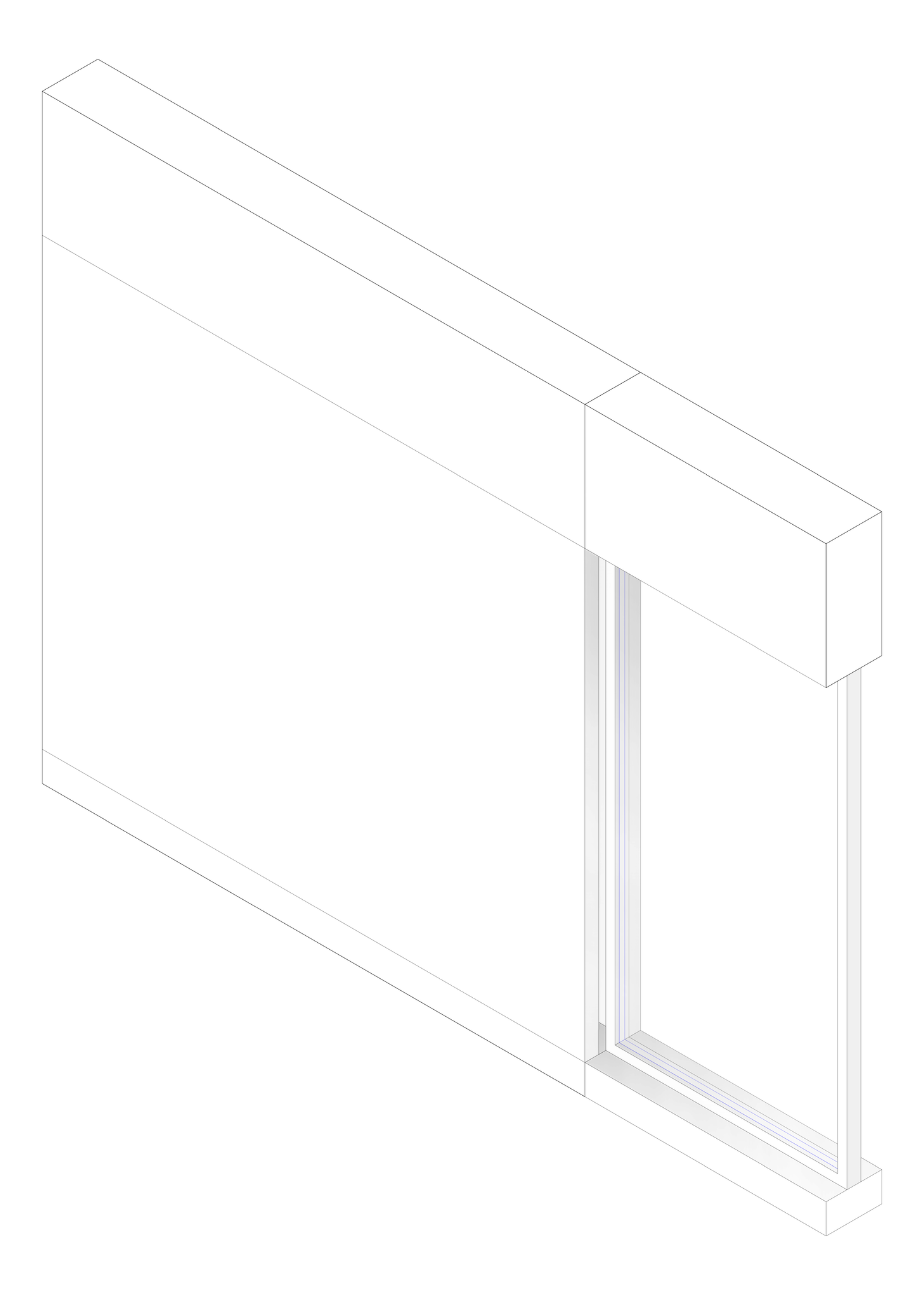

    3D Documentation Image of WALL Assembly Partition TypeB3 3072x4225mm

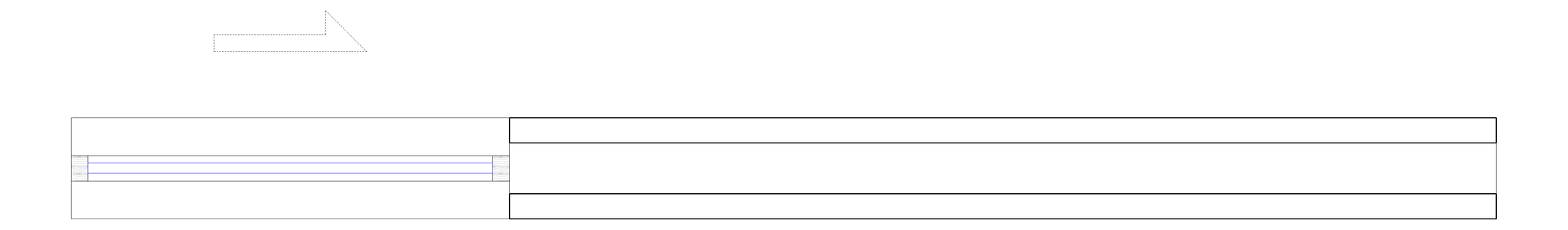

    Plan Image of WALL Assembly Partition TypeB3 3072x4225mm

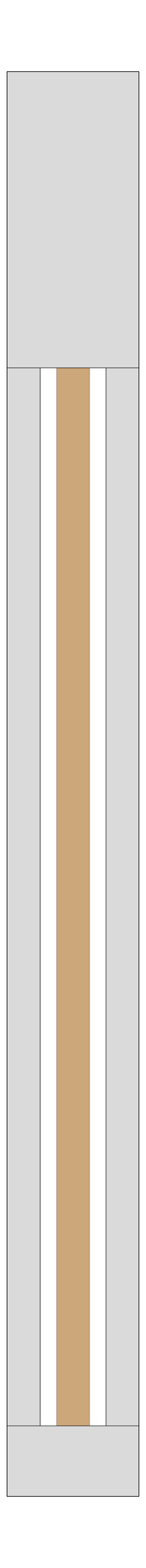

    Left Image of WALL Assembly Partition TypeB3 3072x4225mm

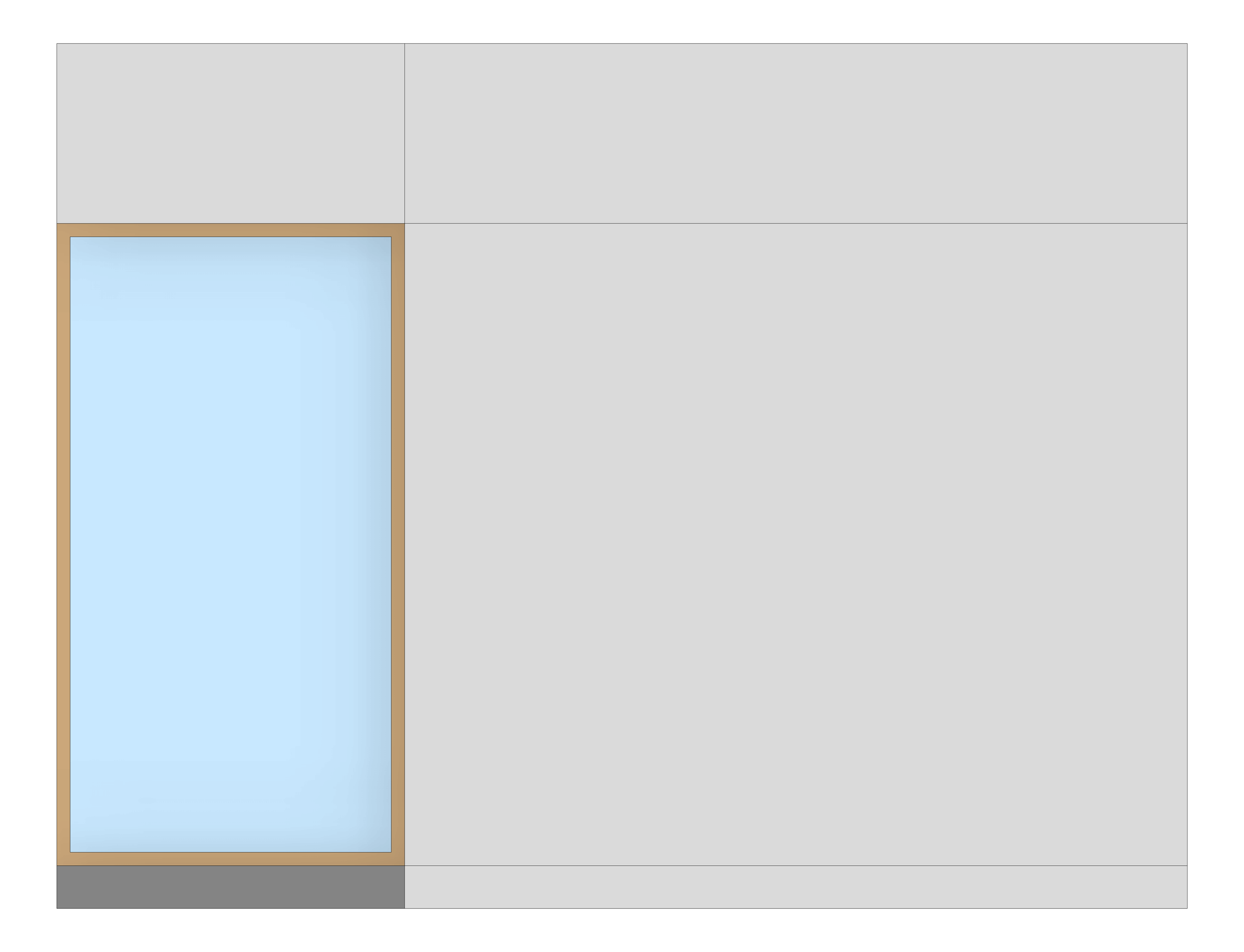

    Front Image of WALL Assembly Partition TypeB3 3072x4225mm

    WALL Assembly Partition TypeB3 3072x4225mm

    KOP-SINSW-ZZ-XX-DR-A-WAPB-003-90

    WALL Assembly Partition TypeB3 3072x4225mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    1.268 sqm
    AreaXZ
    13.655 sqm
    HeightZ
    3232 mm
    LengthX
    4225 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    9050 mm
    PerimeterXZ
    14914 mm
    Volume
    4.097 cum
    WidthY
    300 mm
    Types
