Generic Models
WALL
WALL Assembly Partition TypeB12 3760x9300mm

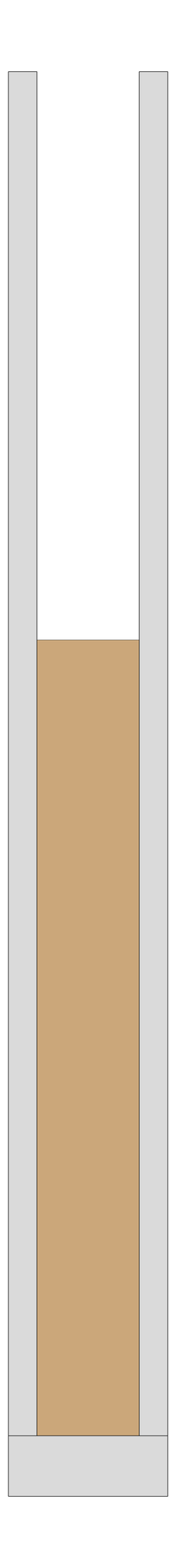

Image of WALL Assembly Partition TypeB12 3760x9300mm

3D Presentation Image of WALL Assembly Partition TypeB12 3760x9300mm

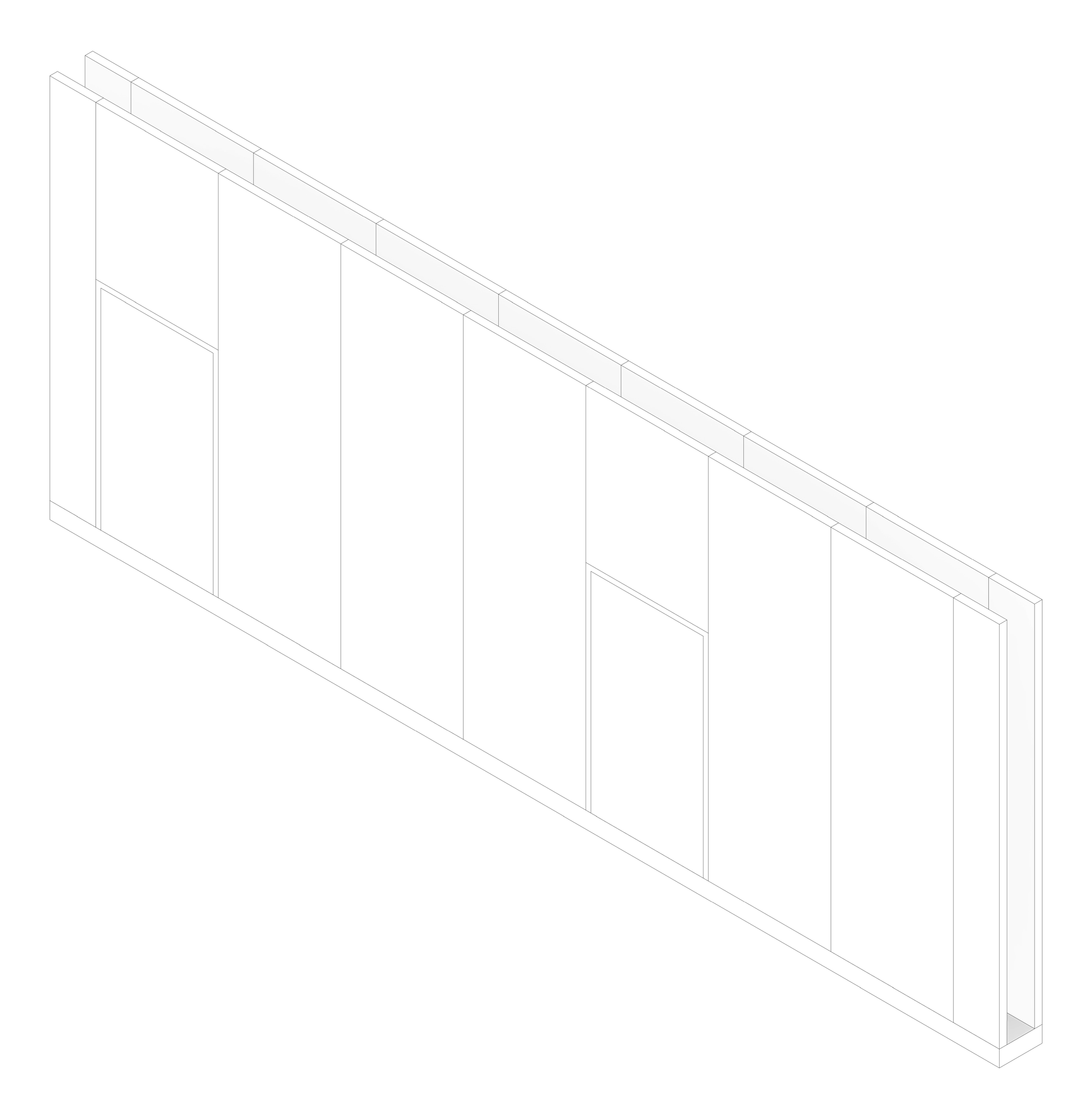

3D Documentation Image of WALL Assembly Partition TypeB12 3760x9300mm

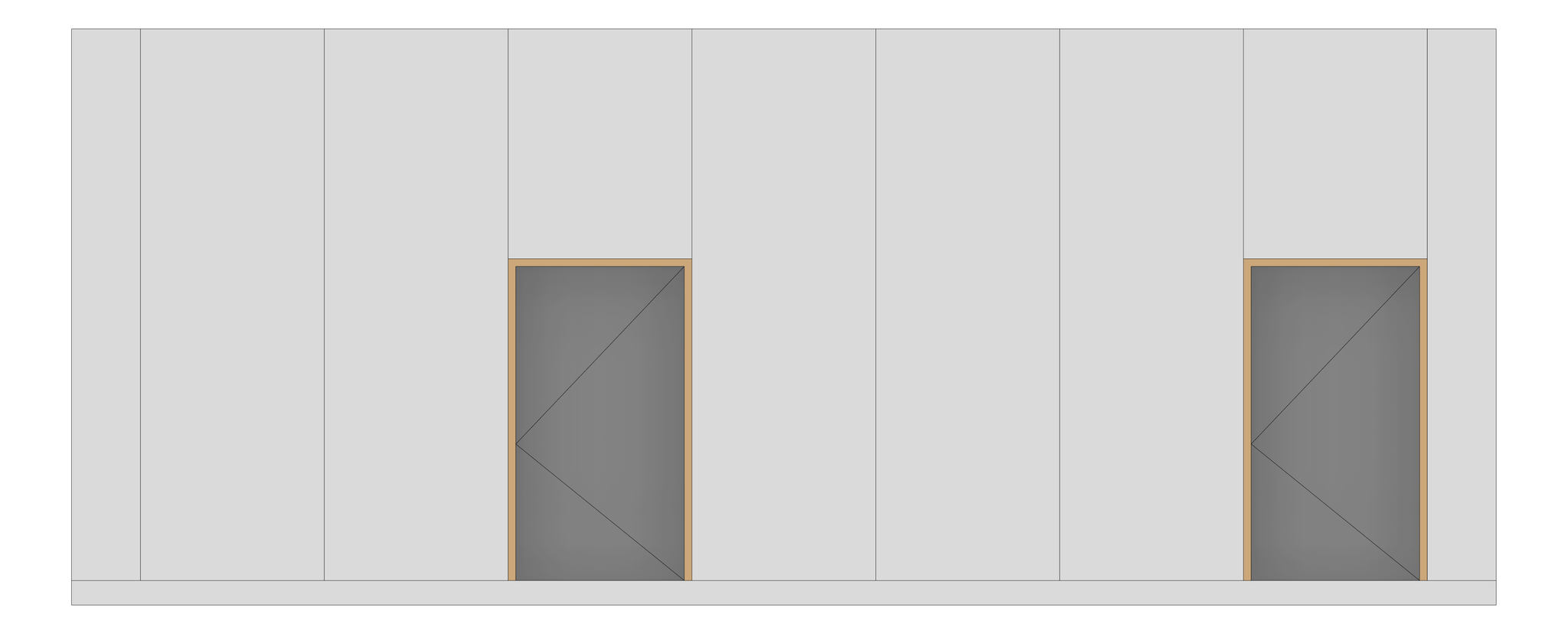

Front Image of WALL Assembly Partition TypeB12 3760x9300mm

WALL Assembly Partition TypeB12 3760x9300mm

WALL Assembly Partition TypeB12 3760x9300mm

For access to the Kit of Parts models, please Contact Us

Advanced Materials

Created By IGS BIM Solutions

Bulk Download Options

AreaXY

3.906 sqm

AreaXZ

34.968 sqm

HeightZ

3760 mm

LengthX

9300 mm

ModifiedIssue

V01.01

PerimeterXY

19440 mm

PerimeterXZ

26120 mm

Volume

14.687 cum

WidthY

420 mm

Types
