Generic Models
WALL
WALL Assembly Partition TypeB10 3072x8600mm

Image of WALL Assembly Partition TypeB10 3072x8600mm

3D Presentation Image of WALL Assembly Partition TypeB10 3072x8600mm

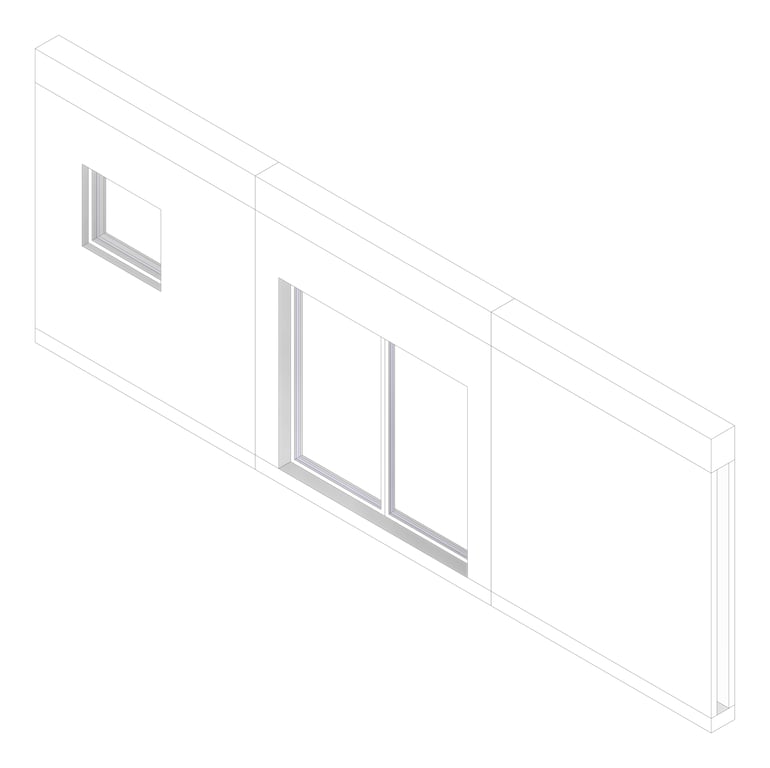

3D Documentation Image of WALL Assembly Partition TypeB10 3072x8600mm

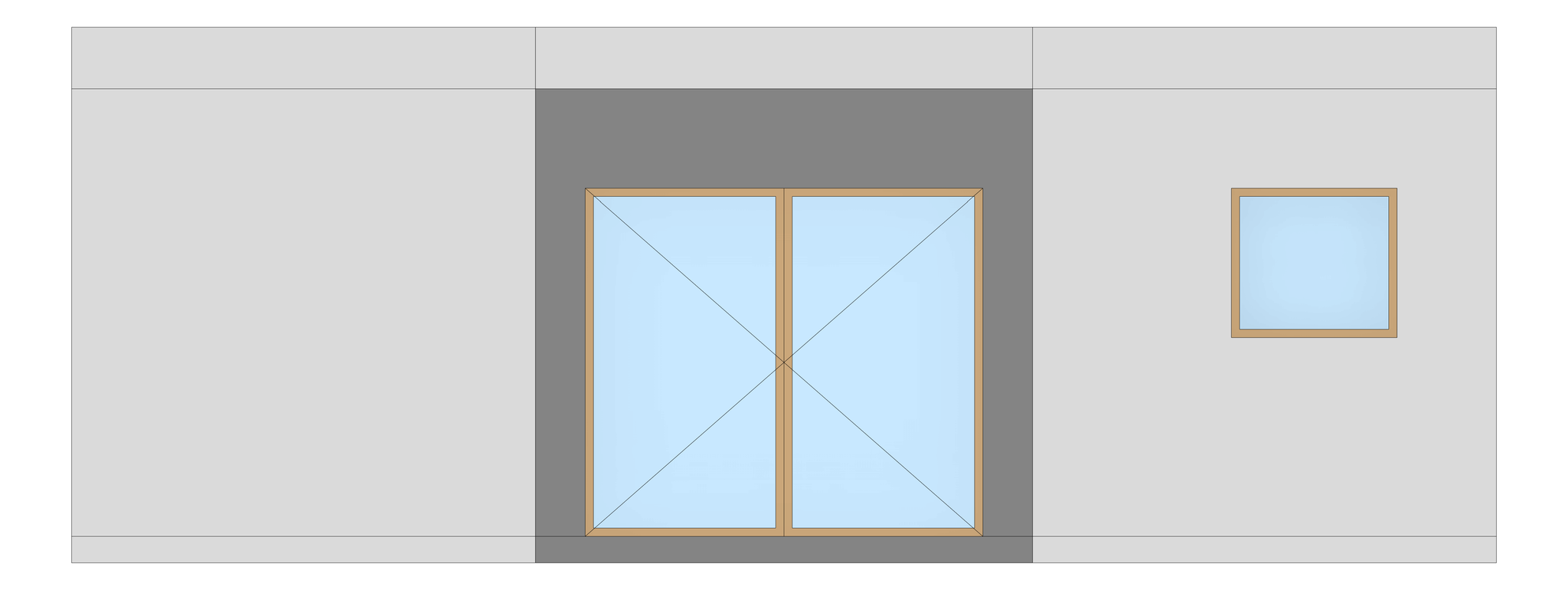

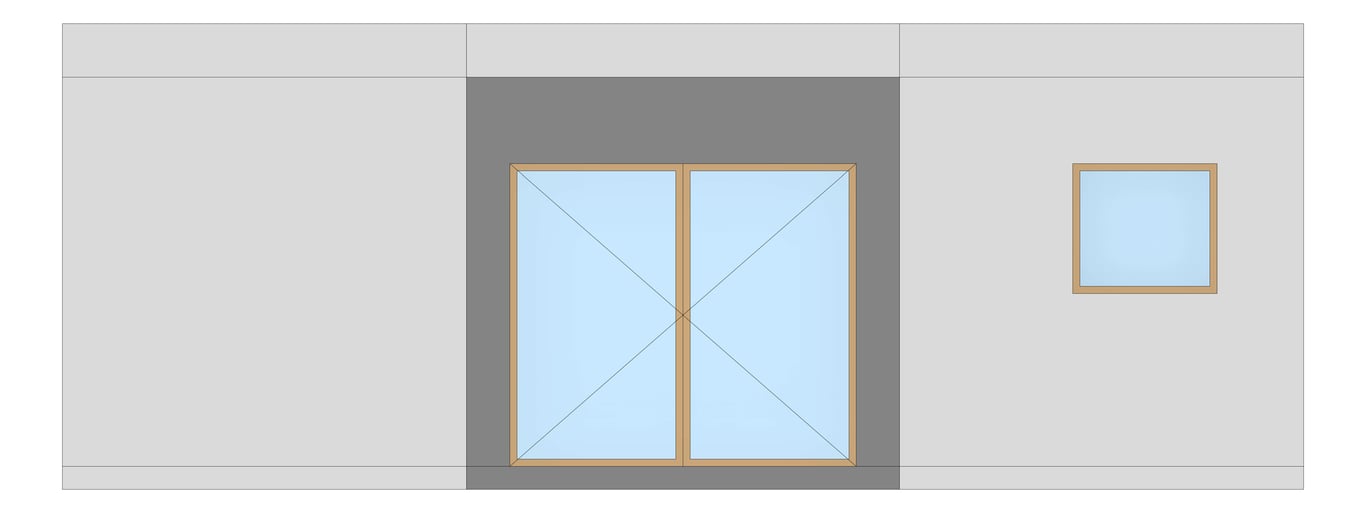

Front Image of WALL Assembly Partition TypeB10 3072x8600mm

WALL Assembly Partition TypeB10 3072x8600mm

WALL Assembly Partition TypeB10 3072x8600mm

For access to the Kit of Parts models, please Contact Us

Advanced Materials

Created By IGS BIM Solutions

Bulk Download Options

AreaXY

2.58 sqm

AreaXZ

27.795 sqm

HeightZ

3232 mm

LengthX

8600 mm

ModifiedIssue

V01.01

PerimeterXY

17800 mm

PerimeterXZ

23664 mm

Volume

8.339 cum

WidthY

300 mm

Types

Connect with the Manufacturer

RESEARCH PRODUCT
