Image of WALL Assembly Partition TypeA4 3760x7080mm
3D Presentation Image of WALL Assembly Partition TypeA4 3760x7080mm

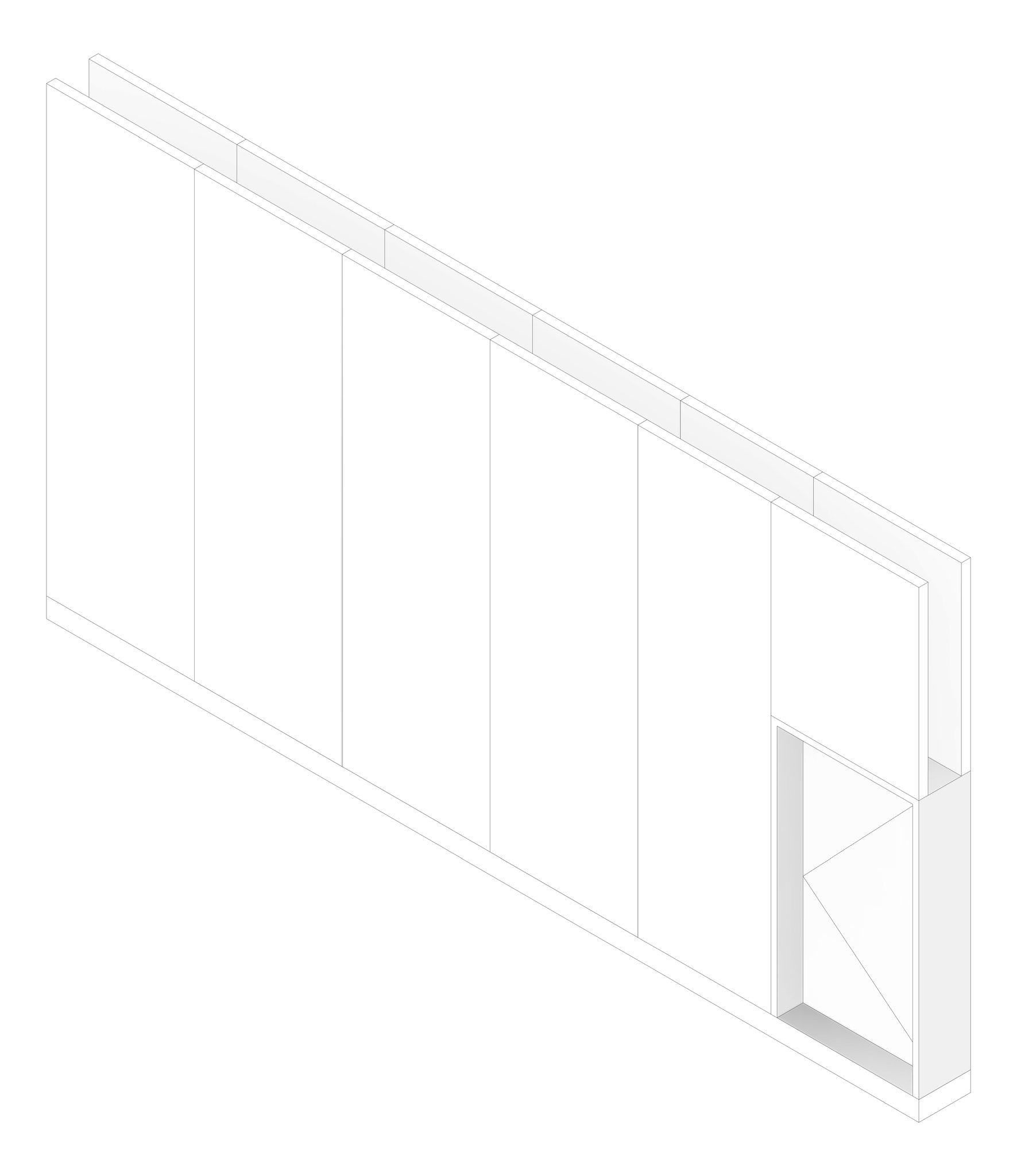

3D Documentation Image of WALL Assembly Partition TypeA4 3760x7080mm

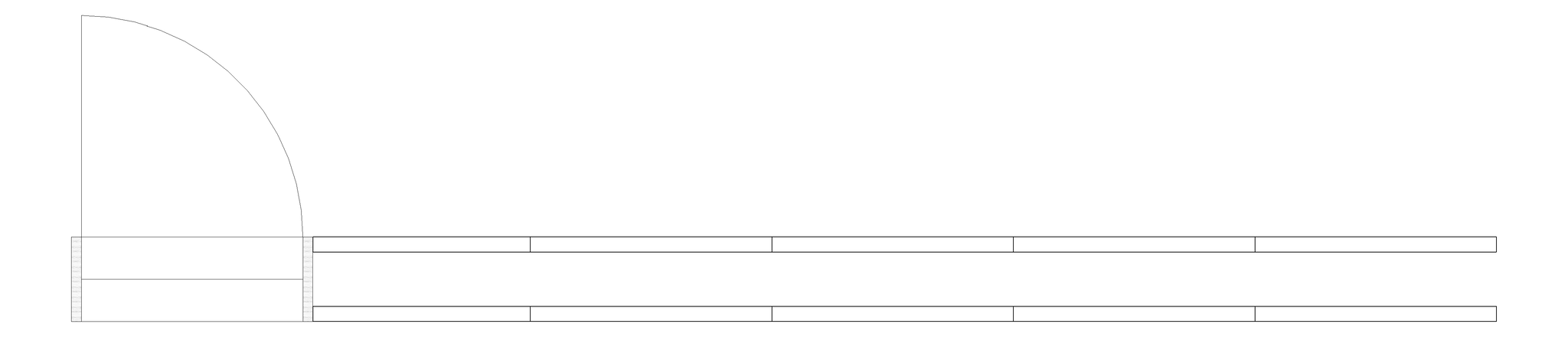

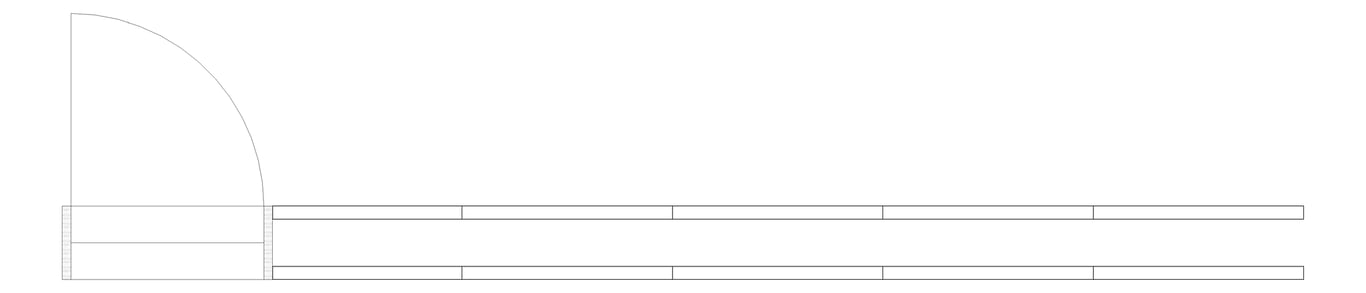

Plan Image of WALL Assembly Partition TypeA4 3760x7080mm

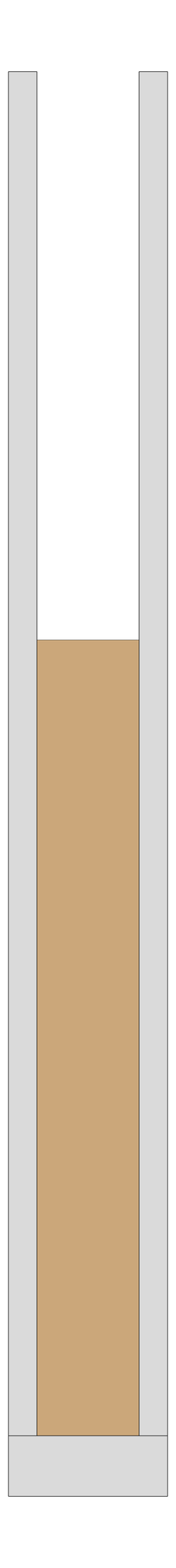

Left Image of WALL Assembly Partition TypeA4 3760x7080mm

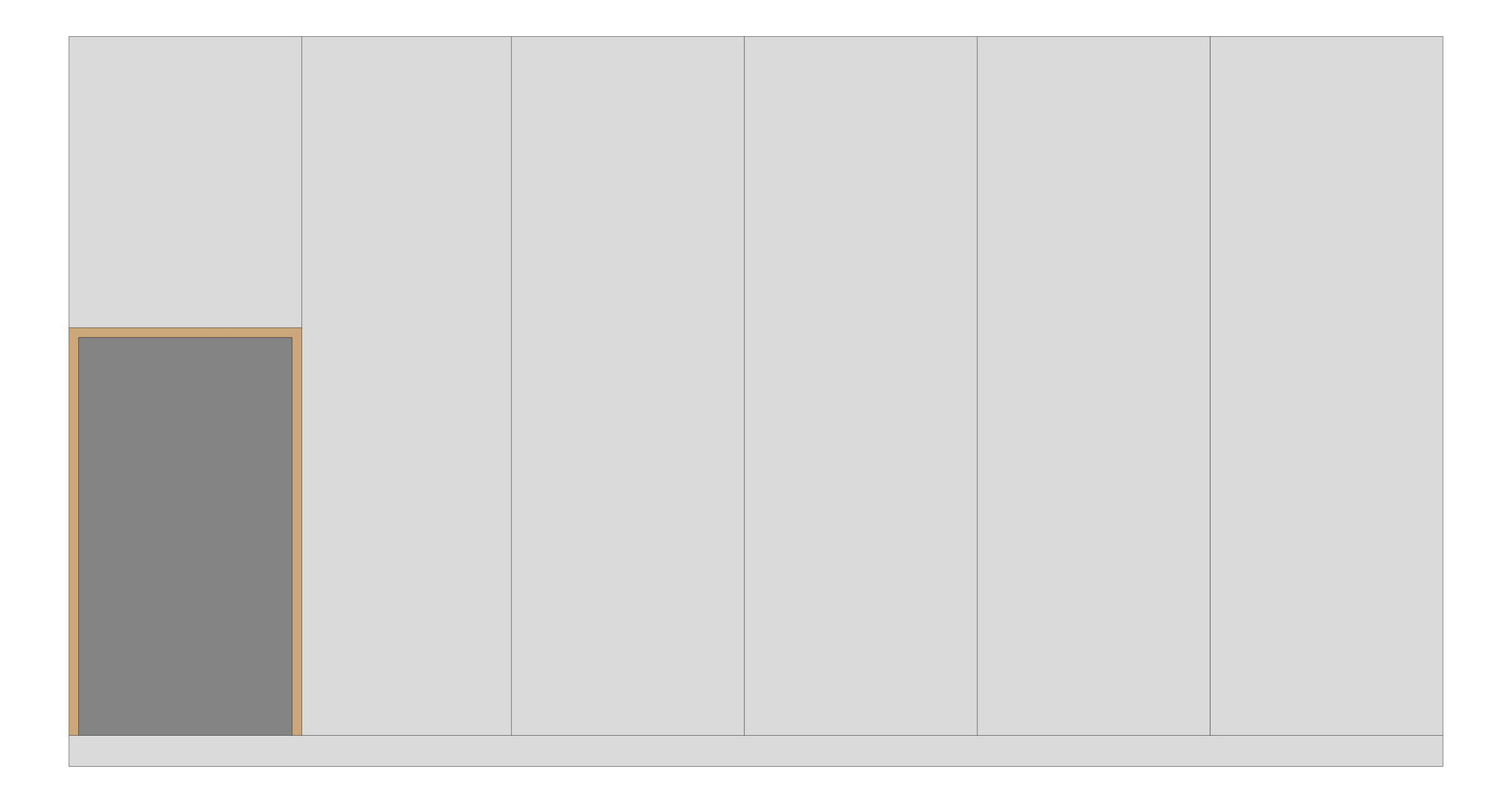

Front Image of WALL Assembly Partition TypeA4 3760x7080mm

WALL Assembly Partition TypeA4 3760x7080mm

WALL Assembly Partition TypeA4 3760x7080mm



For access to the Kit of Parts models, please Contact Us

Advanced Materials
Created By IGS BIM Solutions
Bulk Download Options
AreaXY
2.974 sqm
AreaXZ
26.621 sqm
HeightZ
3760 mm
LengthX
7080 mm
ModifiedIssue
V01.01
PerimeterXY
15000 mm
PerimeterXZ
21680 mm
Volume
11.181 cum
WidthY
420 mm
Types
