WALL
WALL Assembly Partition TypeA3 3760x7080mm

Image of WALL Assembly Partition TypeA3 3760x7080mm

3D Presentation Image of WALL Assembly Partition TypeA3 3760x7080mm

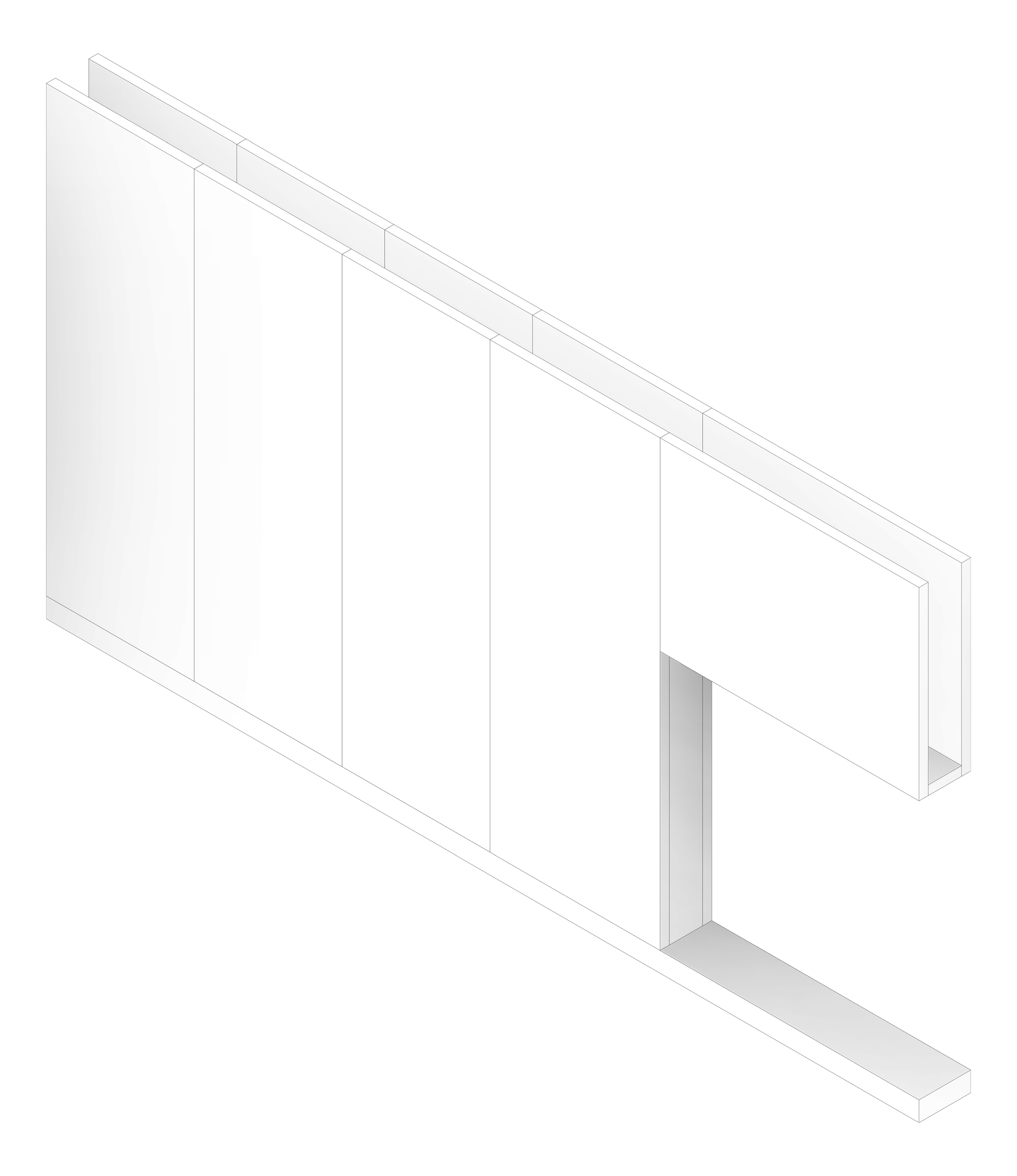

3D Documentation Image of WALL Assembly Partition TypeA3 3760x7080mm

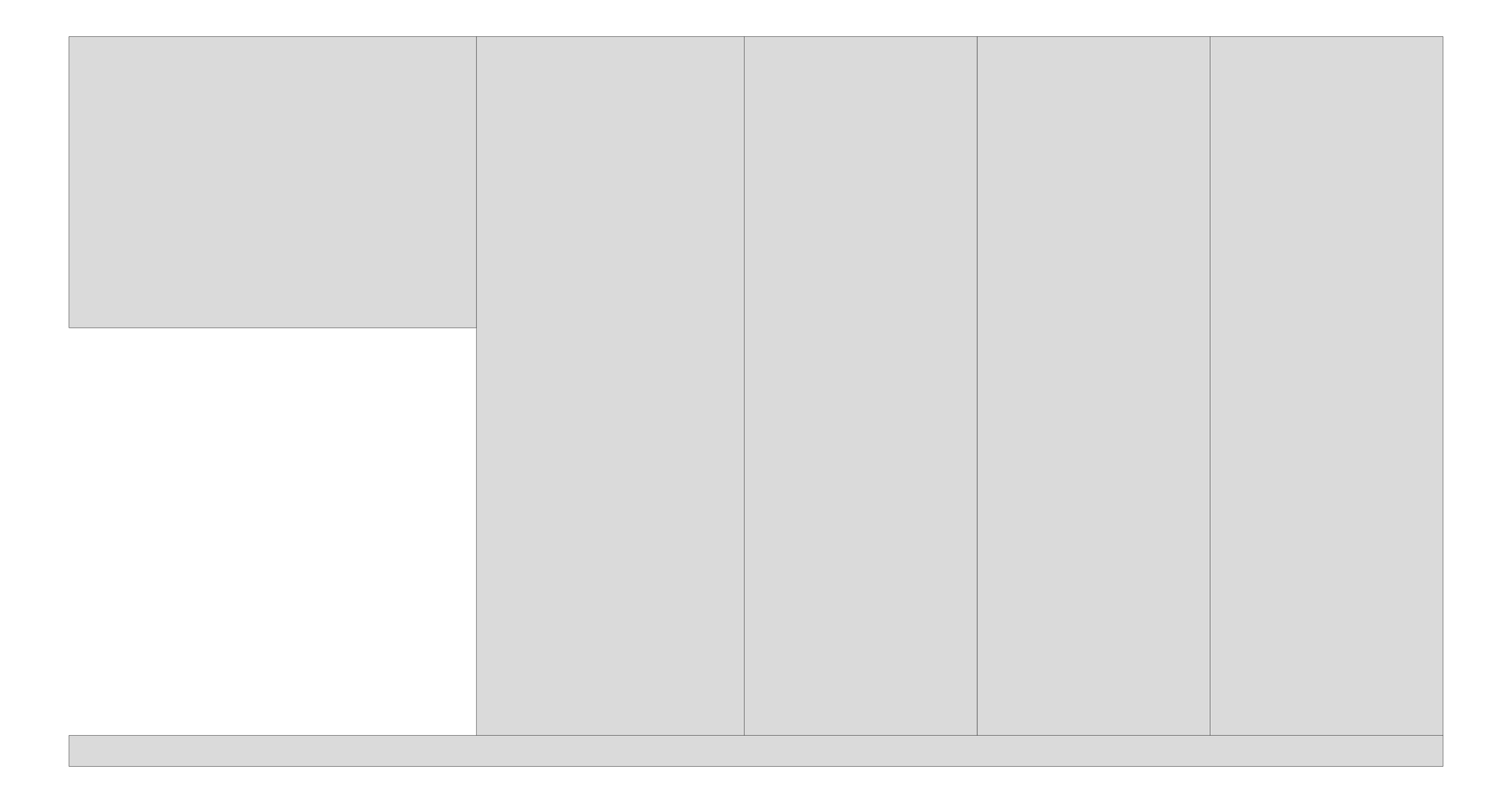

Front Image of WALL Assembly Partition TypeA3 3760x7080mm

WALL Assembly Partition TypeA3 3760x7080mm

WALL Assembly Partition TypeA3 3760x7080mm

For access to the Kit of Parts models, please Contact Us

Advanced Materials

Created By IGS BIM Solutions

Bulk Download Options

AreaXY

2.974 sqm

AreaXZ

26.621 sqm

HeightZ

3760 mm

LengthX

7080 mm

ModifiedIssue

V01.01

PerimeterXY

15000 mm

PerimeterXZ

21680 mm

Volume

11.181 cum

WidthY

420 mm

Types
