Image of WALL Assembly Partition TypeA1 3146x7100mm

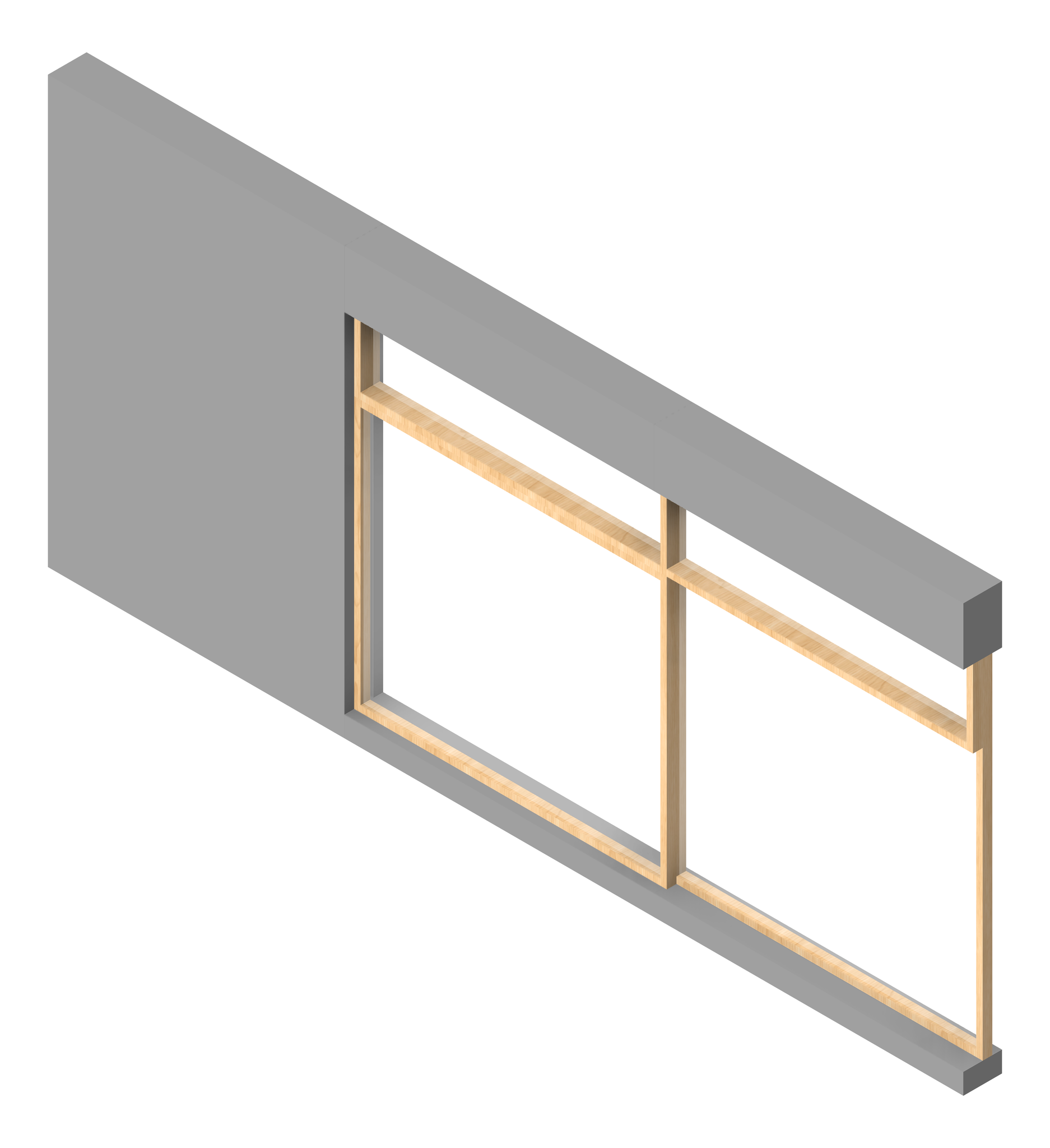

3D Presentation Image of WALL Assembly Partition TypeA1 3146x7100mm

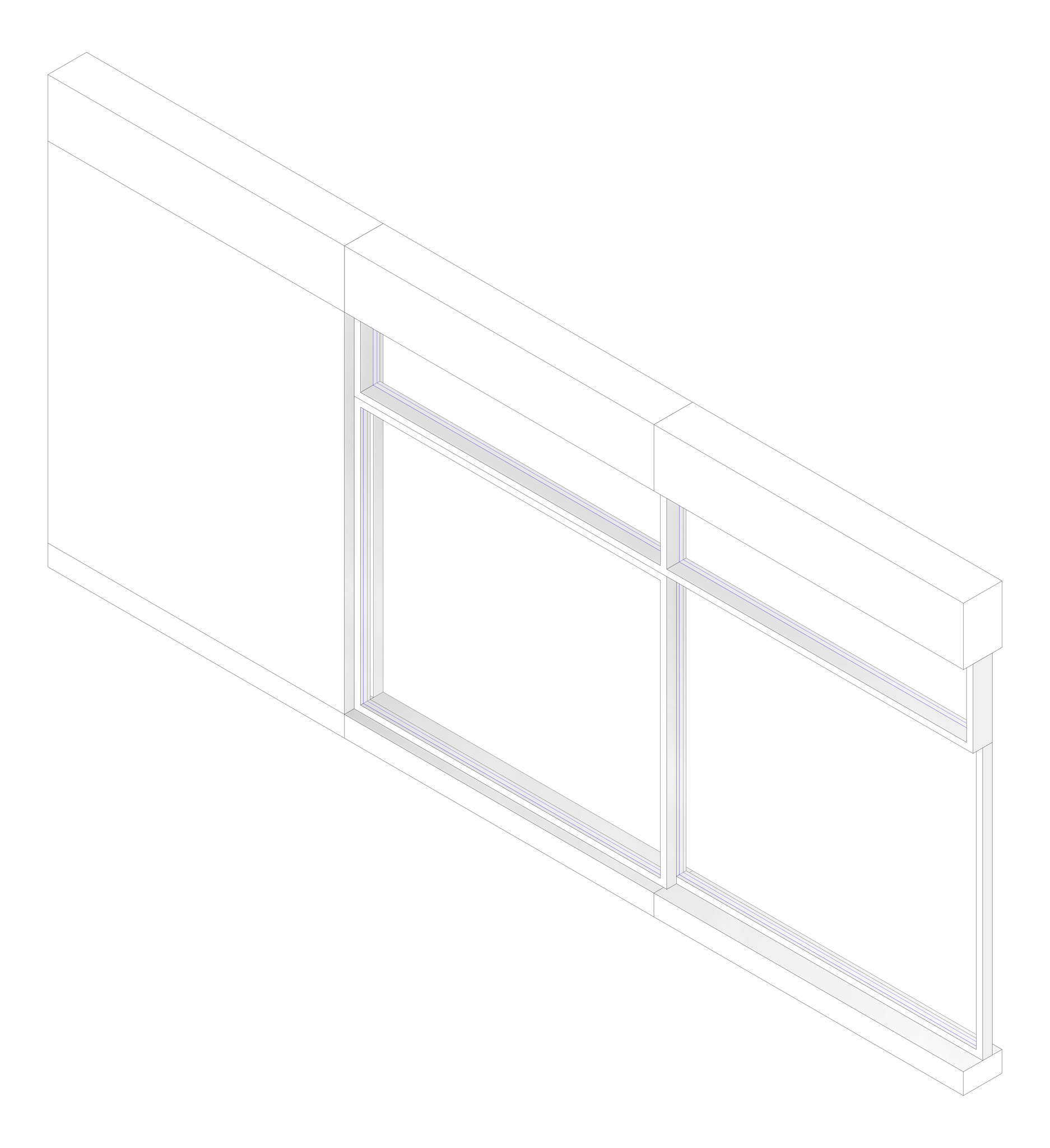

3D Documentation Image of WALL Assembly Partition TypeA1 3146x7100mm

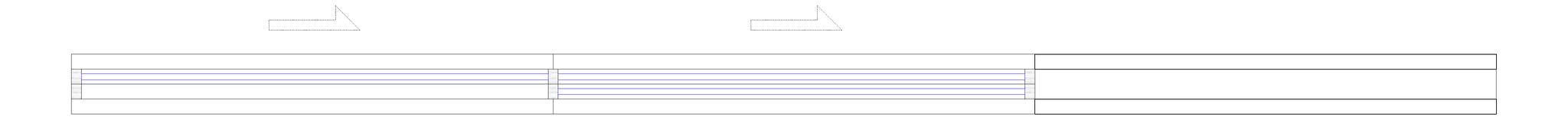

Plan Image of WALL Assembly Partition TypeA1 3146x7100mm

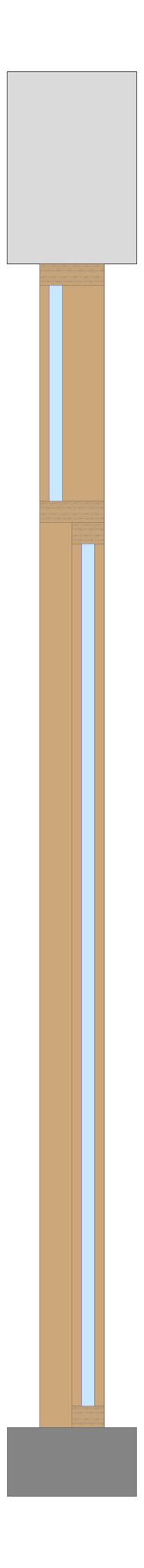

Left Image of WALL Assembly Partition TypeA1 3146x7100mm

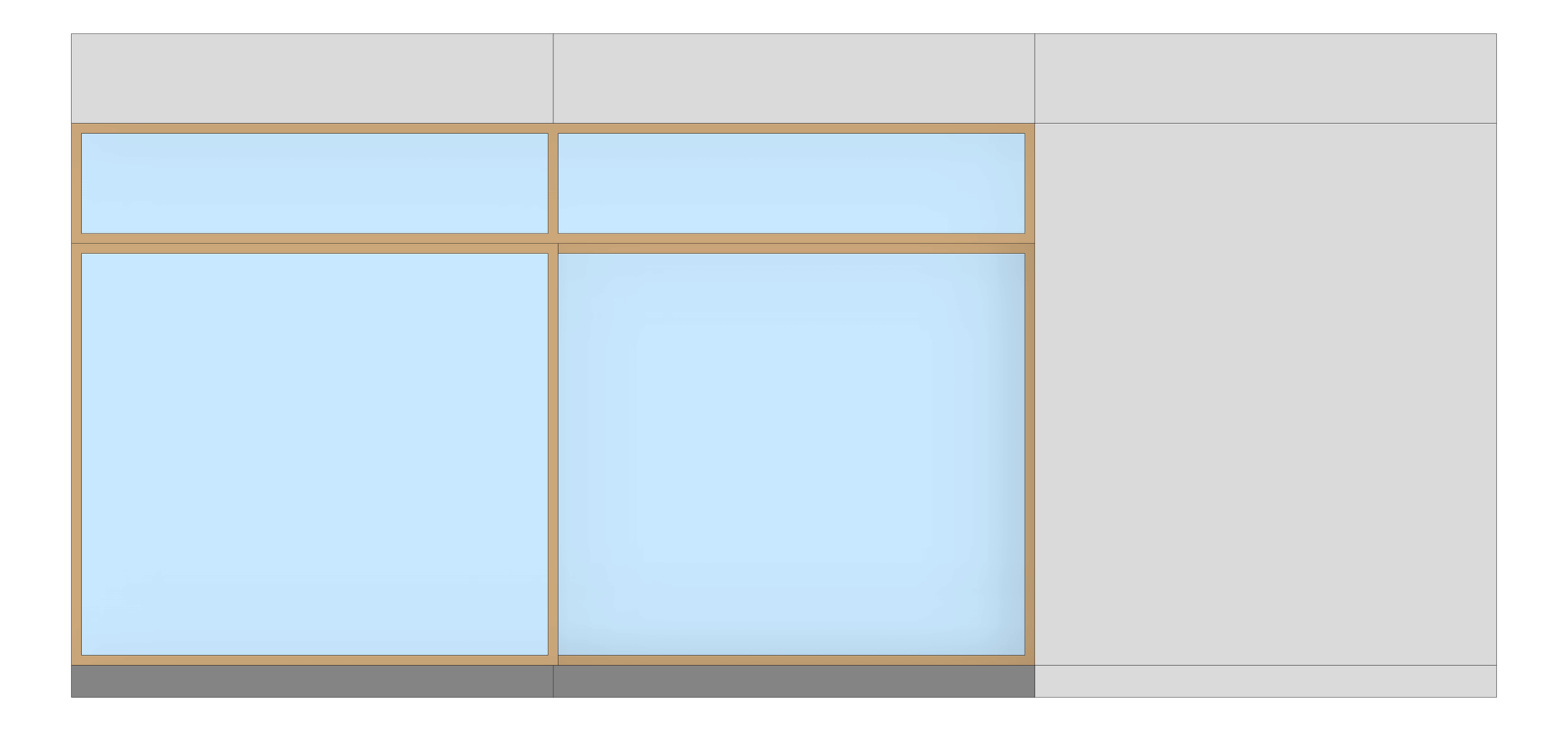

Front Image of WALL Assembly Partition TypeA1 3146x7100mm

WALL Assembly Partition TypeA1 3146x7100mm

WALL Assembly Partition TypeA1 3146x7100mm



For access to the Kit of Parts models, please Contact Us

Advanced Materials
Created By IGS BIM Solutions
Bulk Download Options
AreaXY
2.13 sqm
AreaXZ
23.473 sqm
HeightZ
3306 mm
LengthX
7100 mm
ModifiedIssue
V01.01
PerimeterXY
14800 mm
PerimeterXZ
20812 mm
Volume
7.042 cum
WidthY
300 mm
Types
