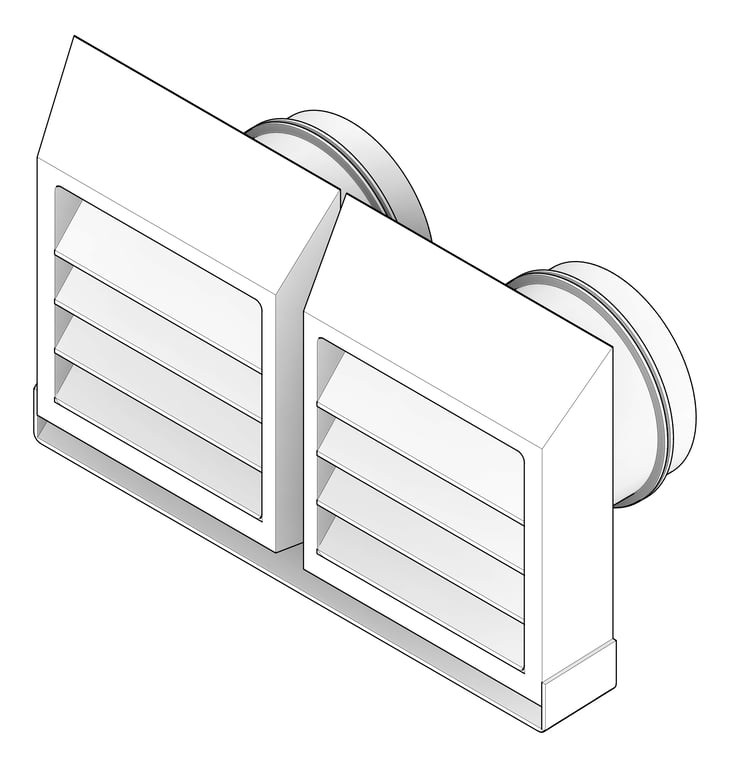

3D Documentation Image of Ventilation AirGrille StiebelEltron Exhaust

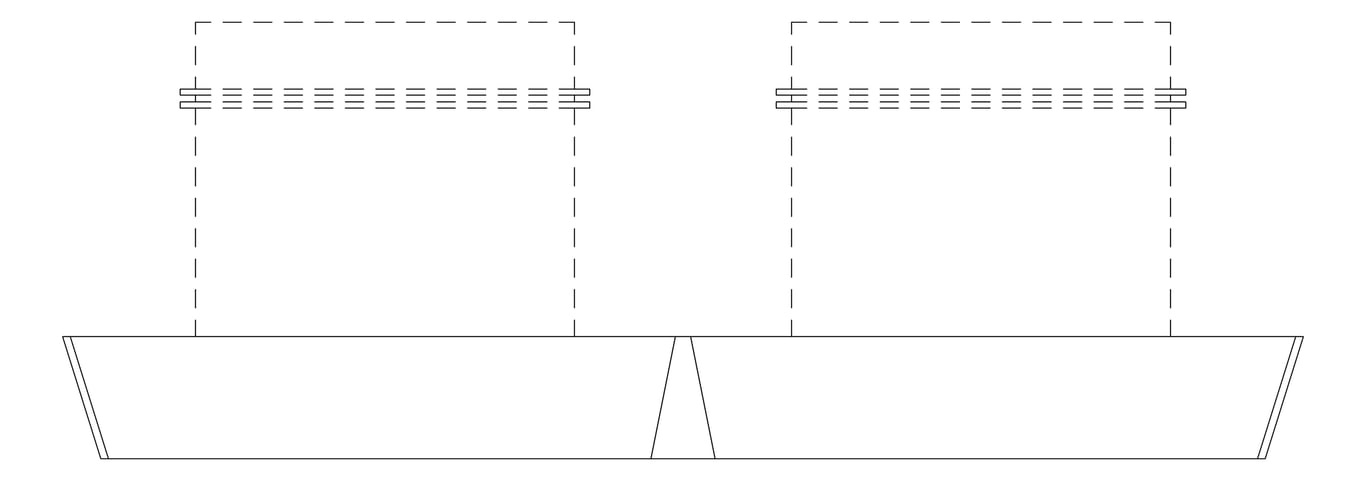

Plan Image of Ventilation AirGrille StiebelEltron Exhaust

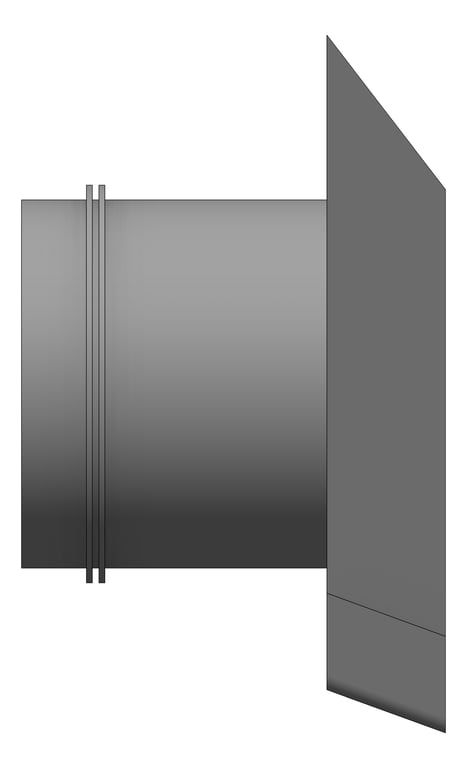

Left Image of Ventilation AirGrille StiebelEltron Exhaust

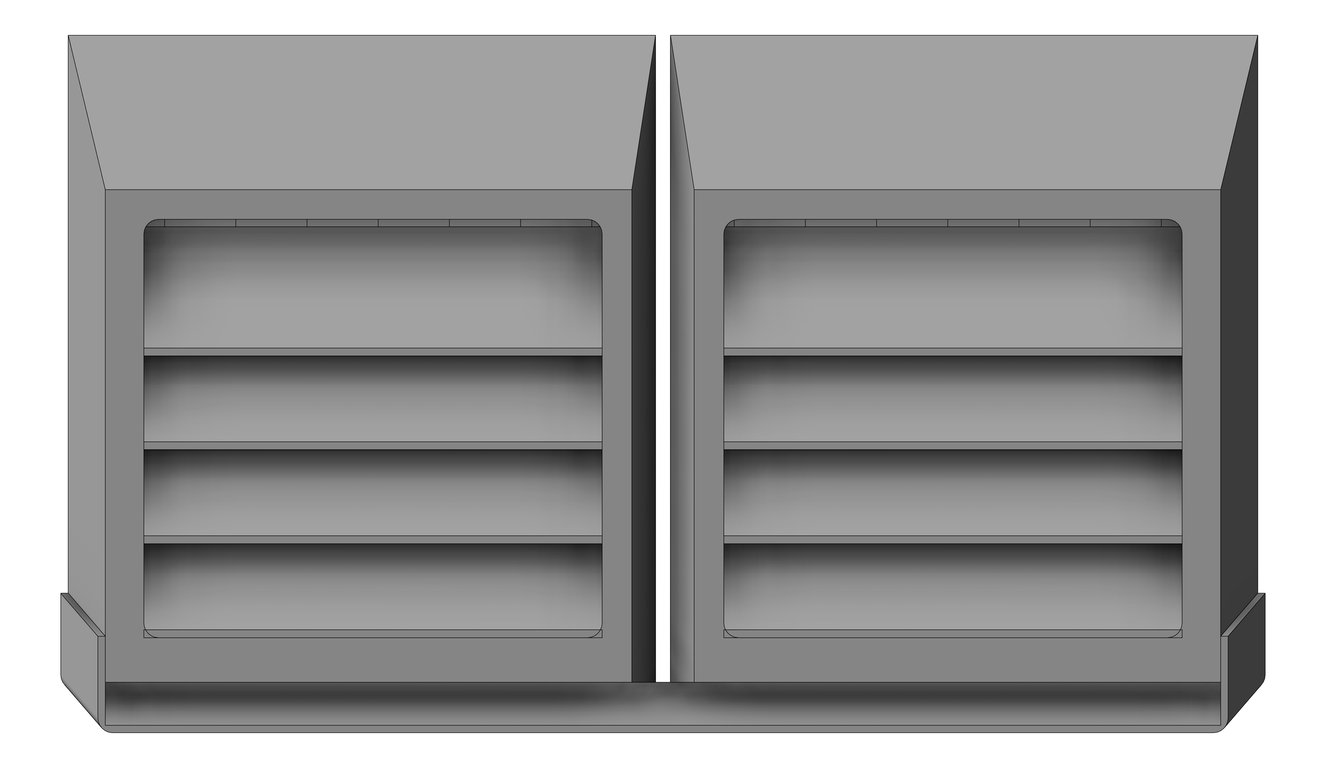

Front Image of Ventilation AirGrille StiebelEltron Exhaust

Ventilation AirGrille StiebelEltron Exhaust

The combined intake/discharge grille for the outdoor air and exhaust air ducting of central ventilation units with heat recovery is mounted on the external wall. The connections for exhaust air and outdoor air are arranged next to each other.
highlight_alt
Clearance / Required Space Zones
Created By IGS BIM Solutions
remove_red_eye
Virtual Showroom Available
Manufacturer
Model
KWG 125, KWG 160
ModifiedIssue
20240429.00
Types
