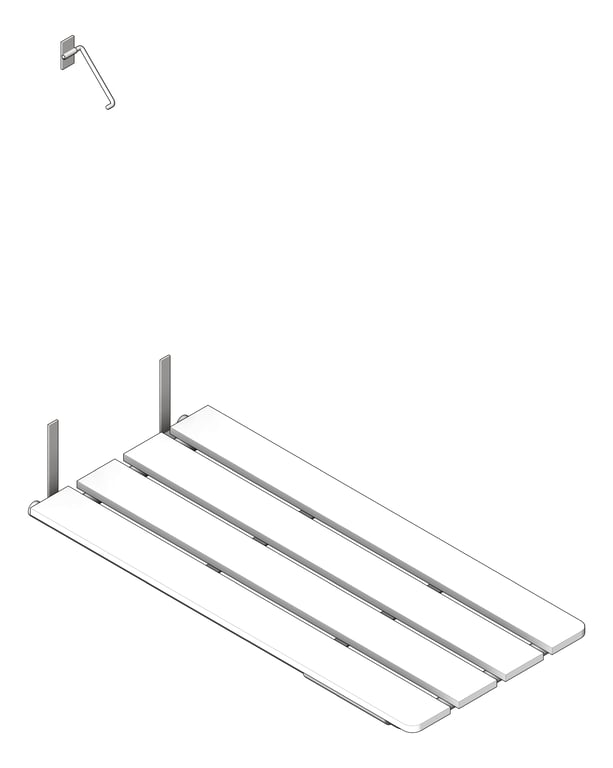

Image of TubSeat Folding ASI Phenolic

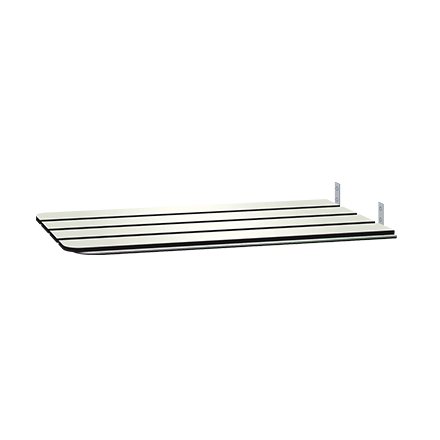

3D Shaded Image of TubSeat Folding ASI Phenolic

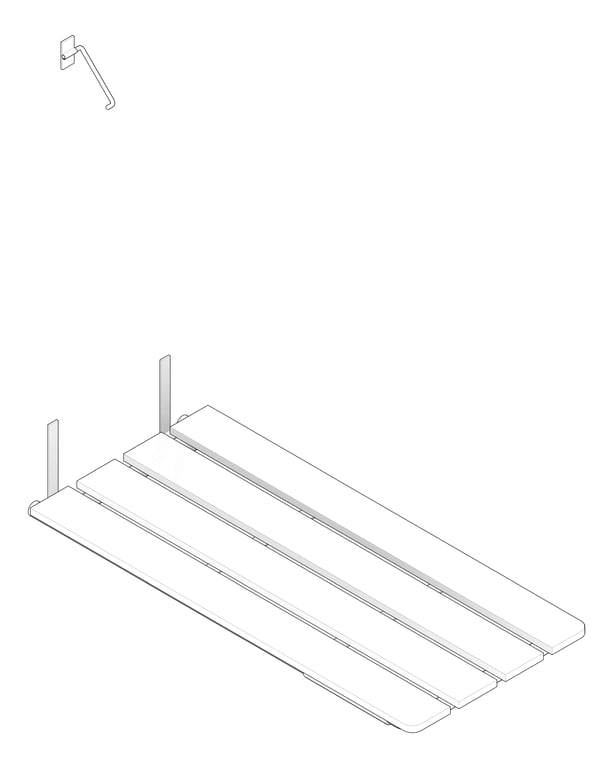

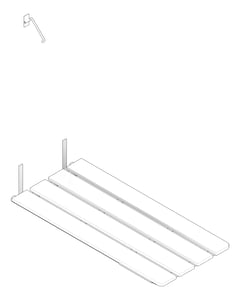

3D Documentation Image of TubSeat Folding ASI Phenolic

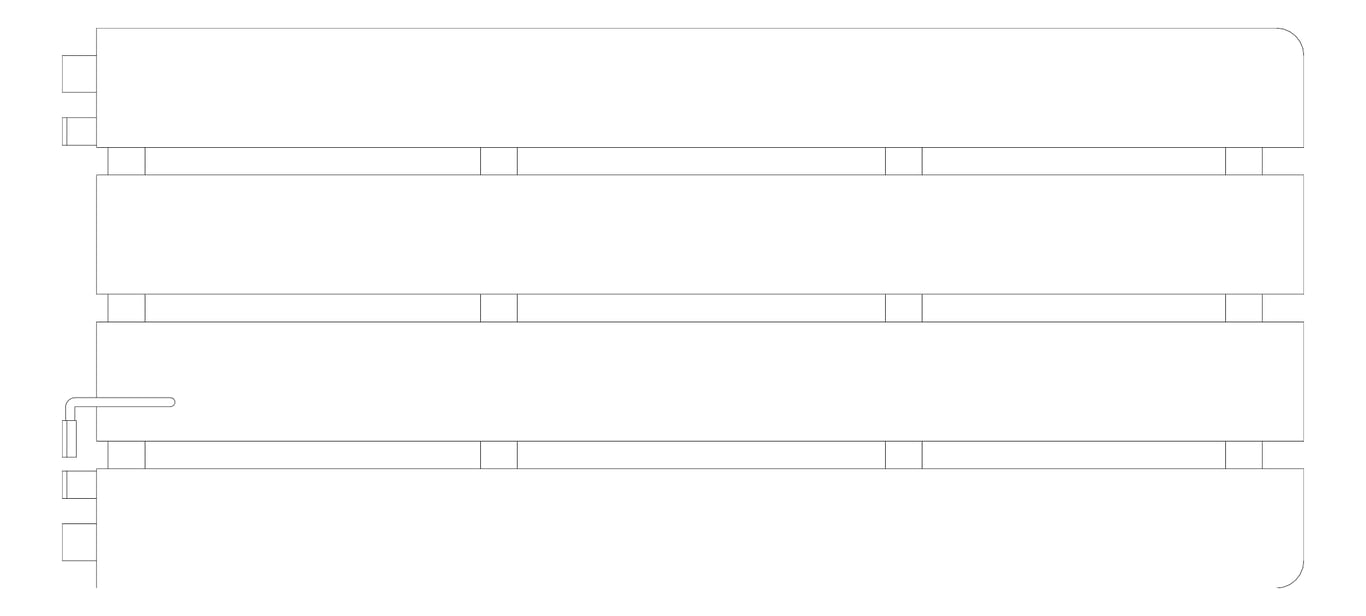

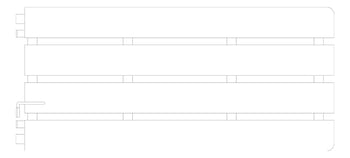

Plan Image of TubSeat Folding ASI Phenolic

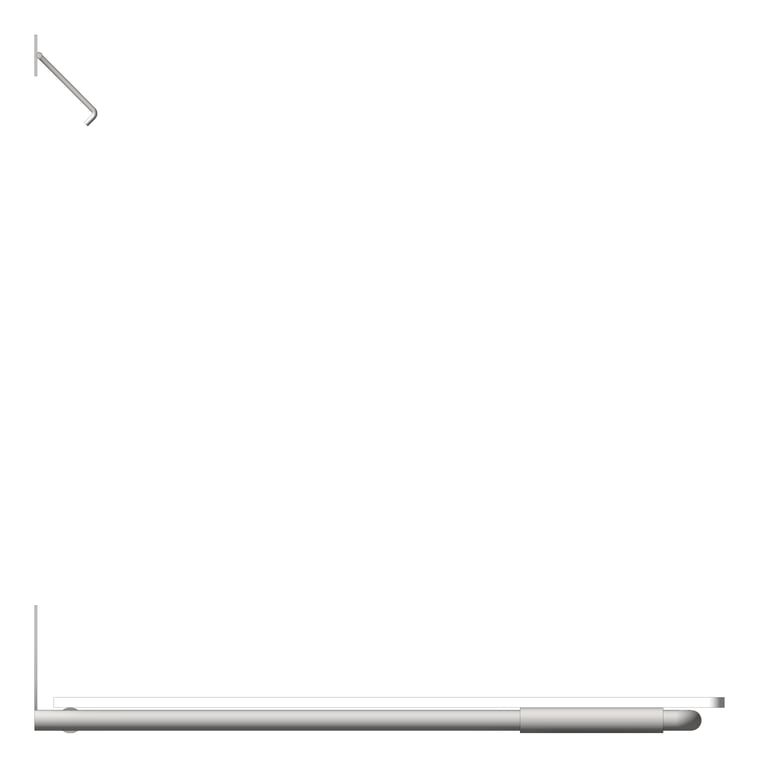

Left Image of TubSeat Folding ASI Phenolic

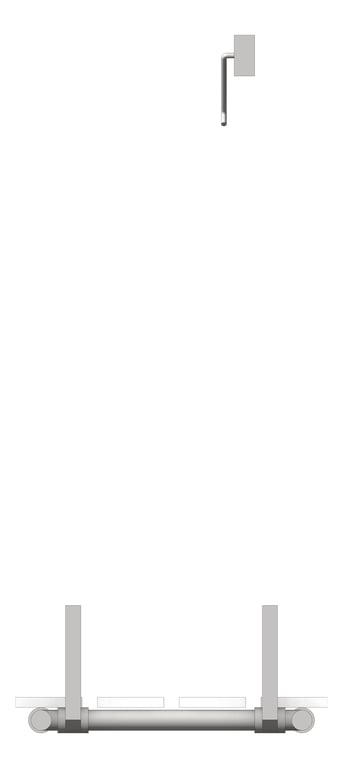

Front Image of TubSeat Folding ASI Phenolic
8358_ASI-FoldingTubSeat@2x.png Image of TubSeat Folding ASI Phenolic

TubSeat Folding ASI Phenolic

1/2″ (13 mm) thick, solid, white colored, black core phenolic seat. Frame, mounting bracket and retainer hook are type 304 satin finished stainless steel. Requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Retainer bracket with heavy wire detent prevents seat from dropping. Seat measures 15″ (387 mm) wide and projects 33-3/4″ (860 mm) from wall.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
33 3/4"
Depth
15 1/4"
Height
34"
Model
8358
Type Comments
Tub Seat - Phenolic
