Image of ToiletRollHolder Recessed ASIJDMacDonald Single

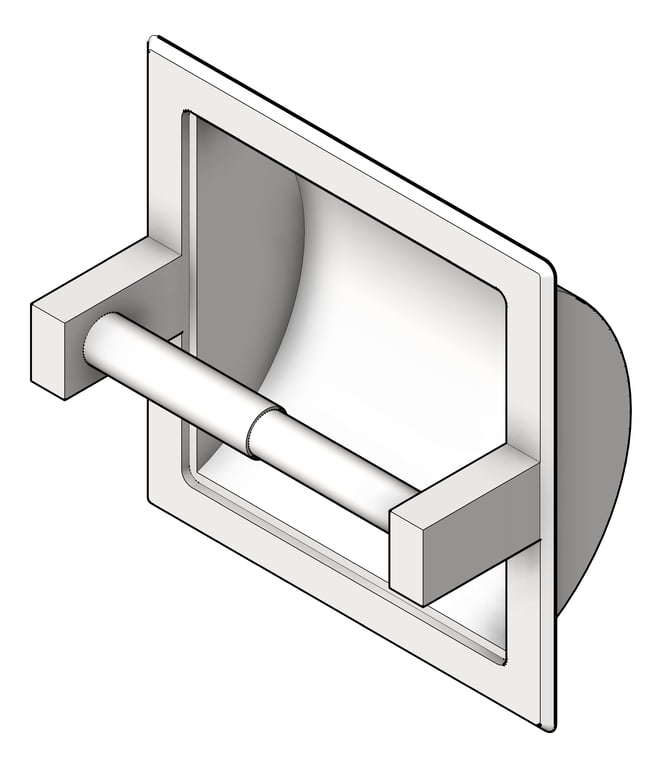

3D Shaded Image of ToiletRollHolder Recessed ASIJDMacDonald Single

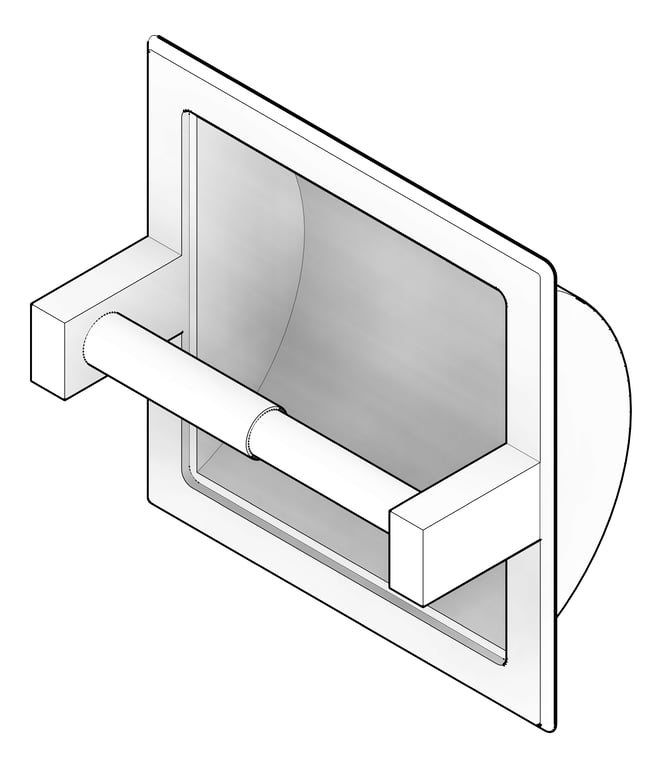

3D Documentation Image of ToiletRollHolder Recessed ASIJDMacDonald Single

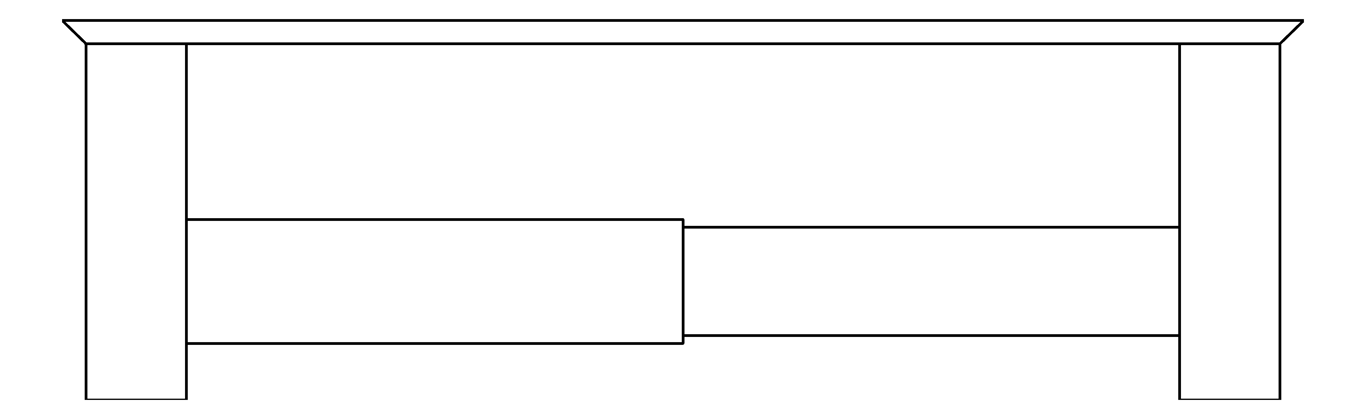

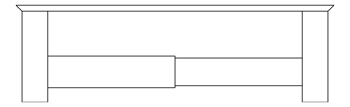

Plan Image of ToiletRollHolder Recessed ASIJDMacDonald Single

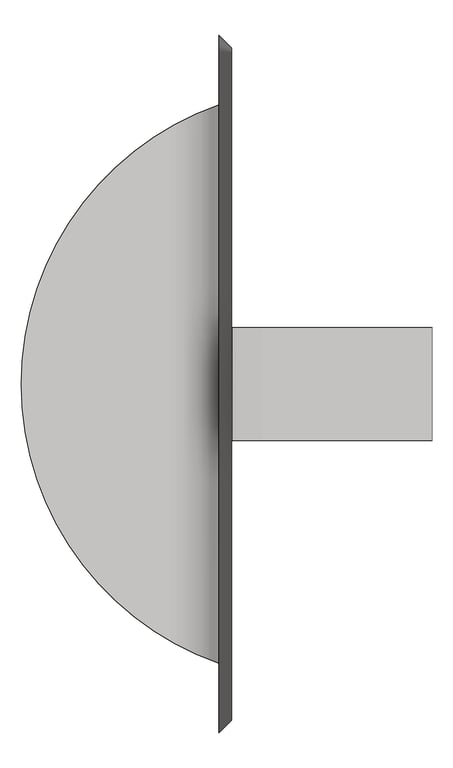

Left Image of ToiletRollHolder Recessed ASIJDMacDonald Single

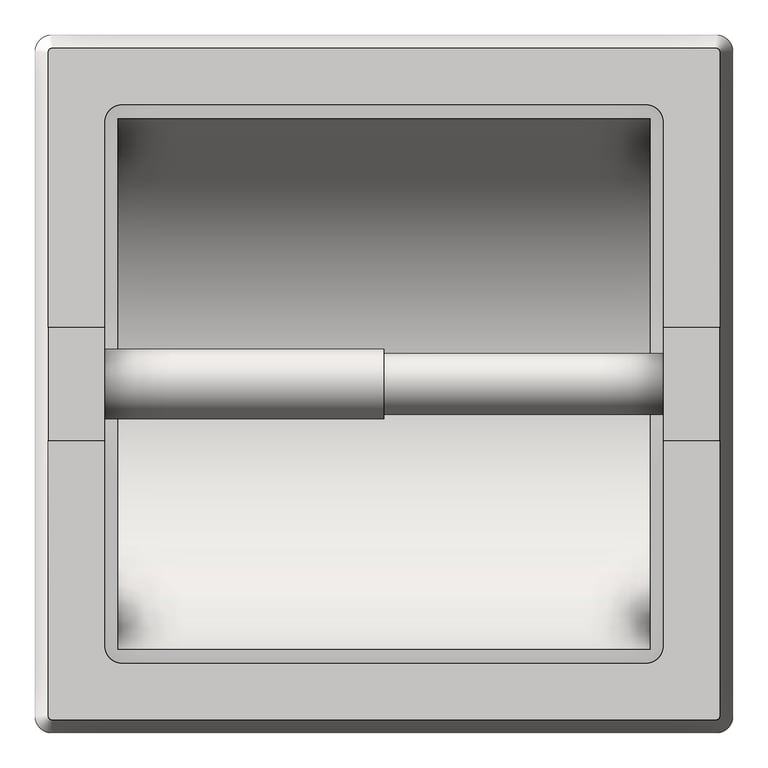

Front Image of ToiletRollHolder Recessed ASIJDMacDonald Single

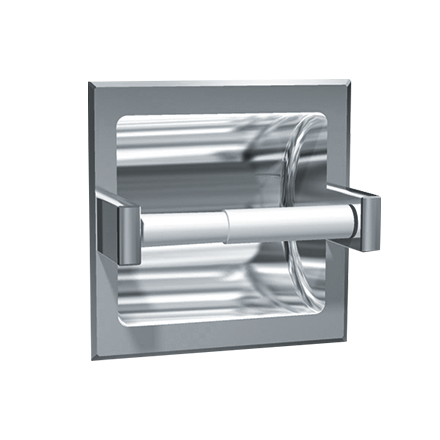

10-7402_ASIJDMacDonald_Toilet_Roll_Holder_Web.png Image of ToiletRollHolder Recessed ASIJDMacDonald Single

ToiletRollHolder Recessed ASIJDMacDonald Single

Recessed Toilet Paper Holder holds and dispenses all standard core roll tissue up to 152 mm diameter roll. Fabricated of stainless steel type 304 alloy 18-8. Roller is chrome plated high impact resistant ABS plastic and spring-loaded.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
97 mm
Height
160 mm
Width
160 mm
Model
10-7402-BD|10-7402-SD|10-7402-HBD|10-7402-HSD
ModifiedIssue
20221201.00
Types
4
