Image of ToddlerSeat SurfaceMount ASIJDMacDonald

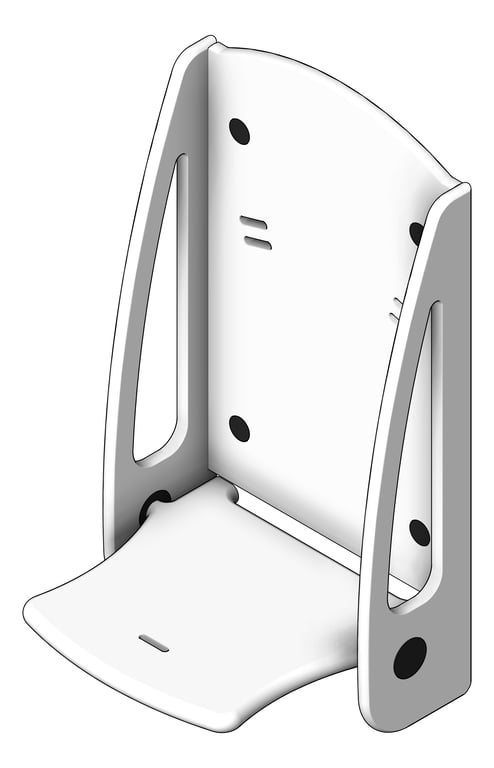

3D Shaded Image of ToddlerSeat SurfaceMount ASIJDMacDonald

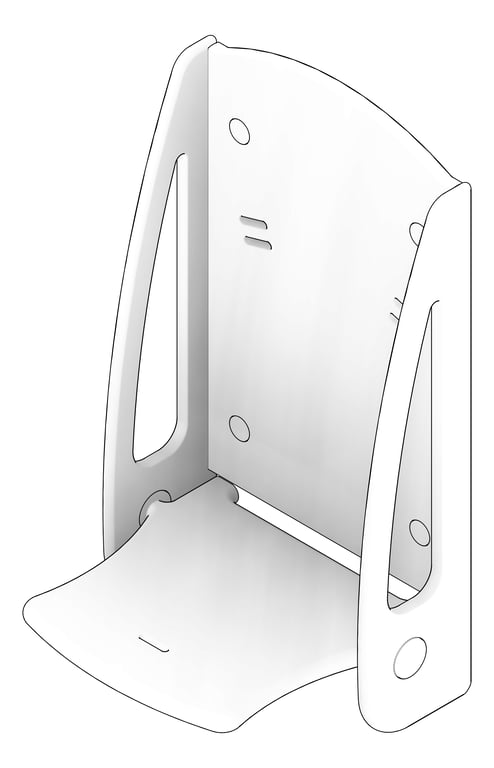

3D Documentation Image of ToddlerSeat SurfaceMount ASIJDMacDonald

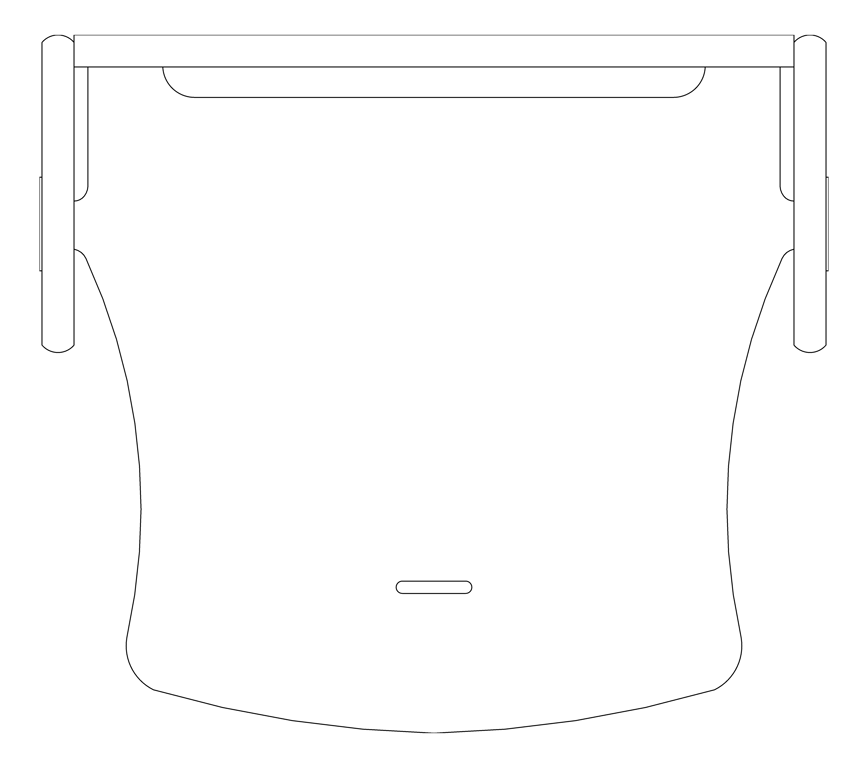

Plan Image of ToddlerSeat SurfaceMount ASIJDMacDonald

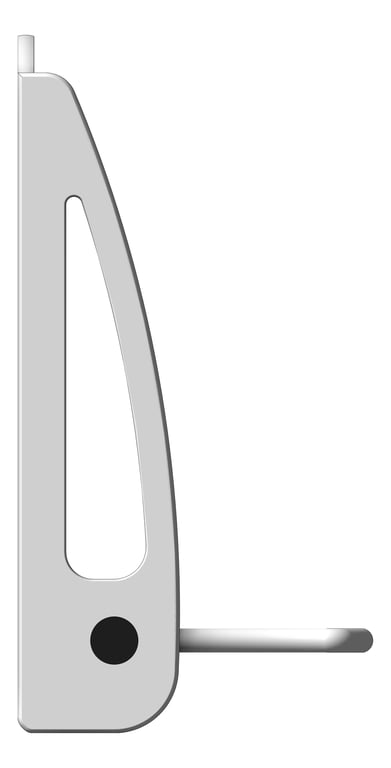

Left Image of ToddlerSeat SurfaceMount ASIJDMacDonald

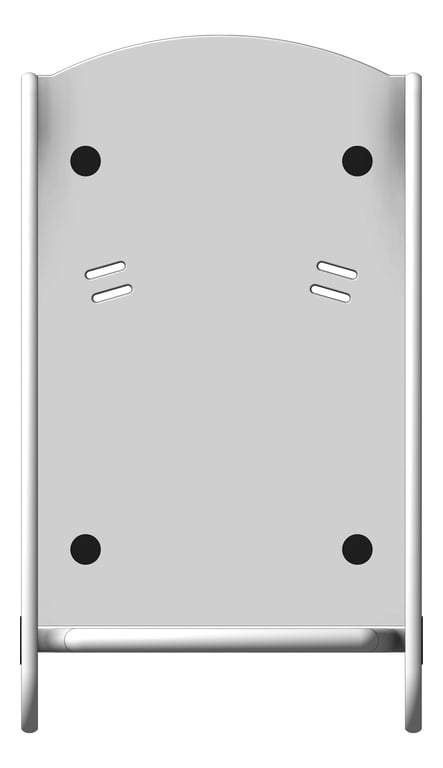

Front Image of ToddlerSeat SurfaceMount ASIJDMacDonald

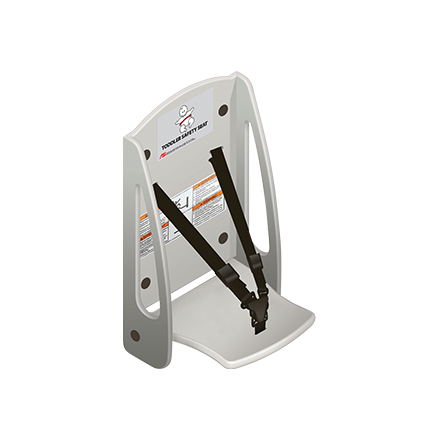

10-9020_ASIJDMacDonald_Toddler_Safety_Seat_Web.png Image of ToddlerSeat SurfaceMount ASIJDMacDonald

ToddlerSeat SurfaceMount ASIJDMacDonald

This plastic seat, mounted on the inside of the toilet partition, either on the door or panel, allows a parent to take a toddler into the stall with them. Unit supports a static load of 23 kg. Open unit folds to 140mm when seat is manually lifted to close for storage, and requires less than 1765 cm² of wall space either open or closed. High-density polyethylene is easy to clean and resists fungal and bacterial growth. Unit is operable with one hand with less than 2.3kg (22.2N) of force while not requiring any tight grasping, pinching, or twisting of the wrist. Safety harness is easily adjustable by user for any baby size and latch securely resists opening until released by opposing finger pressure by adult caretaker/parent. Each side shoulder strap is independently attached to the belt clasp to avail user of simple and secure engagement without having to lift a loop strap over the baby’s head. User should always attend baby at all times.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
283 mm
Height
552 mm
Width
318 mm
Model
10-9020
ModifiedIssue
20221201.00
