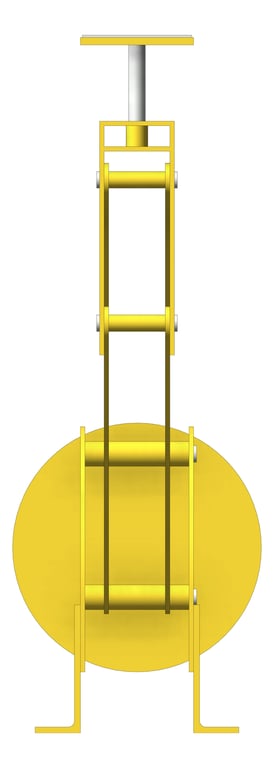

Image of Constant Load Spring Support Anchorage Horizontal Base Mounted AG820

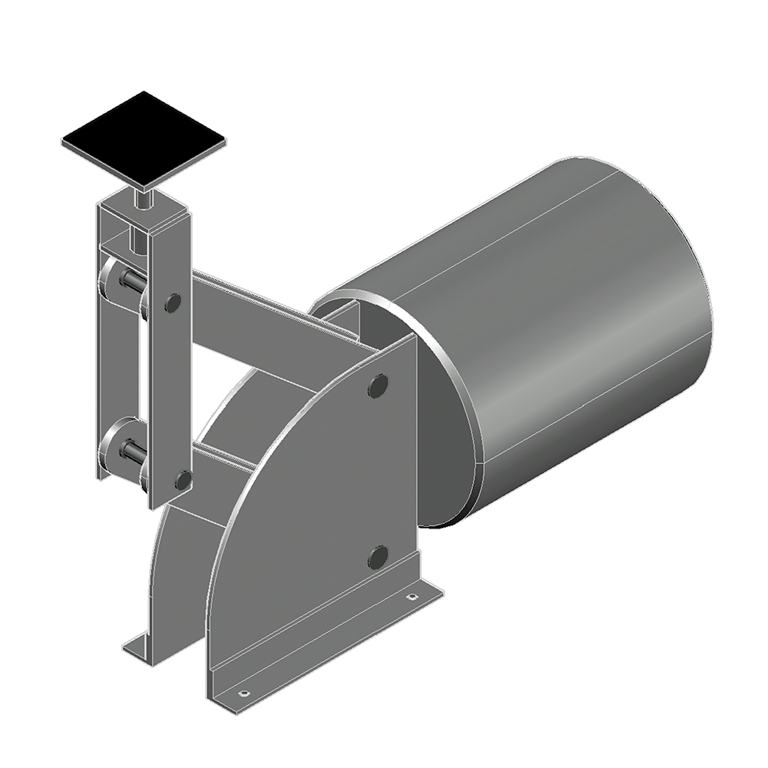

3D Shaded Image of Constant Load Spring Support Anchorage Horizontal Base Mounted AG820

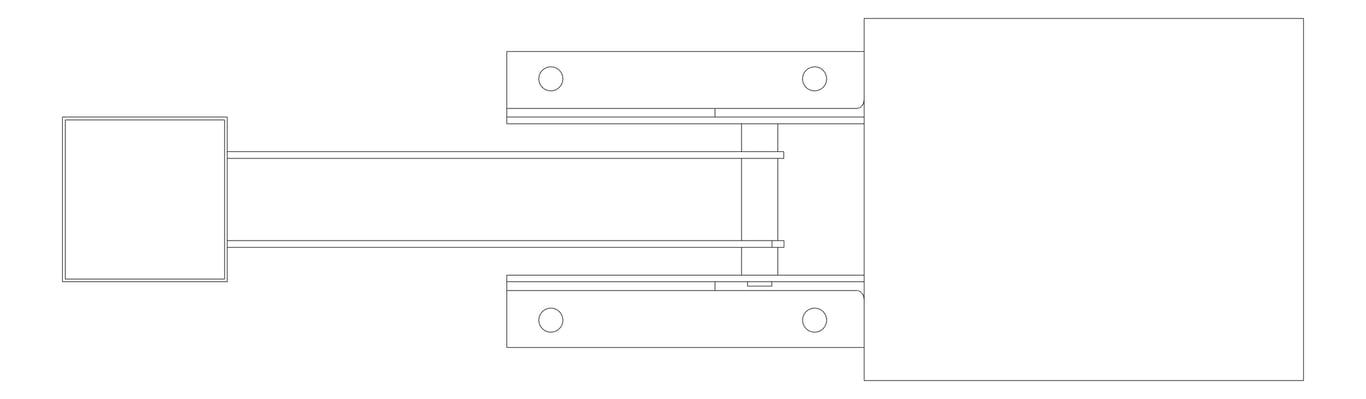

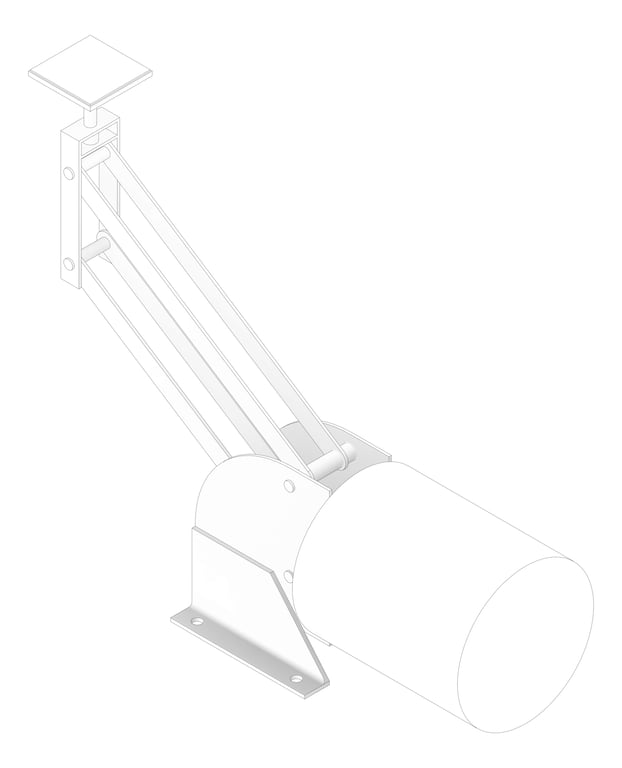

3D Documentation Image of Constant Load Spring Support Anchorage Horizontal Base Mounted AG820

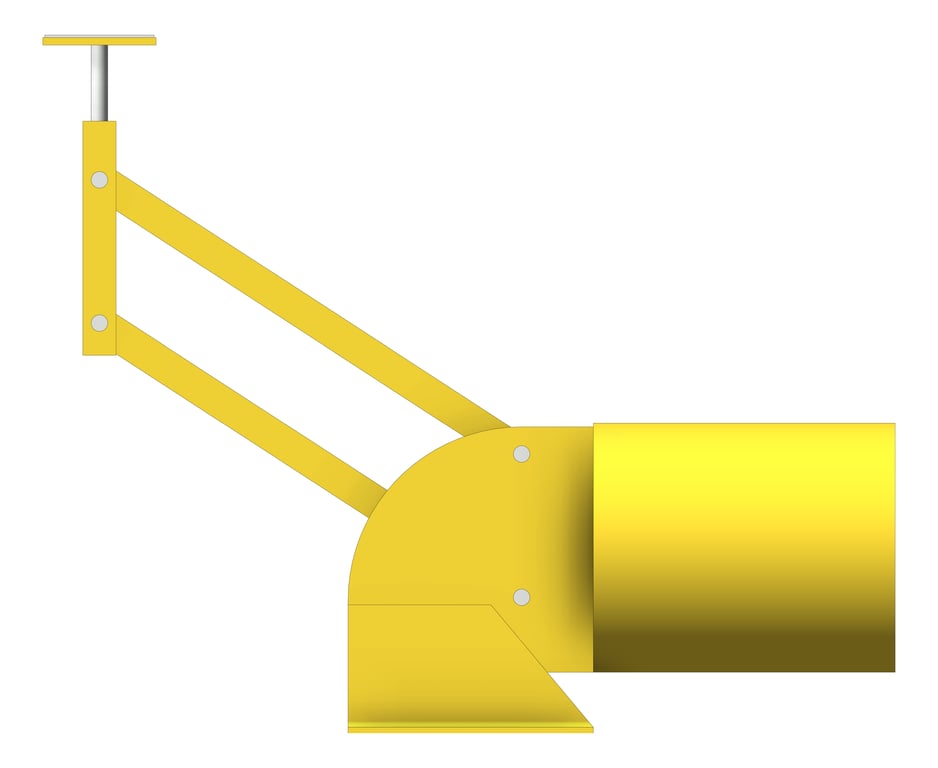

Left Image of Constant Load Spring Support Anchorage Horizontal Base Mounted AG820

Constant Load Spring Support Anchorage Horizontal Base Mounted AG820

Name: SpringSupport Constant Anchorage BaseMount Horizontal
Brand: Anchorage
Availability: InStock

Galvanised carbon steel. Multi-coat available on request. Constant load is maintained throughout the complete load and movement range. Load adjustment of +/-20% is available with the load adjustment screw. Operating loads from 10kg to 31,500kg & travels from 40mm to 610mm Stainless steel scale plates displayed with all the support details. Horizontal Base Mounted Support for loads above unit
