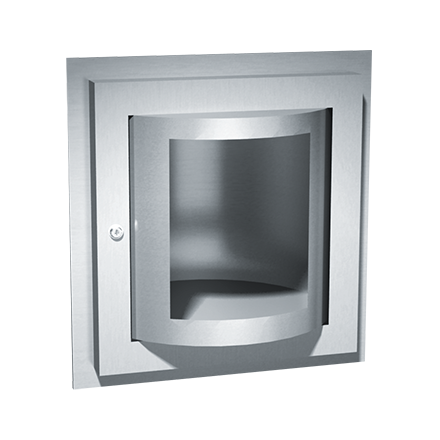

Image of SpecimenPassBox Recessed ASI Turntable

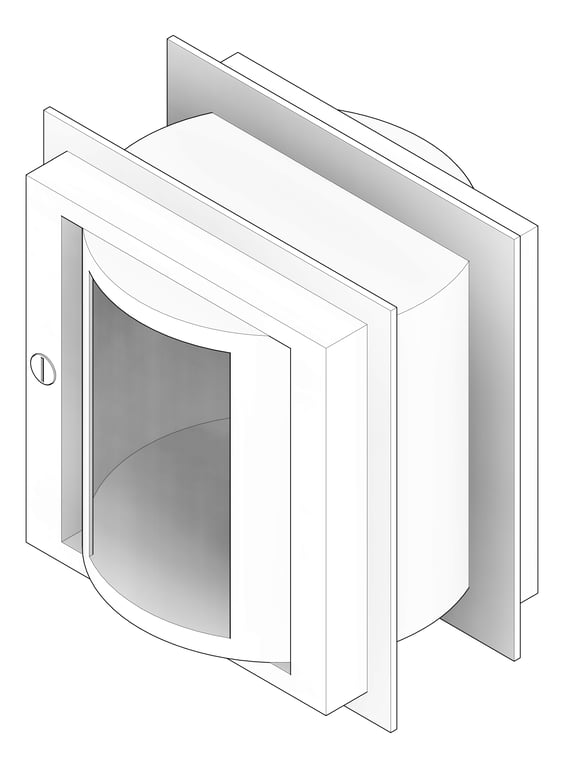

3D Shaded Image of SpecimenPassBox Recessed ASI Turntable
3D Documentation Image of SpecimenPassBox Recessed ASI Turntable

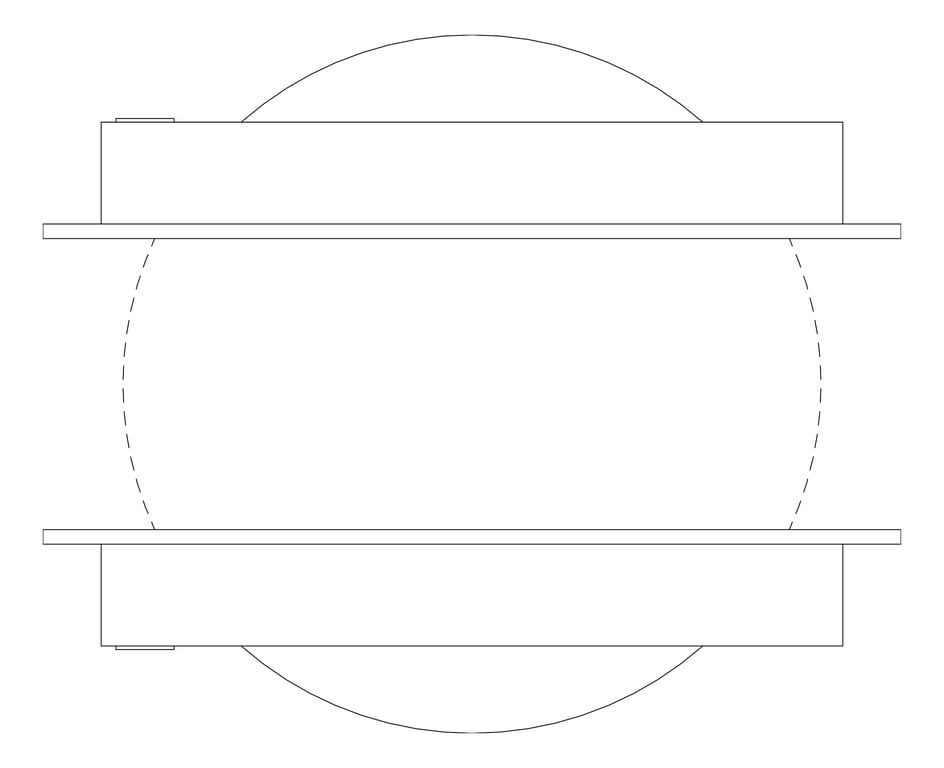

Plan Image of SpecimenPassBox Recessed ASI Turntable

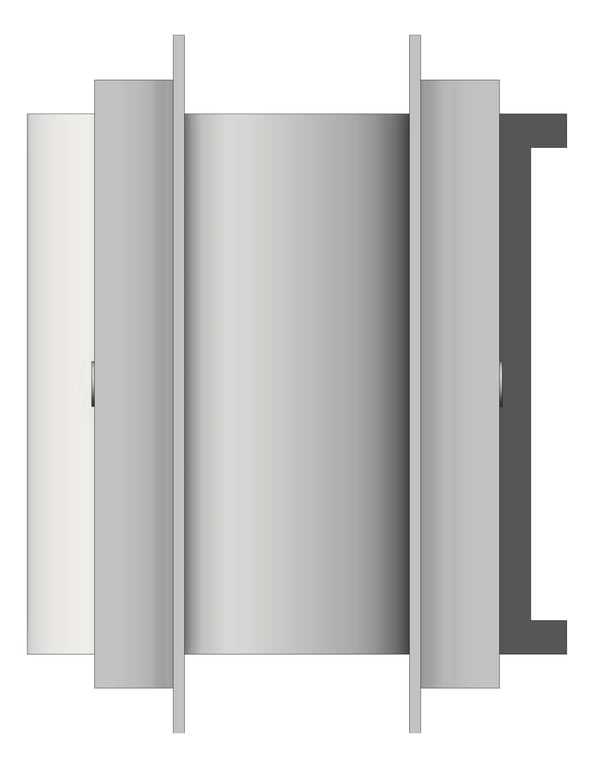

Left Image of SpecimenPassBox Recessed ASI Turntable

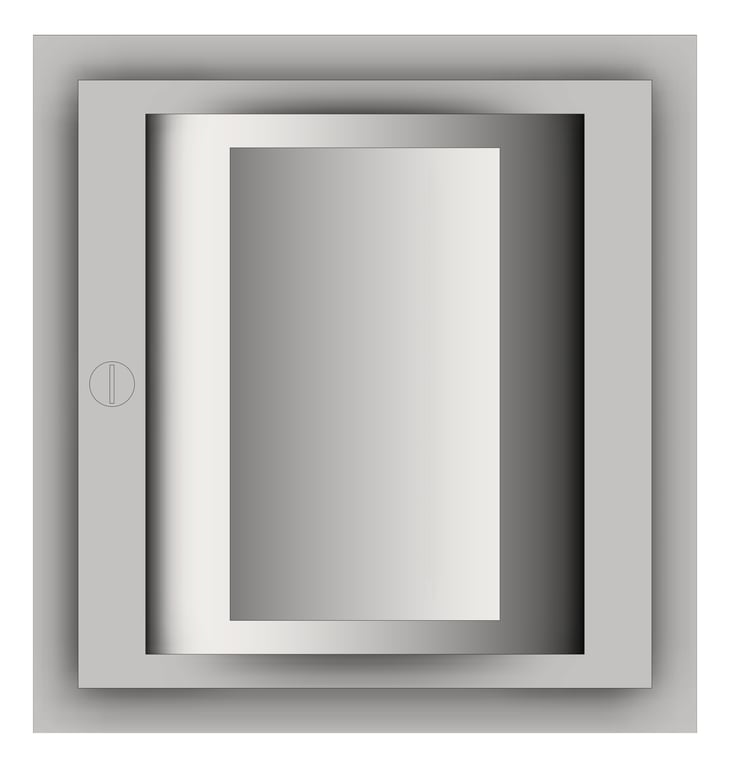

Front Image of SpecimenPassBox Recessed ASI Turntable
0515_ASI-TurntableSpecimenPassBox-HealthcareAccessories@2x1.png Image of SpecimenPassBox Recessed ASI Turntable

SpecimenPassBox Recessed ASI Turntable

Turntable cylinder is 12″ (305 mm) diameter with 10-1/2″ x 6″ (167 x 152 mm) opening. Stainless steel self-lubricating ball bearing plates mounted on top and bottom permit the unit to rotate freely. Positioned bullet catches prevent uncontrolled rotation. Tumbler lock allows for the removal of the cylinder for sterilizing or autoclaving when necessary.

Specimen container is placed inside the turntable cylinder and is then manually rotated clockwise or counterclockwise 180° to present the container to the rear opening for retrieval by technician. Service access to the unit is gained by unlocking and opening the door.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
14 3/4"
Depth
12"
Height
15 1/2"
Model
0515
Type Comments
Specimen Pass Box - Recessed
