Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

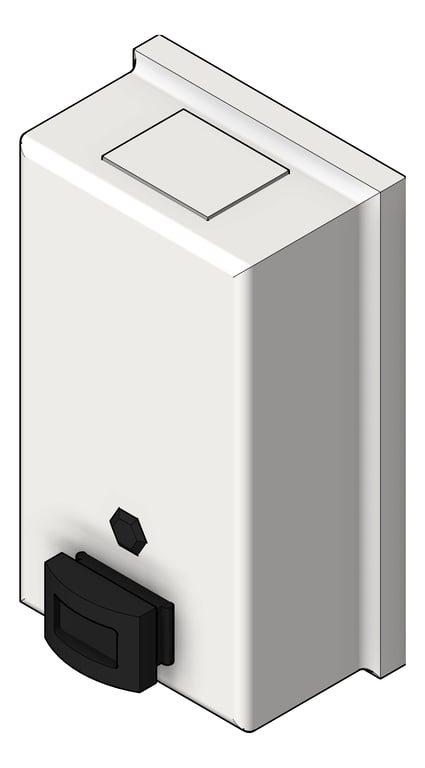

3D Shaded Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

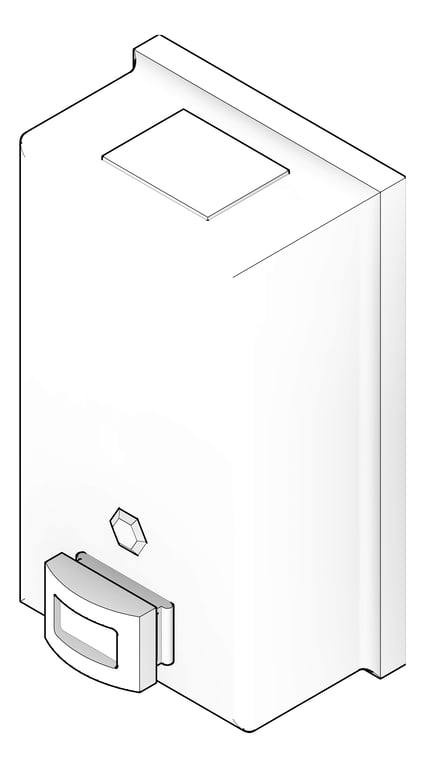

3D Documentation Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

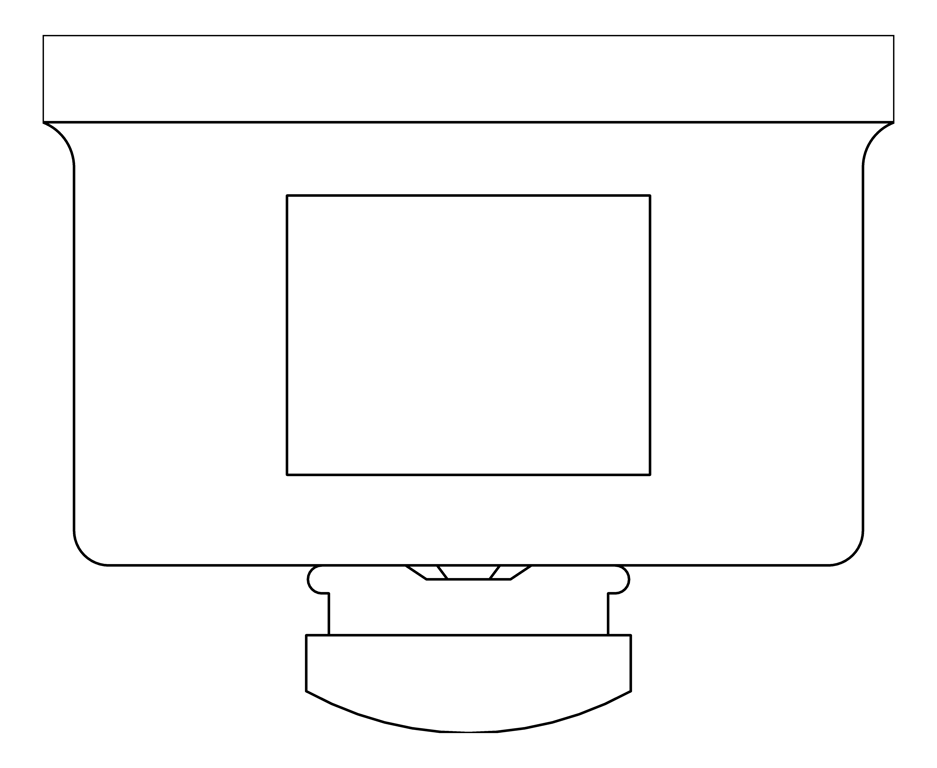

Plan Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

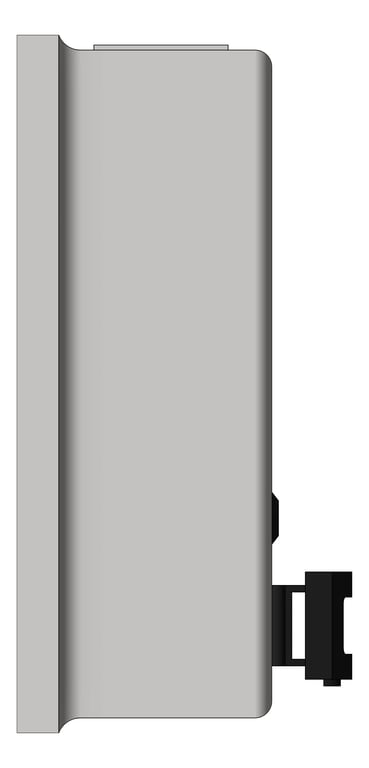

Left Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

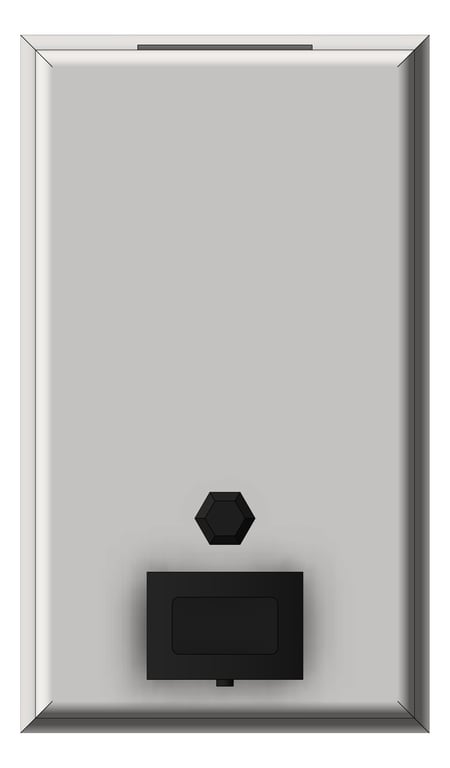

Front Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

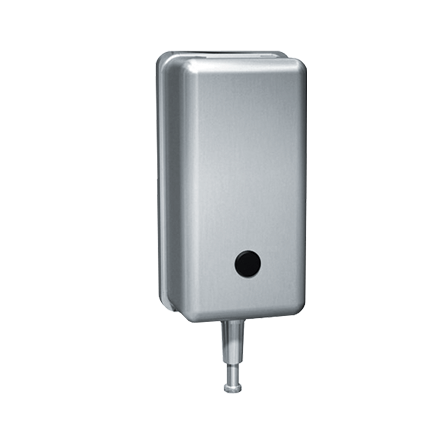

10-0346_ASIJDMacDonald_Soap_Dispenser_Vertical_Surface_Mount_Web.png Image of SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

SoapDispenser SurfaceMount ASIJDMacDonald SS Vertical

Satin stainless steel finish. Can dispense liquid soap, lotion or detergent* and has a tamper-resistant level window and hinged refill door which is opened with a special key (provided). Push valve is constructed of chrome-plated brass . Capacity: 1.18 L.

• Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.

• Viscosity Range (mPa·s or cP): 100 – 3500

• pH Range: 5.5 ~ 8.5

* For a detailed list of acceptable soap types suitable for use in each unit, please download our ‘Soap Dispensing Information’ guide.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
100 mm|76 mm
Height
208 mm|279 mm
Width
122 mm
Model
10-0347|10-0346
ModifiedIssue
20221201.00
Types
