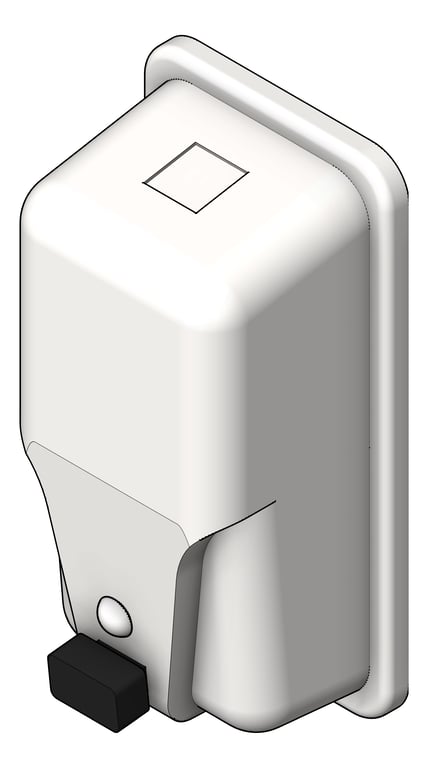

3D Shaded Image of SoapDispenser SurfaceMount ASIJDMacDonald Roval

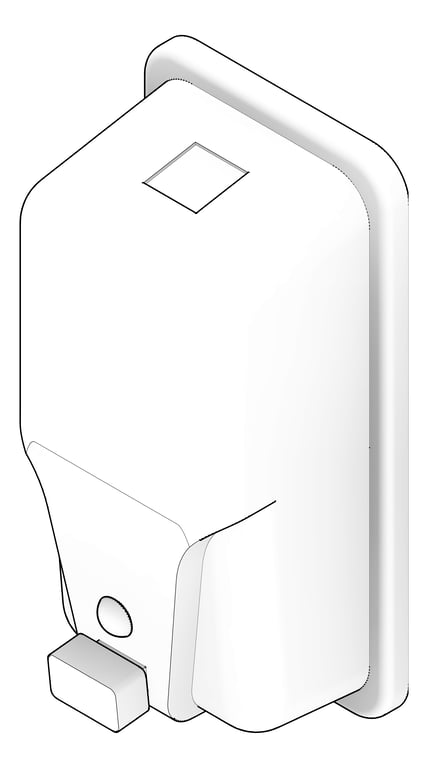

3D Documentation Image of SoapDispenser SurfaceMount ASIJDMacDonald Roval

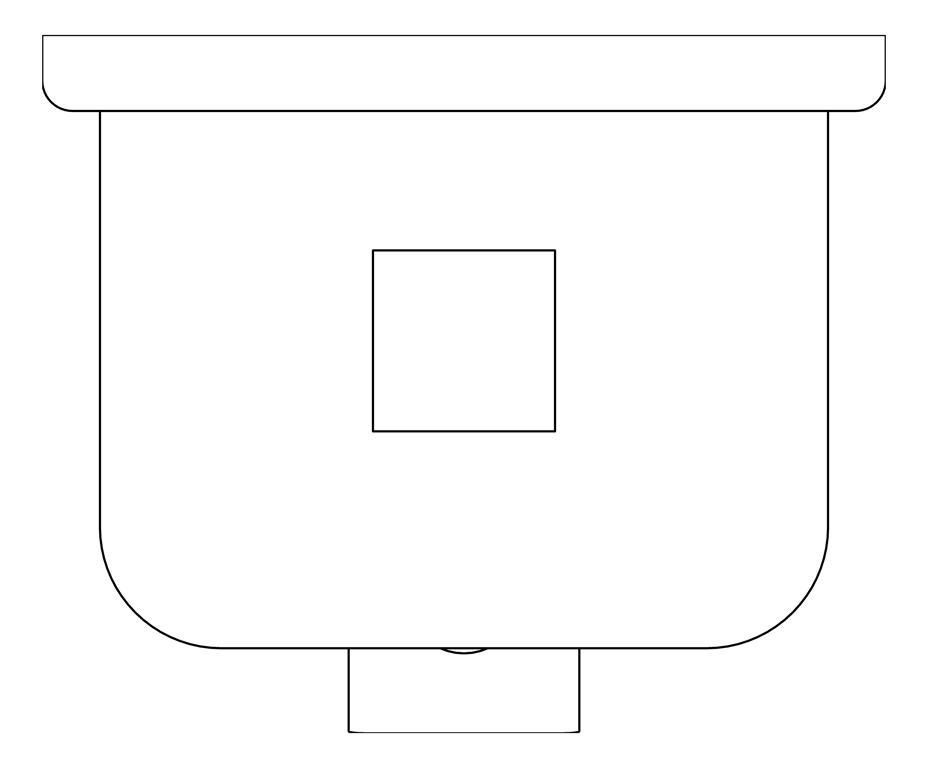

Plan Image of SoapDispenser SurfaceMount ASIJDMacDonald Roval

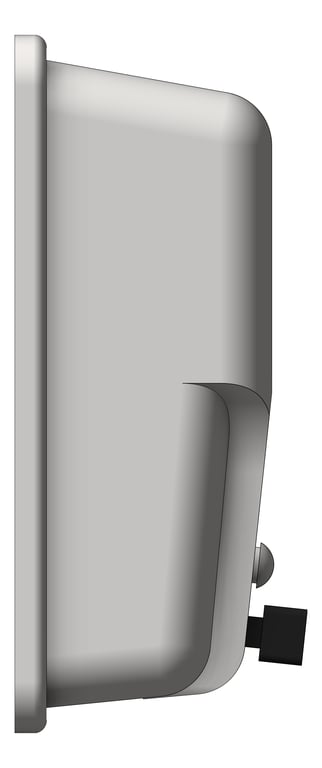

Left Image of SoapDispenser SurfaceMount ASIJDMacDonald Roval

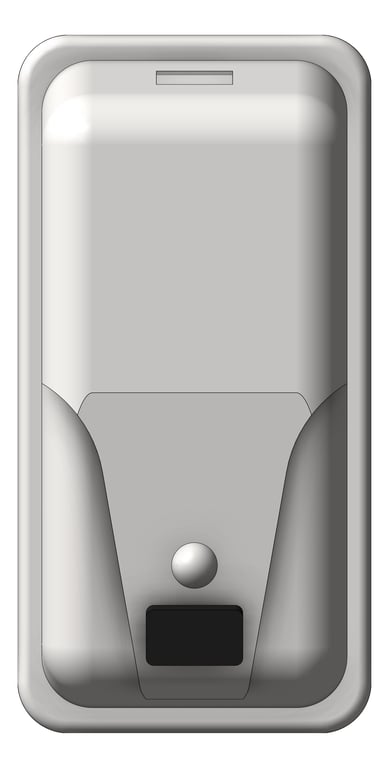

Front Image of SoapDispenser SurfaceMount ASIJDMacDonald Roval

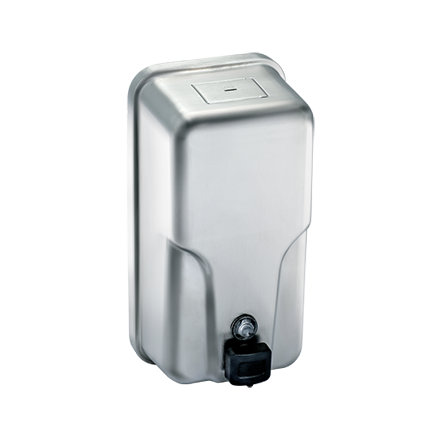

10-20363_ASIJDMacDonald_Soap_Dispenser_Vertical_Surface_Mount_Roval_Web.png Image of SoapDispenser SurfaceMount ASIJDMacDonald Roval

SoapDispenser SurfaceMount ASIJDMacDonald Roval

Satin stainless steel finish. Gently radiused edge complements the curves of the Roval™ Collection. Can dispense liquid soap*. Features a push-button valve, tamper-resistant level window and hinged refill door which is opened with a special key (provided). Capacity: 1.7 L.

• Soap Requirements: Proper usage of this dispenser requires that only soap within the following range for viscosity and pH may be used:

• Viscosity Range (mPa·s or cP): 1 – 5500

• pH Range: 5.5 ~ 8.5

* For a detailed list of acceptable soap types suitable for use in each unit, please download our ‘Soap Dispensing Information’ guide.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
115 mm
Height
274 mm
Width
139 mm
Model
10-20363
ModifiedIssue
20221201.00
