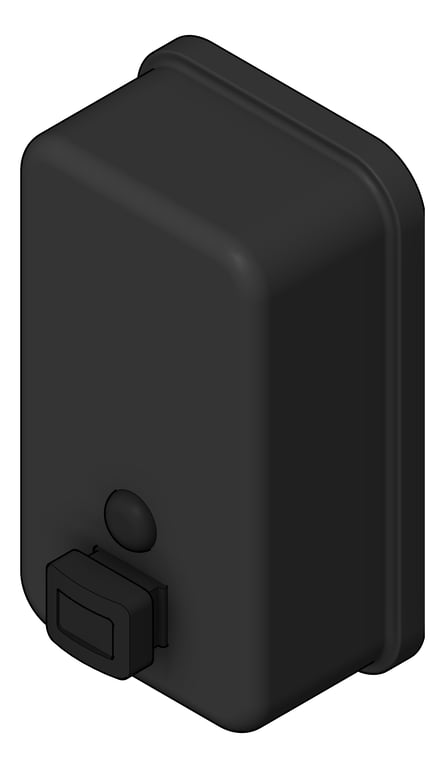

3D Shaded Image of SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

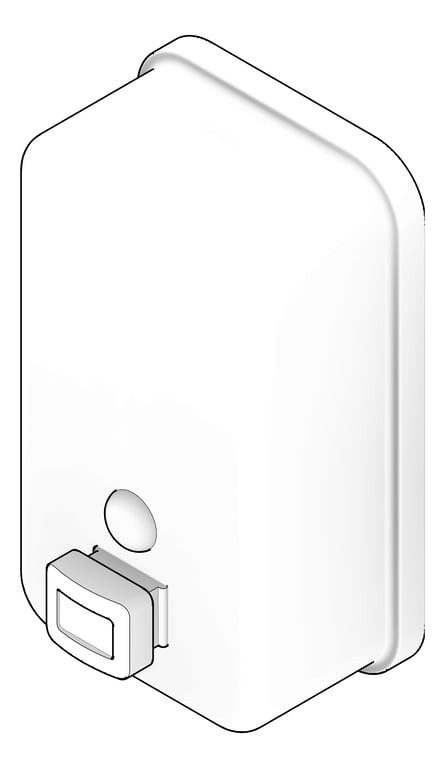

3D Documentation Image of SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

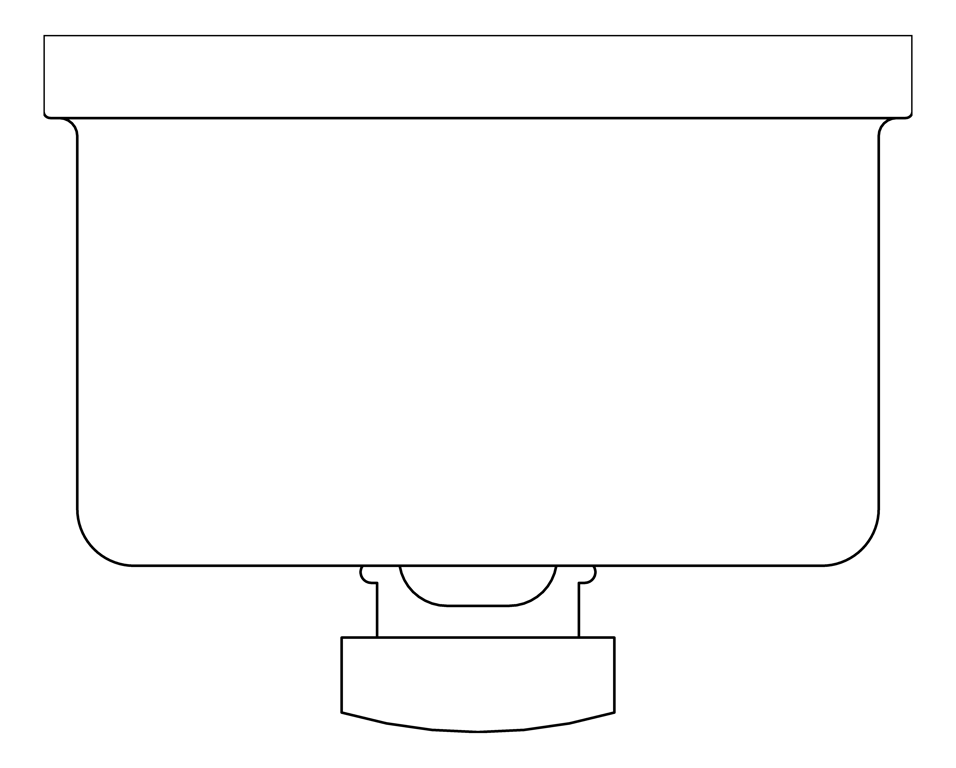

Plan Image of SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

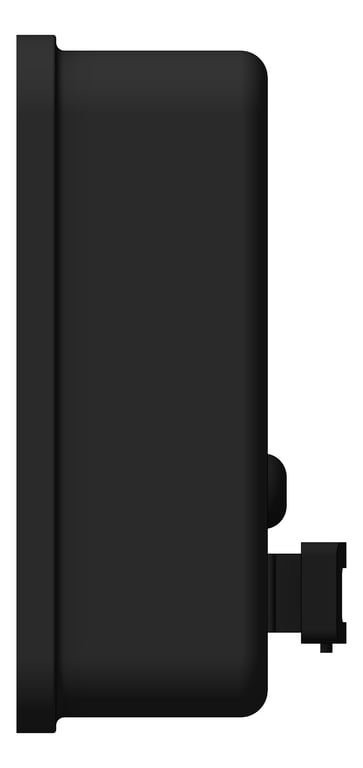

Left Image of SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

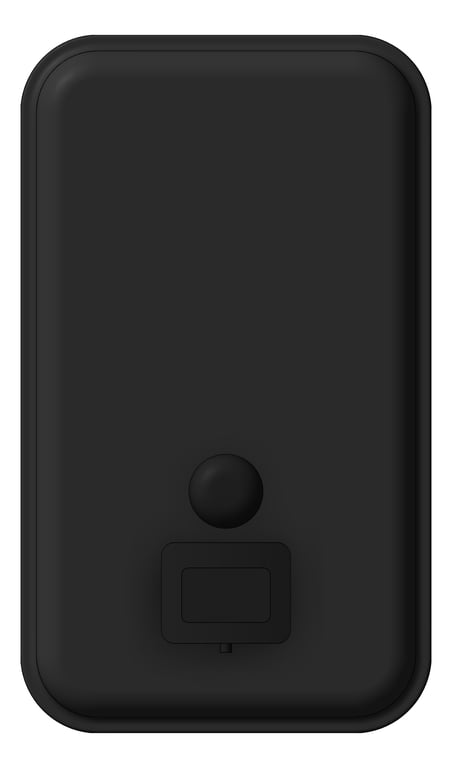

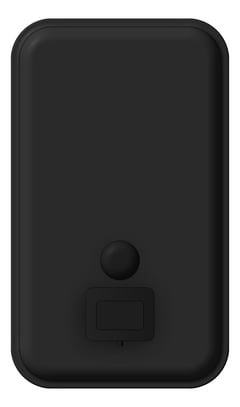

Front Image of SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

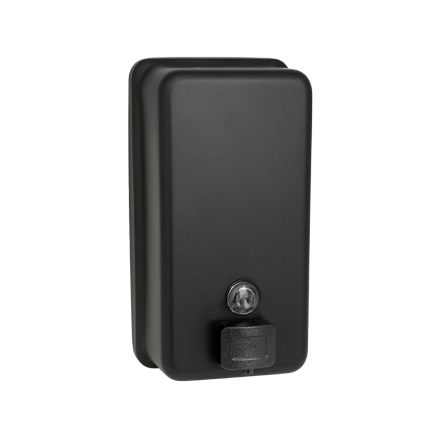

10-0341-41_ASIJDMacDonald_Soap_Dispenser_Matte_Black.png Image of SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

SoapDispenser SurfaceMount ASIJDMacDonald MatteBlack

Satin stainless with a matte black powder coat finish. Features a push-button valve, tamper-resistant level window and hinged refill door which is opened with a special key (provided). Capacity: 1.18 L.

• Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.

• Viscosity Range (mPa·s or cP): 100 – 3500

• pH Range: 5.5 ~ 8.5

* For a detailed list of acceptable soap types suitable for use in each unit, please download our ‘Soap Dispensing Information’ guide.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
98 mm
Height
207 mm
Width
122 mm
Model
10-0341-41
ModifiedIssue
20221201.00
