Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

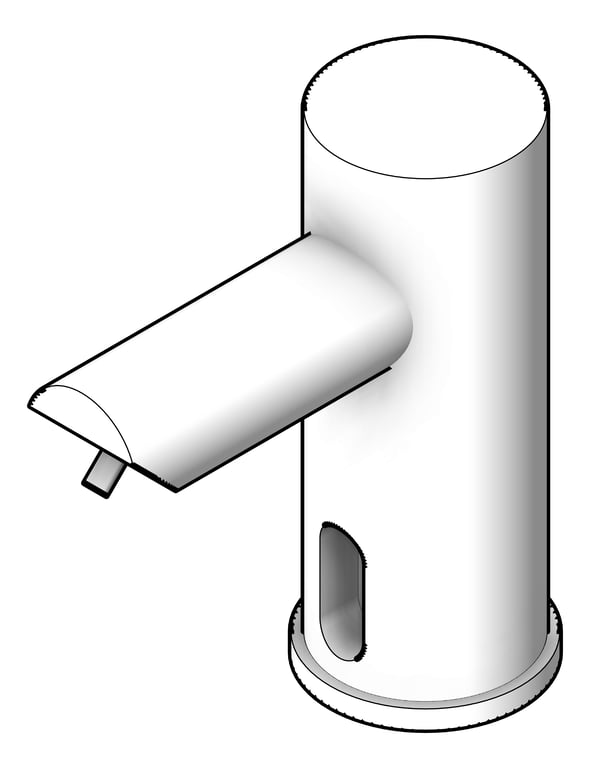

3D Shaded Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

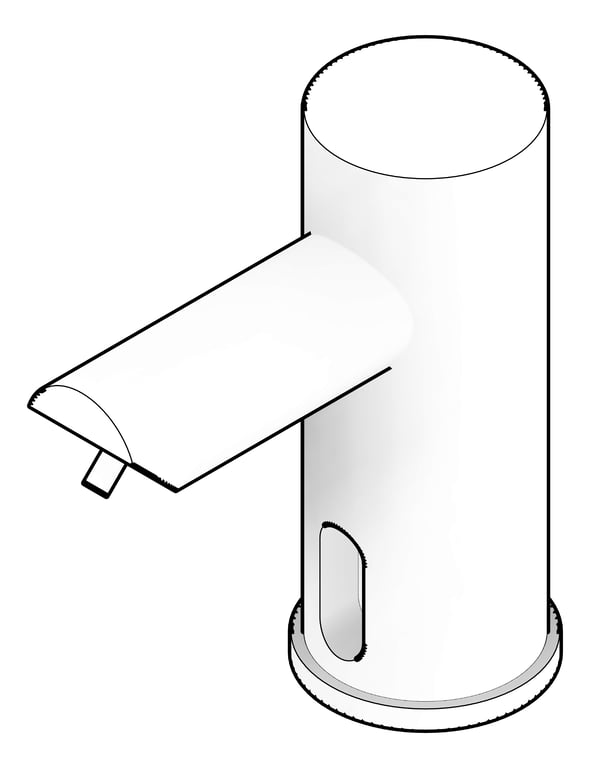

3D Documentation Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

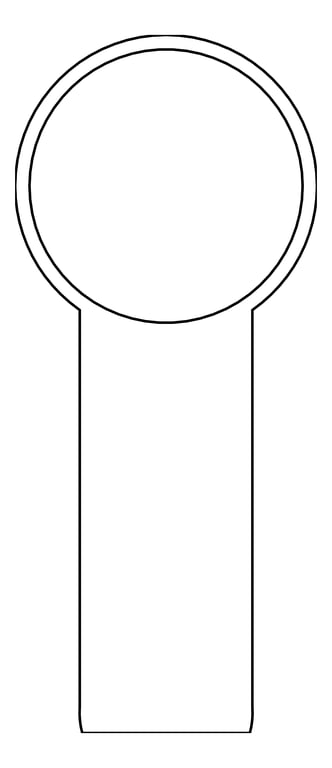

Plan Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

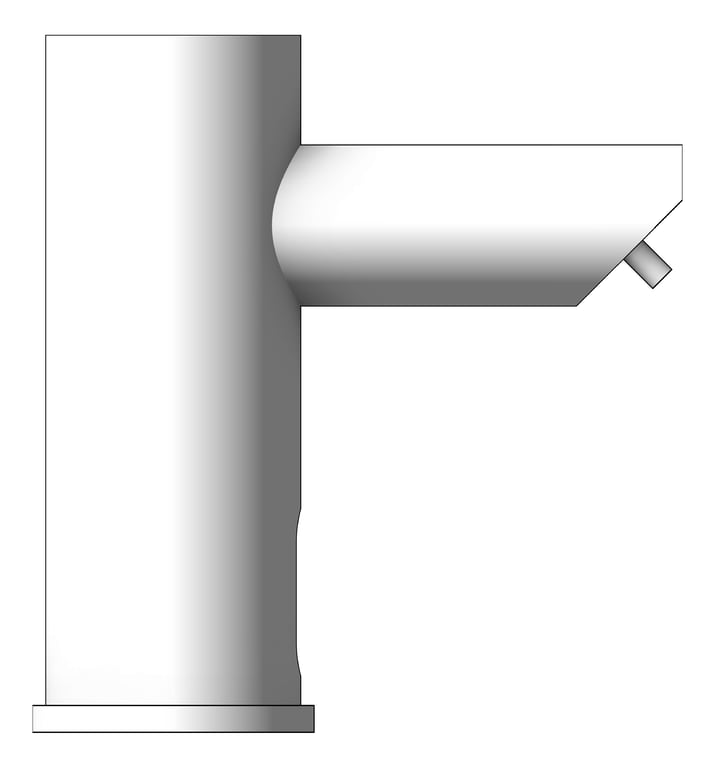

Left Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

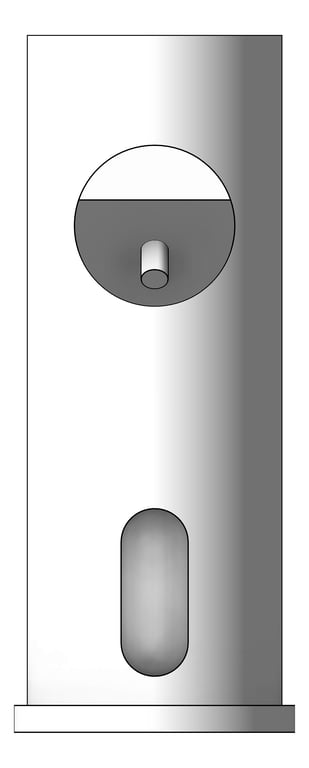

Front Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

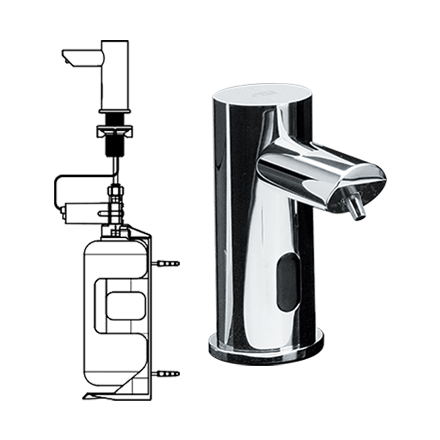

10-0394-3AC_ASIJDMacDonald_Soap_Dispenser_Head_With_Bottle_Foam_EZ-Fill_Web.png Image of SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

SoapDispenser BenchMount ASIJDMacDonald EzFill Foam StandAlone

Constructed of chrome plated spout and AC power operated, hands-free sensor housing with a highly polished finish over all surfaces. LED indicates function on face front. Foam soap supply shall be from EZ Fill™ Vanity Mounted Top-Fill Port and Multi-Feed Tank (supplied separately).

Multi-Feed Dispenser Heads do not include a Multi-Feed Kit.

Model Options available:

10-0393-3AC – EZ-Fill™ – Top Fill, Multi-Feed Soap Dispenser Head, Foam – AC plug-in Version

10-0393-6-3AC – EZ-Fill™ – Top Fill, Multi-Feed Soap Dispenser Head, Foam – AC plug-in Version – 6 Pack (comes with Remote Control)

• Soap Requirements: Proper usage of this dispenser requires that only soap within the following range for viscosity and pH may be used:

• Viscosity Range (mPa·s or cP): 1 – 100

• pH Range: 5.5 ~ 8.5

* For a detailed list of acceptable soap types suitable for use in each unit, please download our ‘Soap Dispensing Information’ guide.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
95 mm
Height
104 mm
Width
38 mm
Model
10-0394-3AC
ModifiedIssue
20221201.00
