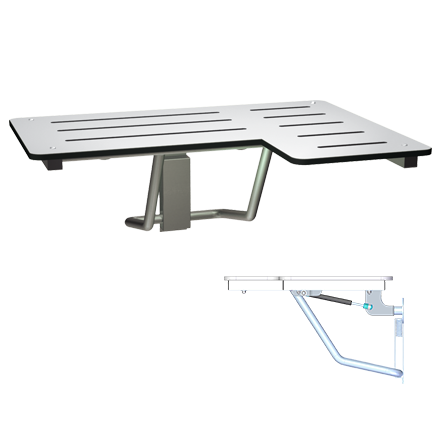

Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose

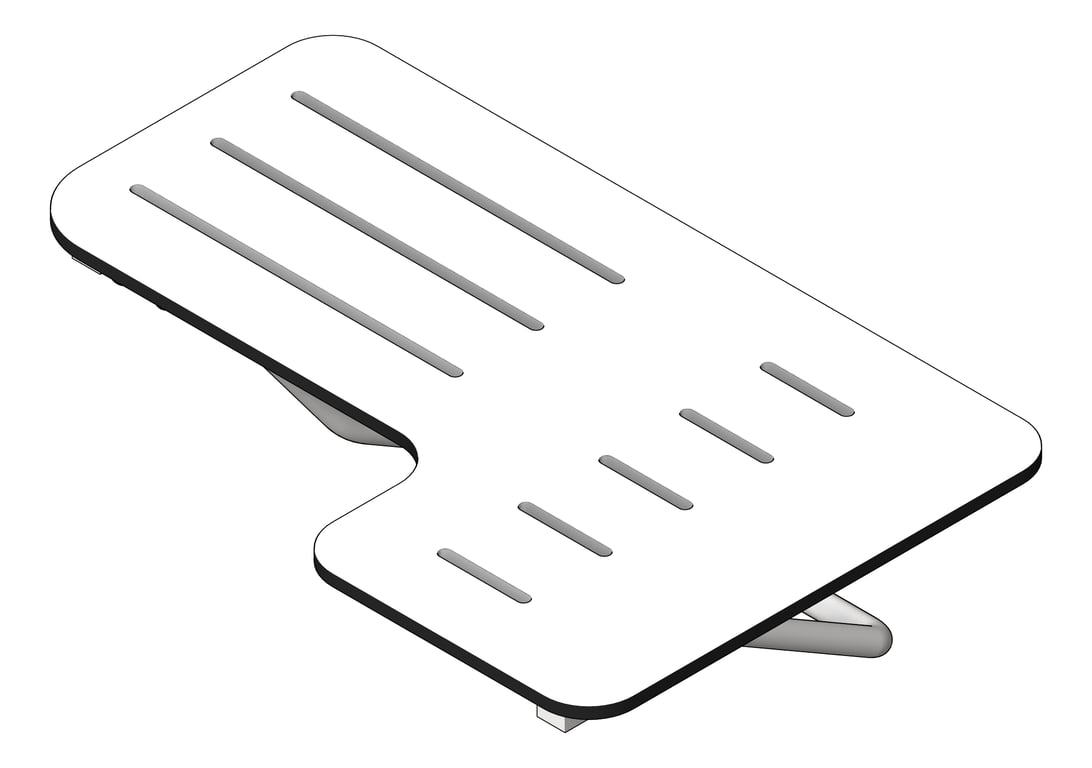

3D Shaded Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose

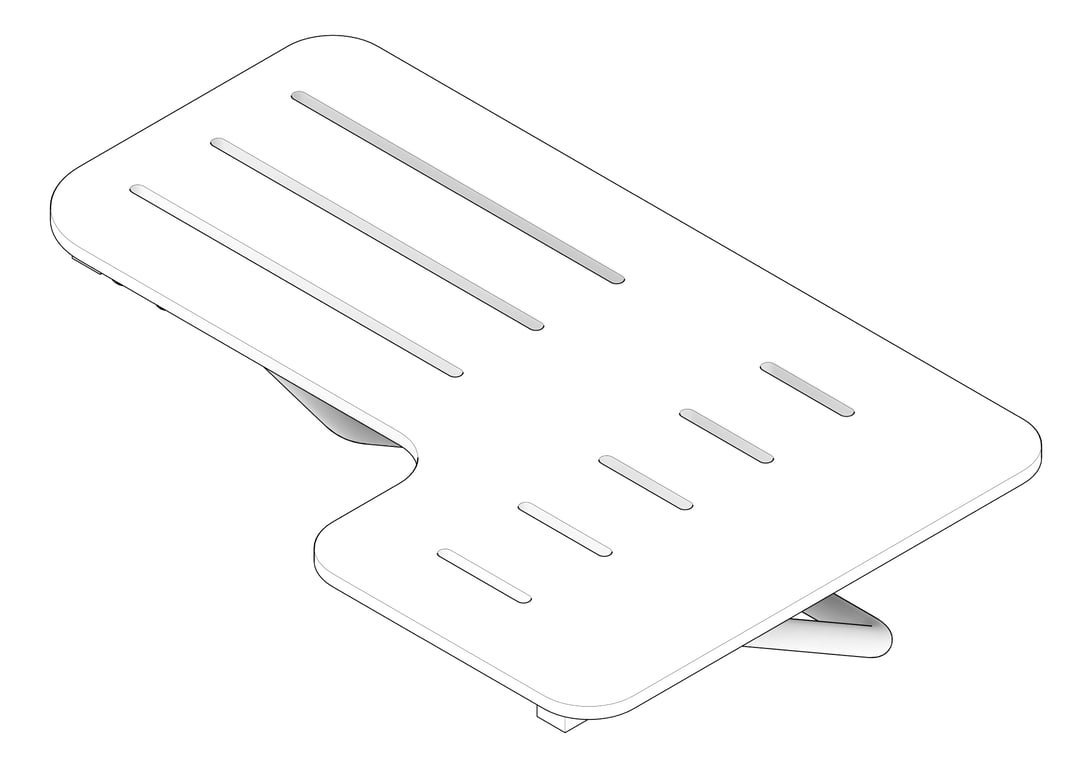

3D Documentation Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose

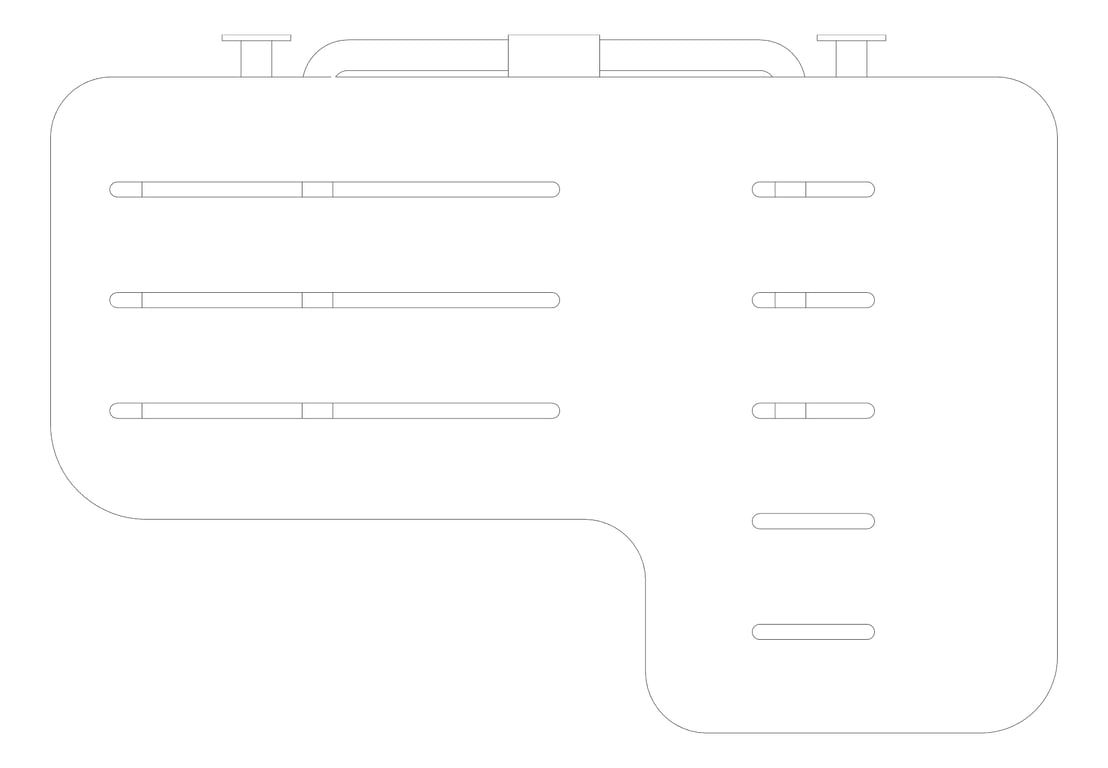

Plan Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose

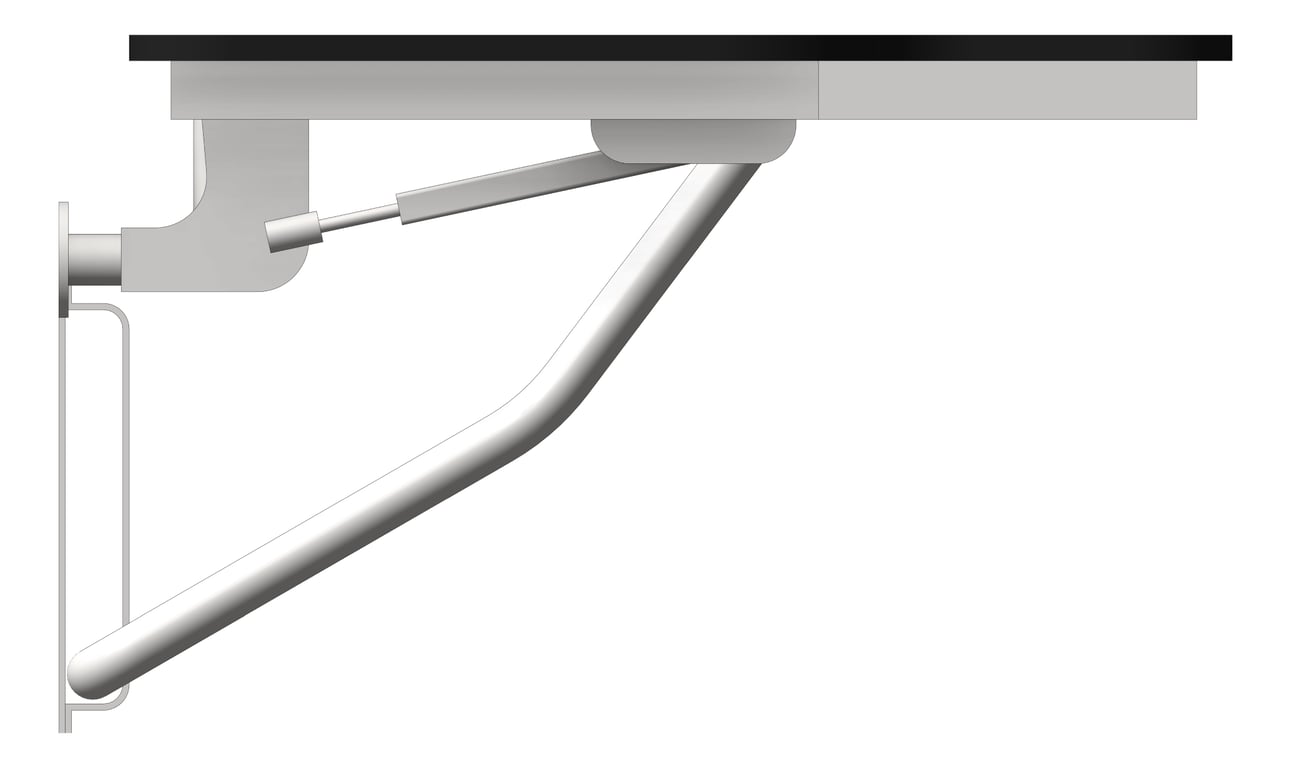

Left Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose

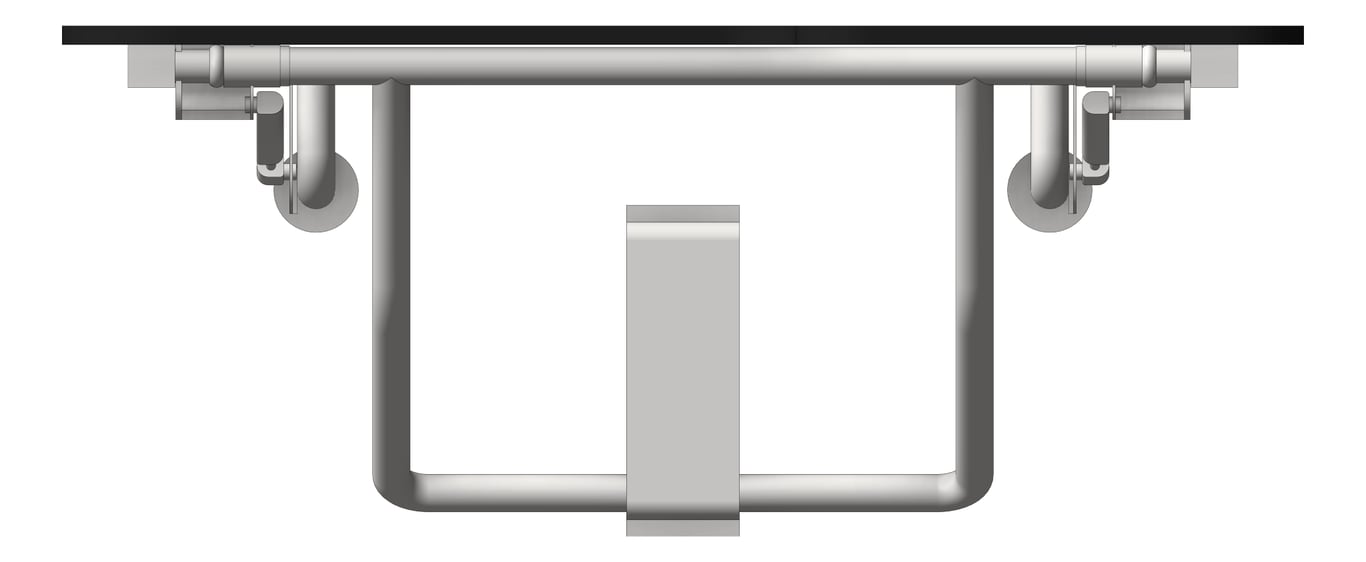

Front Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose
8206-L_wcad.png Image of ShowerSeat Folding ASI LShape LH Phenolic SoftClose

ShowerSeat Folding ASI LShape LH Phenolic SoftClose

Slow Close Phenolic L-Shaped Fold Up Shower Seat provides added safety and ease of use.

Gas charged struts assist one handed opening by allowing the slowly lowering seat to its operating position and also assists in partial closing. Guide brackets with a spring detent prevents the seat from dropping and provides positive support while in use, as well as spring locking in its storage position.

(Left Hand) Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½” (13 mm) thick, one piece solid, white colored, black core phenolic. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33″ (838 mm) wide and projects 22-7⁄8″ (581 mm) from wall.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
33"
Depth
22 7/8"
Height
13 3/8"
Model
8206-SC-L
