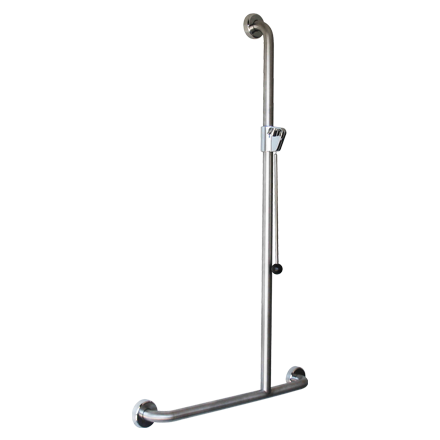

Image of ShowerRail TShape ASIJDMacDonald LH

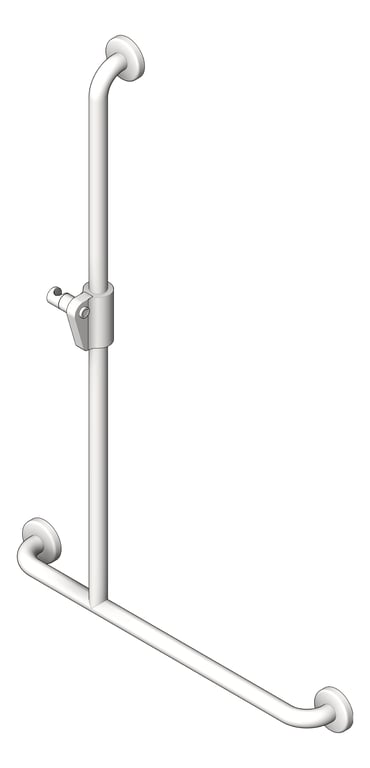

3D Shaded Image of ShowerRail TShape ASIJDMacDonald LH

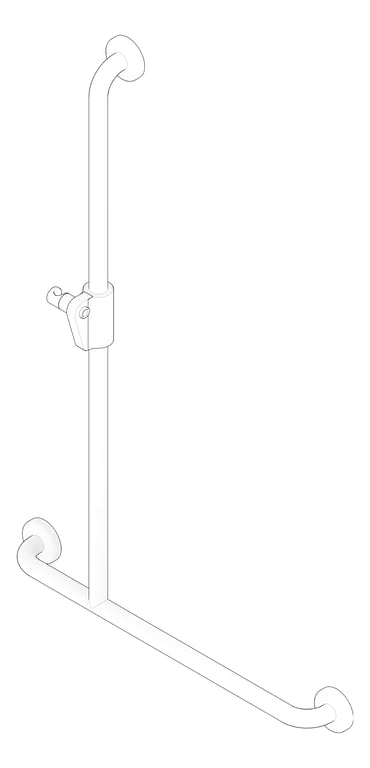

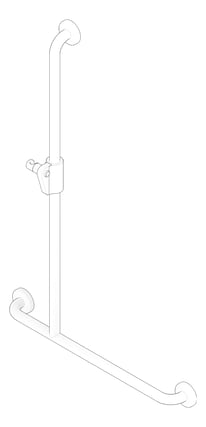

3D Documentation Image of ShowerRail TShape ASIJDMacDonald LH

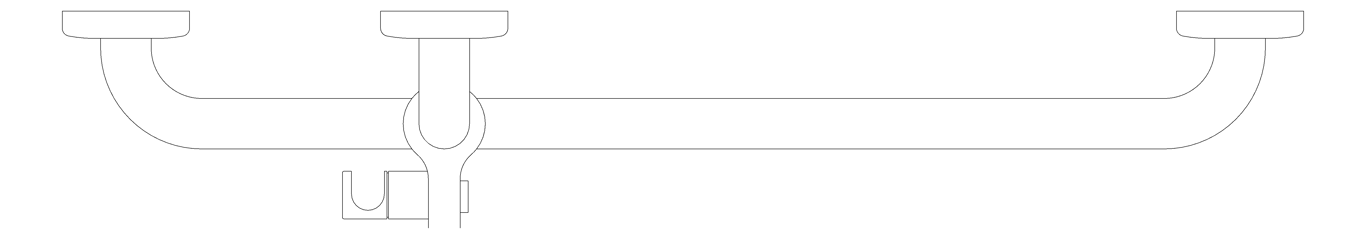

Plan Image of ShowerRail TShape ASIJDMacDonald LH
Left Image of ShowerRail TShape ASIJDMacDonald LH

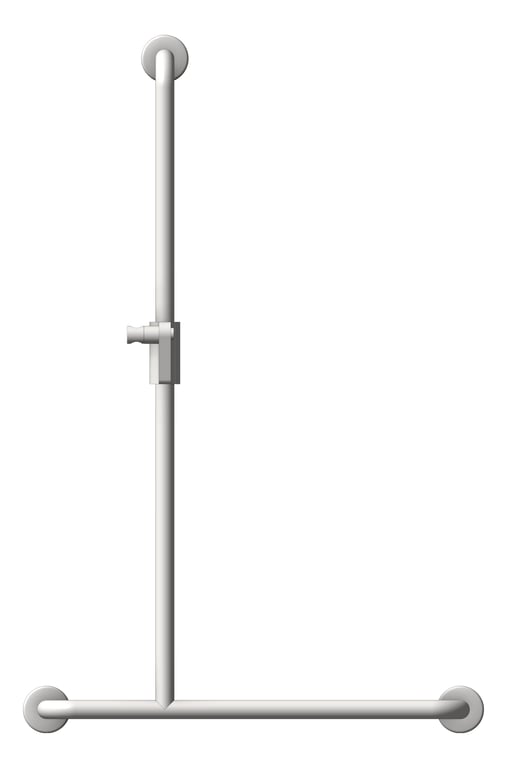

Front Image of ShowerRail TShape ASIJDMacDonald LH
GRCSES29_ASIJDMacDonald_Grab_Rail_Clean_Seal_Web.png Image of ShowerRail TShape ASIJDMacDonald LH

ShowerRail TShape ASIJDMacDonald LH

Clean seal fully welded construction is finished in satin stainless steel tubing with double chrome plated innovative flange and cover system. Simple fixing method with a hygienically sealed installation with silicone ‘o’ ring seals. Designed for the safety, security and convenience of the physically disabled. Easy to install on most building surfaces. Tubing diameter is 32mm. Includes premium designed durable cast alloy cradle with fully adjustable sliding tension for rail and the handset pivot incorporating a self-cleaning slide with anti-rotate feature.

*HANDING
Grab rails indicating handing are referenced from the in-situation position (eg the pan or shower) not looking at it. Handing is indicated by the suffix of either LH (Left Hand) or RH (Right Hand) and MUST be specified at time of order.

*Standard finish is Satin. For Polished finish add suffix ‘-P

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
137 mm
Height
1180 mm
Width
780 mm
Model
GRCSES29LH-P|GRCSES29LH
ModifiedIssue
20221201.00
Types
