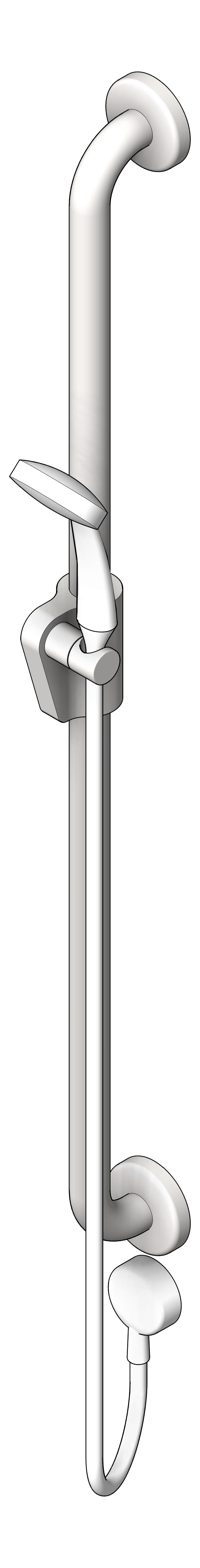

3D Shaded Image of ShowerRail Straight ASIJDMacDonald
3D Documentation Image of ShowerRail Straight ASIJDMacDonald

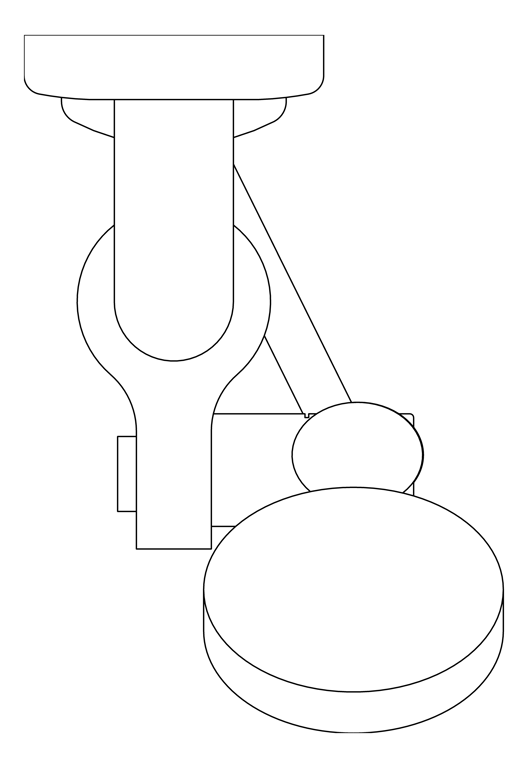

Plan Image of ShowerRail Straight ASIJDMacDonald
Left Image of ShowerRail Straight ASIJDMacDonald

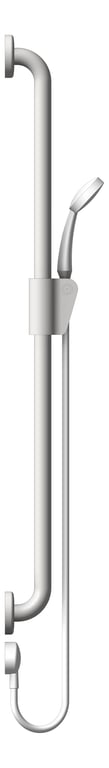

Front Image of ShowerRail Straight ASIJDMacDonald

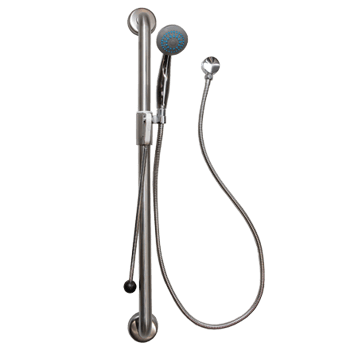

GCSS1040E_ASIJDMacDonald_Grab_Rail_Clean_Seal_Web.png Image of ShowerRail Straight ASIJDMacDonald

ShowerRail Straight ASIJDMacDonald

Clean seal fully welded construction is finished in satin stainless steel tubing with double chrome plated innovative flange and cover system. Simple fixing method with a hygienically sealed installation with silicone ‘o’ ring seals. Designed for the safety, security and convenience of the physically disabled. Easy to install on most building surfaces. Tubing diameter is 32mm. Includes premium designed durable cast alloy cradle with fully adjustable sliding tension for rail and the handset pivot incorporating a self-cleaning slide with anti-rotate feature. GCSS1040E includes chrome shower kit (Model No. SK-HSKF).

*Standard finish is Satin. For Polished finish add suffix ‘-P

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
137 mm
Height
1120 mm
Width
104 mm
Model
GCSS1040E-P|GCSS1040E
ModifiedIssue
20221201.00
