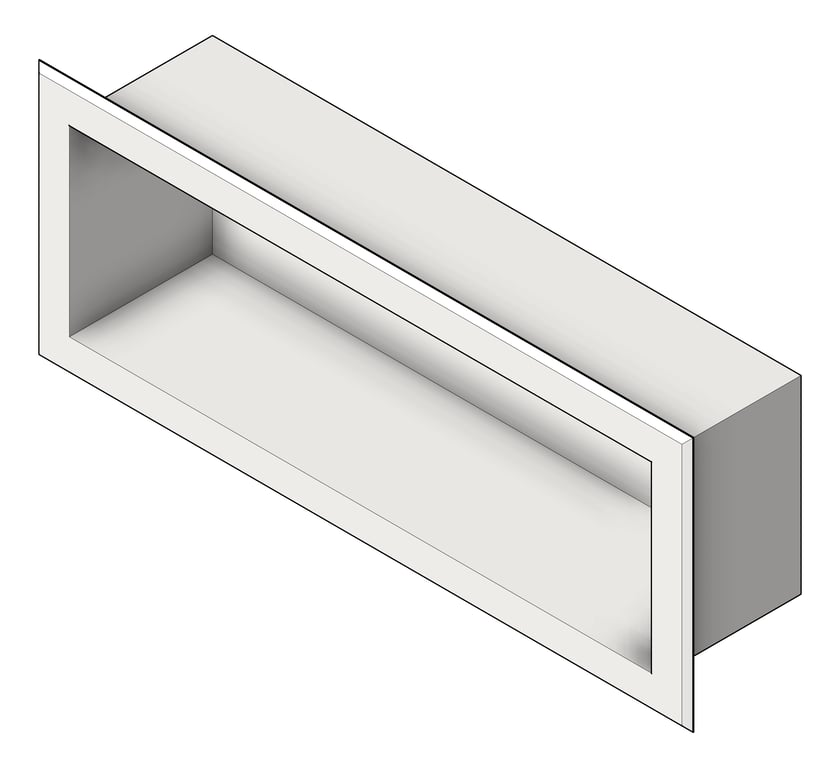

3D Shaded Image of Shelf Recessed ASIJDMacDonald Security

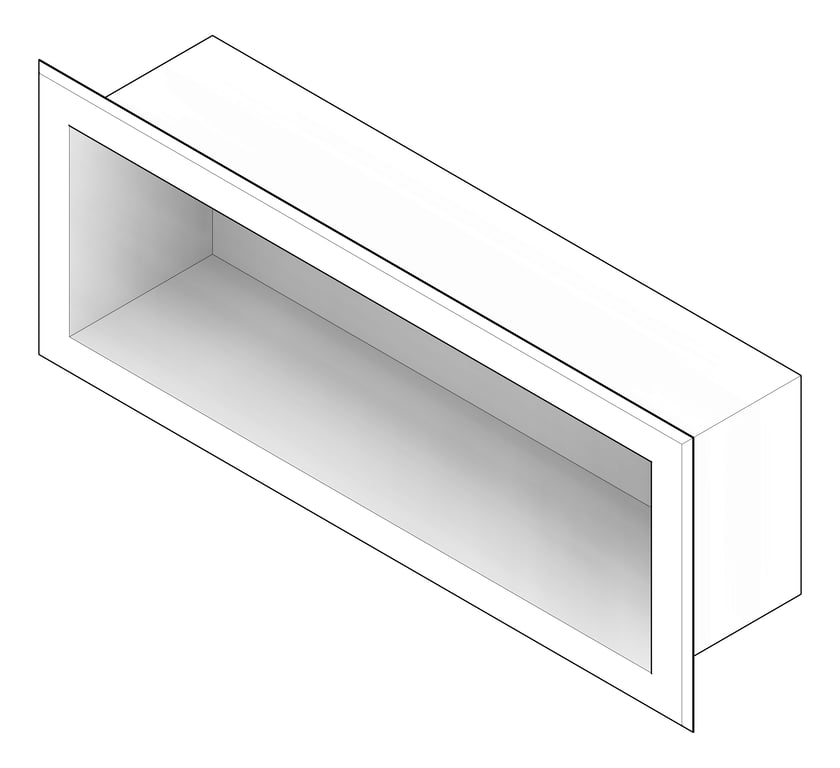

3D Documentation Image of Shelf Recessed ASIJDMacDonald Security
Plan Image of Shelf Recessed ASIJDMacDonald Security
Left Image of Shelf Recessed ASIJDMacDonald Security

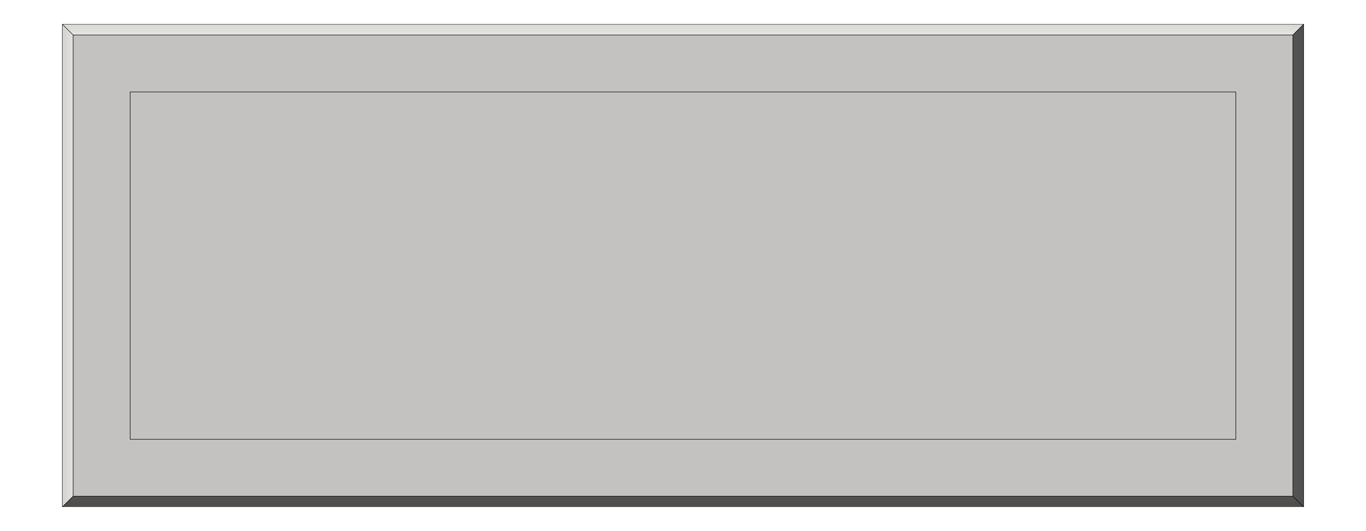

Front Image of Shelf Recessed ASIJDMacDonald Security

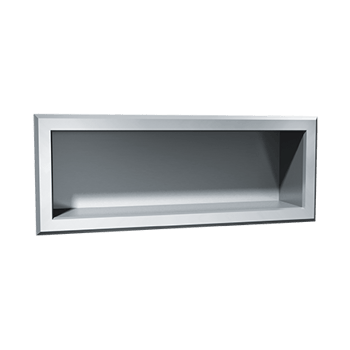

10-130_ASIJDMacDonald_Security_Shelf_Recessed_Rear_Mount_Web.png Image of Shelf Recessed ASIJDMacDonald Security

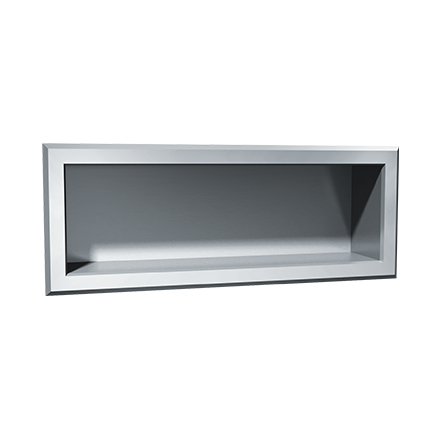

Shelf Recessed ASIJDMacDonald Security

Shelf 16 gauge type 304 stainless steel, corners welded and ground smooth. 25mm wide beveled satin finish trim. Interior glass blasted finish. Unit has four studs welded on back for rear mounting. Specify the thickness of the wall in the following increments (e.g. 130-LT4).

Wall Thickness Suffix
Up 120mm: LT4
120mm to 152mm: 46
Over 153mm specify thickness: GT6 = xxx

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
102 mm
Height
178 mm
Width
457 mm
Model
10-130
ModifiedIssue
20221201.00
