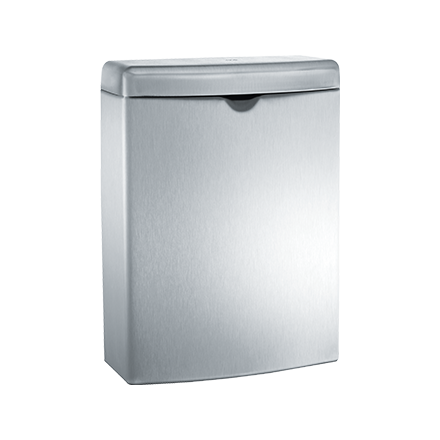

Image of SanitaryDisposal SurfaceMount ASI Roval

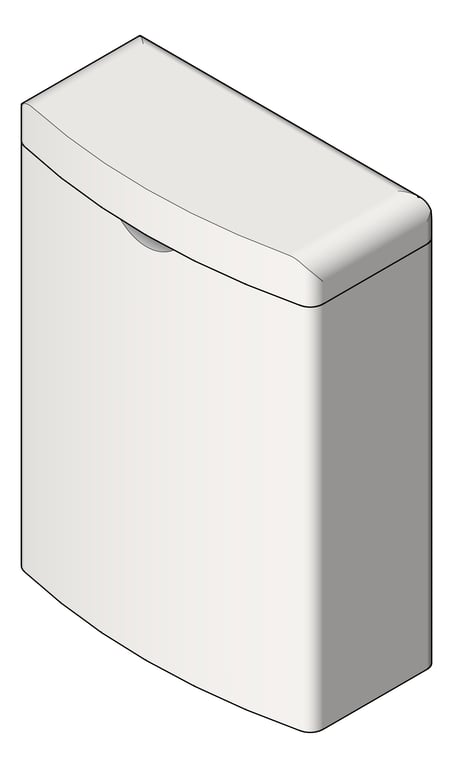

3D Shaded Image of SanitaryDisposal SurfaceMount ASI Roval

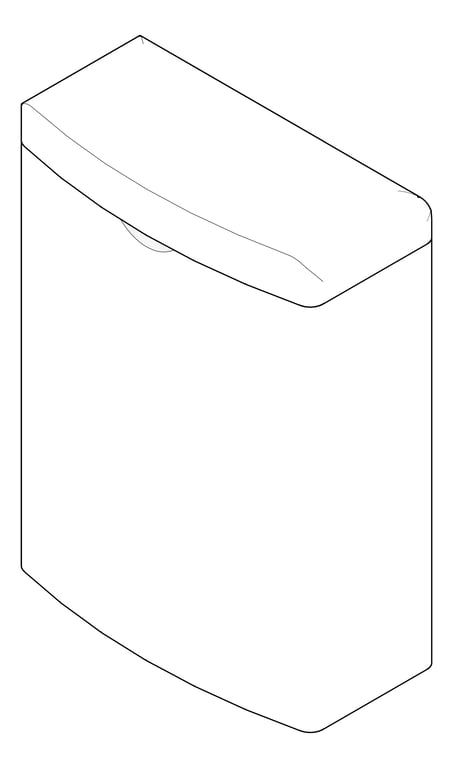

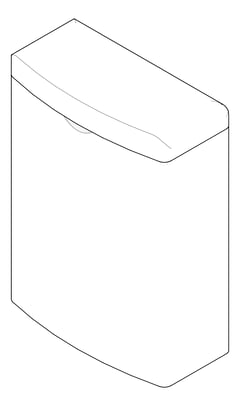

3D Documentation Image of SanitaryDisposal SurfaceMount ASI Roval

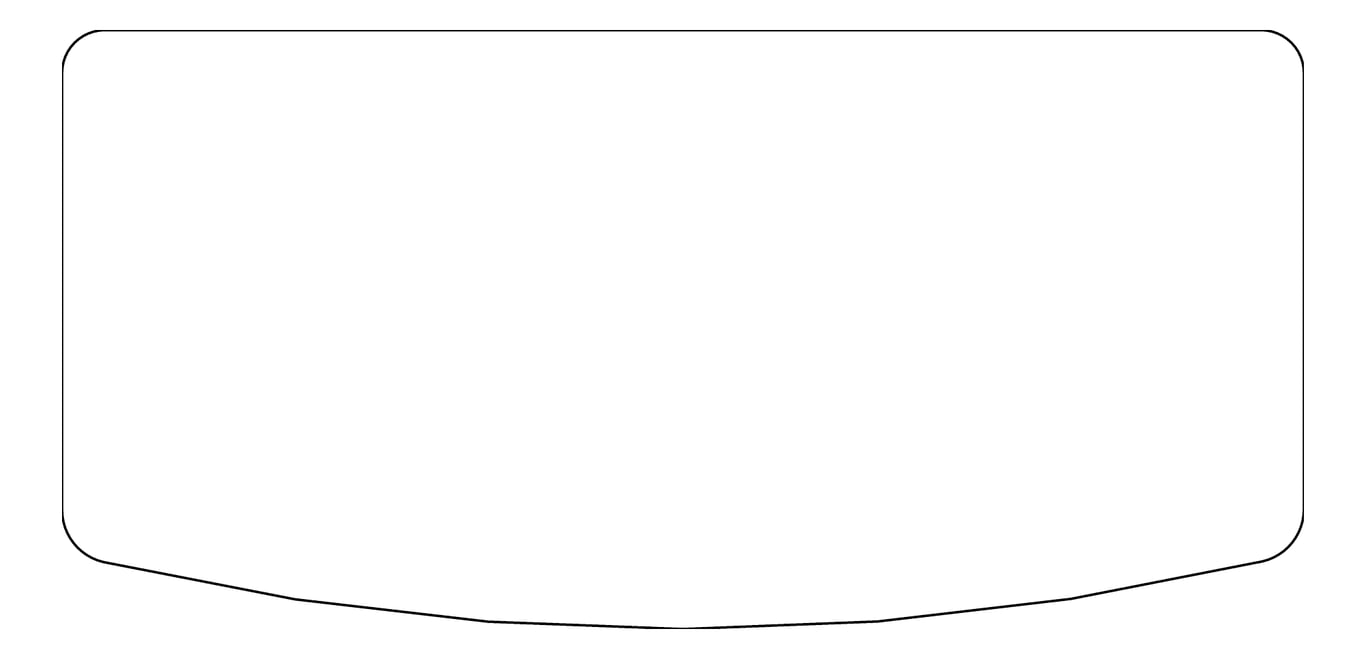

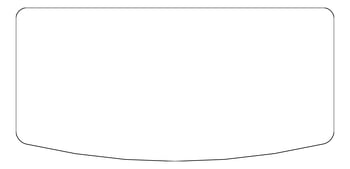

Plan Image of SanitaryDisposal SurfaceMount ASI Roval

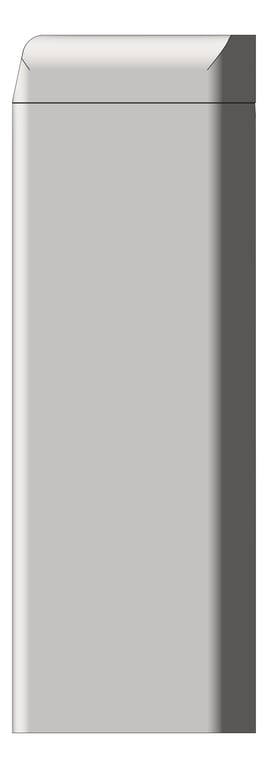

Left Image of SanitaryDisposal SurfaceMount ASI Roval

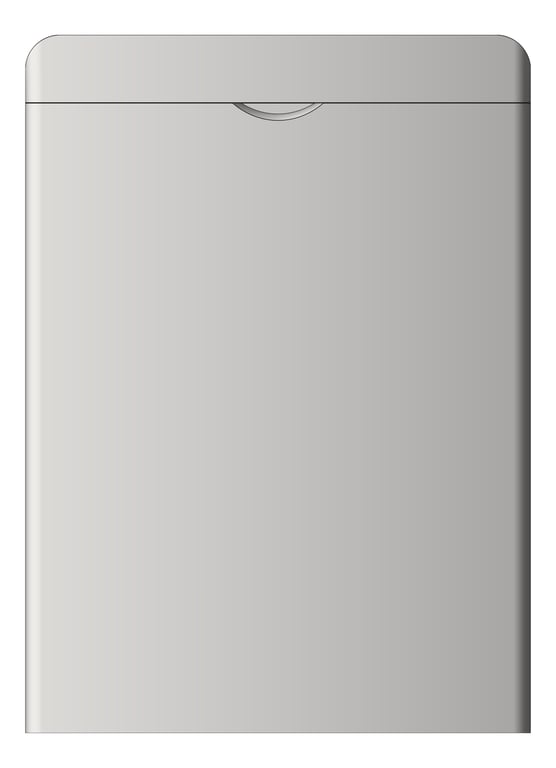

Front Image of SanitaryDisposal SurfaceMount ASI Roval
20852__ASI-SurfaceMountedSanitaryWasteReceptacle@2x.png Image of SanitaryDisposal SurfaceMount ASI Roval

SanitaryDisposal SurfaceMount ASI Roval

Cabinet front is formed seamless and capacity of the unit is 1 gal. (3.8 L). Unit is 22 gauge type 304 stainless steel alloy 18-8 with satin finish. Receptacle full top edge is hemmed with return to inside for user and service safety. Receptacle is screw-mounted to wall or partition through concealed keyhole slots provided through rear panel.

User lifts lid to deposit waste material. Unload unit by either removing the disposable wax paper liner bag (by others) or unhooking the unit from the mounting screws and inverting to empty into appropriate bulk collection container.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
7 1/4"
Depth
3 1/2"
Height
10"
Model
20852
