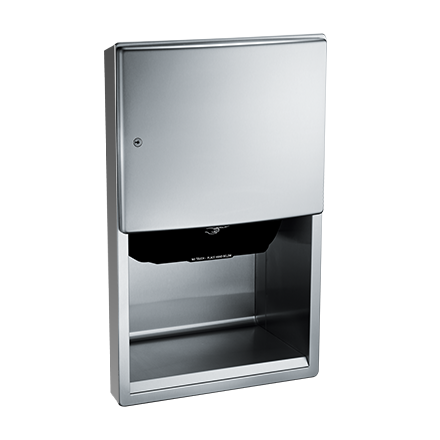

Image of RollPaperDispenser SemiRecessed ASI Roval Electric

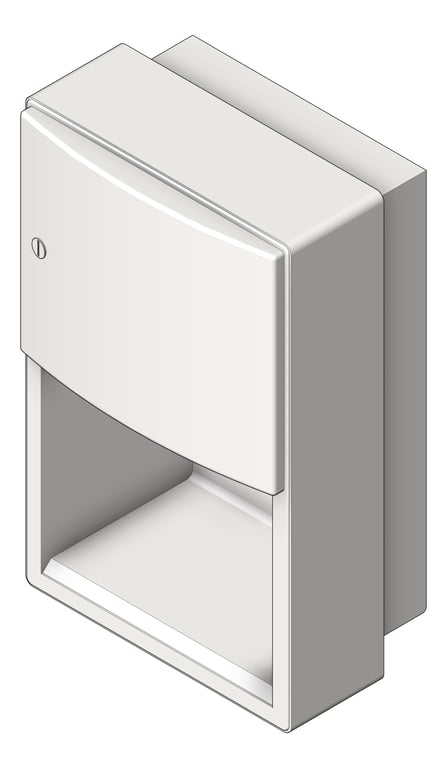

3D Shaded Image of RollPaperDispenser SemiRecessed ASI Roval Electric

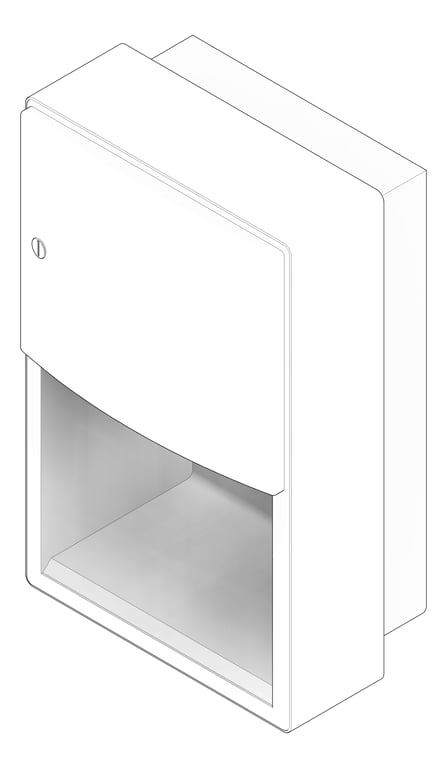

3D Documentation Image of RollPaperDispenser SemiRecessed ASI Roval Electric

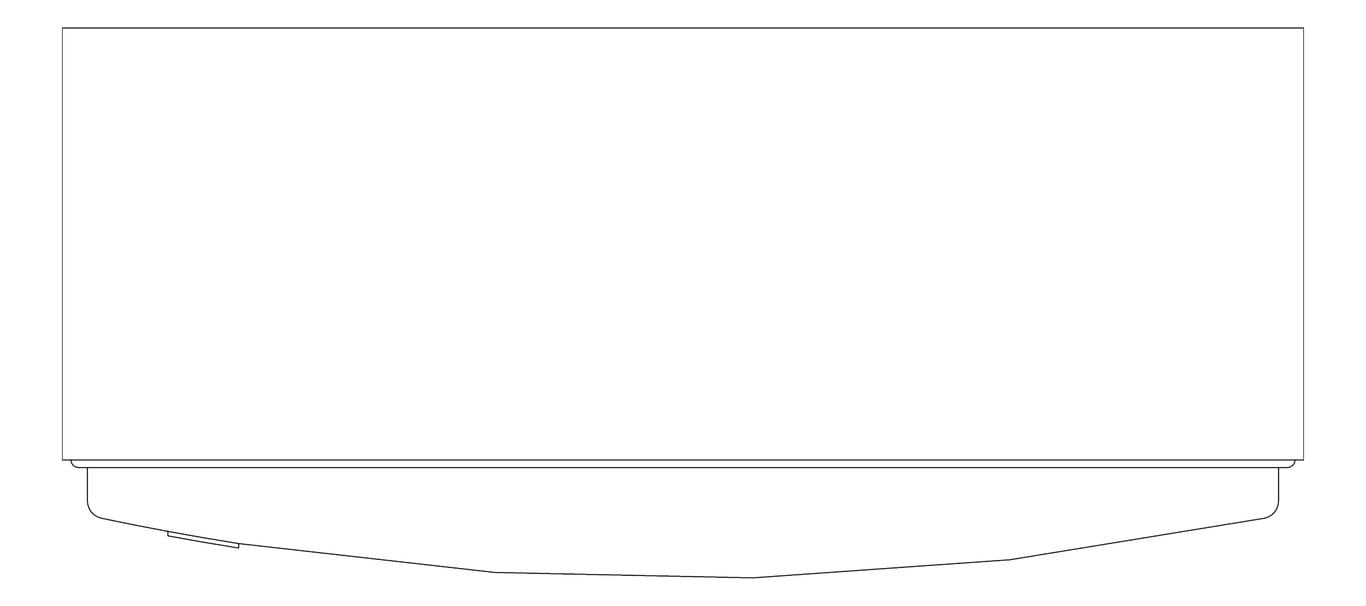

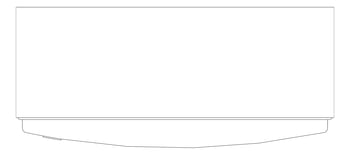

Plan Image of RollPaperDispenser SemiRecessed ASI Roval Electric

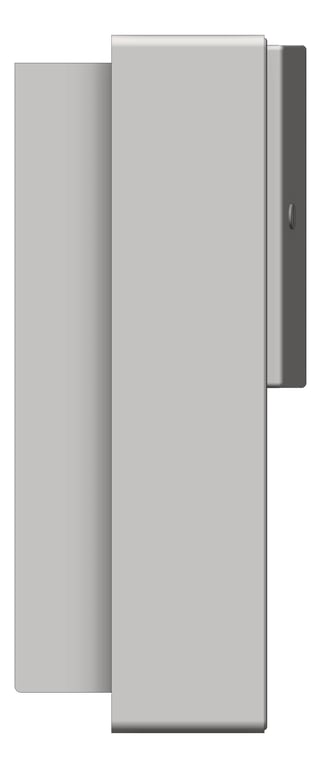

Left Image of RollPaperDispenser SemiRecessed ASI Roval Electric

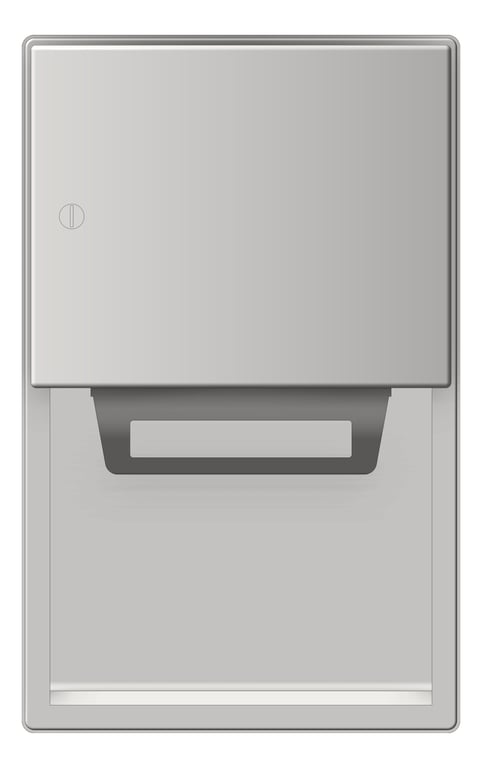

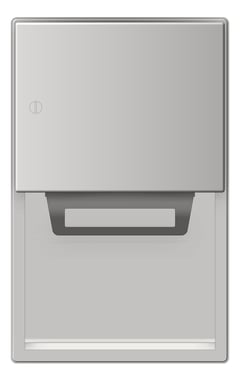

Front Image of RollPaperDispenser SemiRecessed ASI Roval Electric
204523A-AC-6.png Image of RollPaperDispenser SemiRecessed ASI Roval Electric

RollPaperDispenser SemiRecessed ASI Roval Electric

Fabricated of 22 gauge stainless steel with satin finish. Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted. Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.

Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished manually. LED indicates sensing and operation. Locking door prevents unauthorized access and roll removal.

Powered by AC plug-in adapter.

Semi-recessed with stainless steel collar.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
17 19/32"
Depth
11 11/16"
Height
28"
Model
204523AC-6
