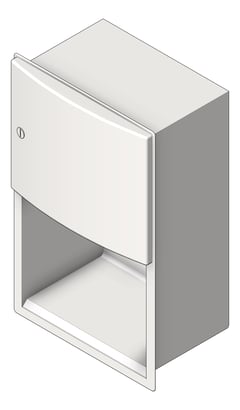

3D Shaded Image of RollPaperDispenser Recessed ASI Roval Battery

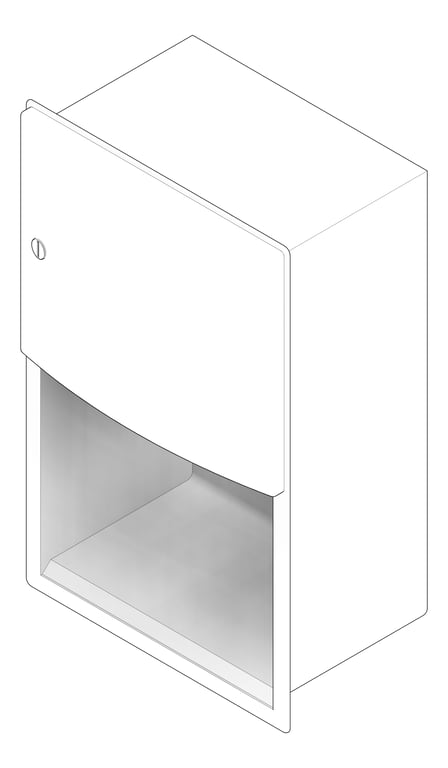

3D Documentation Image of RollPaperDispenser Recessed ASI Roval Battery

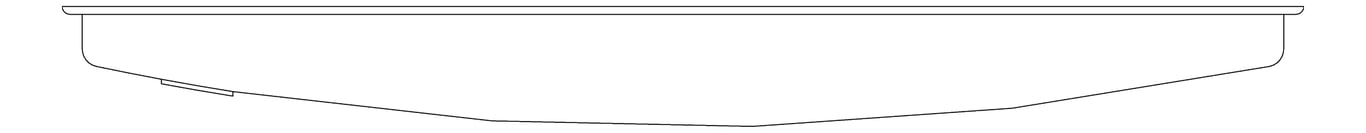

Plan Image of RollPaperDispenser Recessed ASI Roval Battery

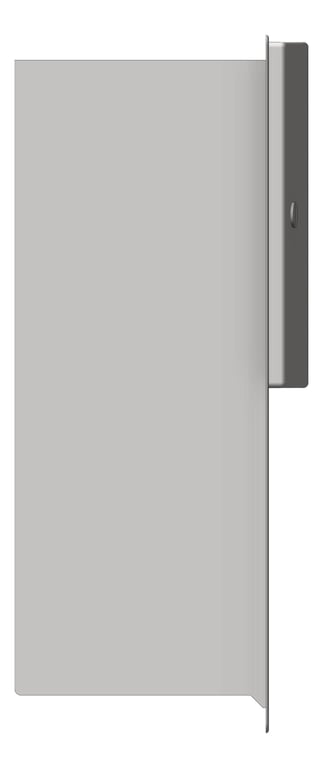

Left Image of RollPaperDispenser Recessed ASI Roval Battery

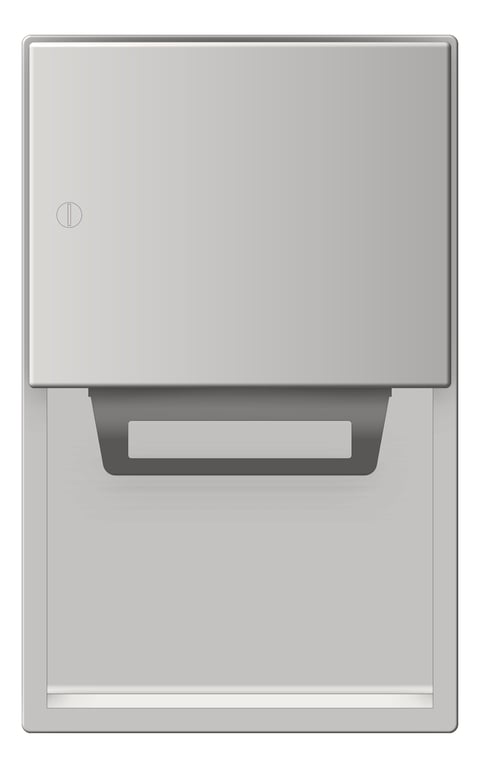

Front Image of RollPaperDispenser Recessed ASI Roval Battery
204523A_ASI-RecessedAutomaticRollPaperTowelDispenser@2x.png Image of RollPaperDispenser Recessed ASI Roval Battery

RollPaperDispenser Recessed ASI Roval Battery

Fabricated of 22 gauge stainless steel with satin finish. Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted. Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.

Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished and batteries are replaced manually. LED indicates sensing and battery condition. Locking door prevents unauthorized access and roll removal.

Powered by 4 D-size batteries (not included).

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
17 3/8"
Depth
11 11/16"
Height
27 3/4"
Model
204523A
Type Comments
