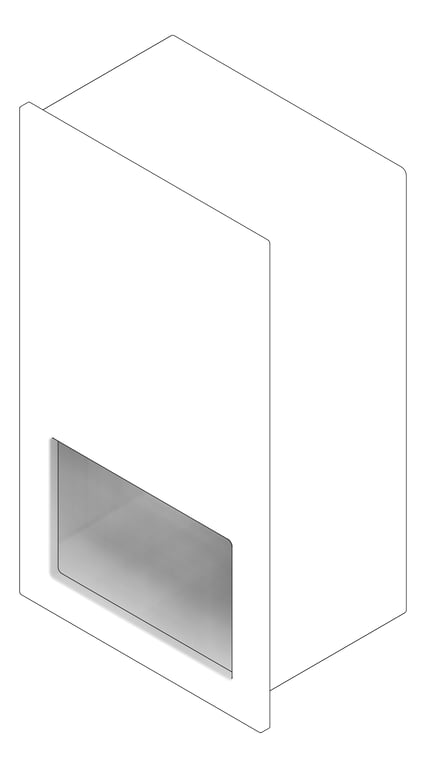

3D Shaded Image of RollPaperDispenser Recessed ASI Piatto Electric
3D Documentation Image of RollPaperDispenser Recessed ASI Piatto Electric
Plan Image of RollPaperDispenser Recessed ASI Piatto Electric

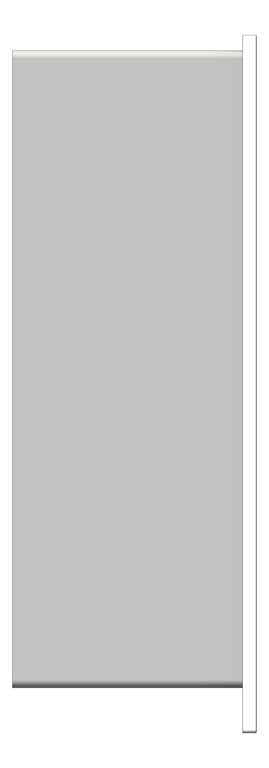

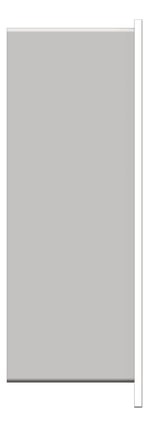

Left Image of RollPaperDispenser Recessed ASI Piatto Electric

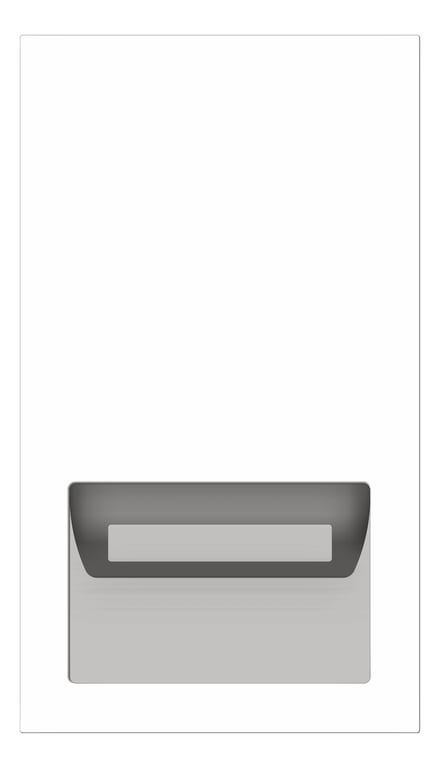

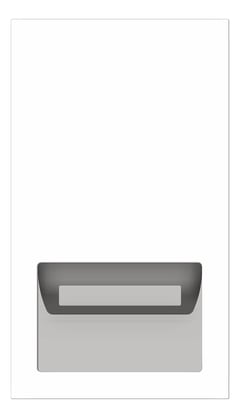

Front Image of RollPaperDispenser Recessed ASI Piatto Electric
645210A-AC-41_ASI-Piatto_Automatic-Roll-Paper-Towel-Dispenser@2x.png Image of RollPaperDispenser Recessed ASI Piatto Electric

RollPaperDispenser Recessed ASI Piatto Electric

This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110
• 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
16 1/16"
Depth
9 13/16"
Height
28"
Model
645210AC-00|645210AC-41
