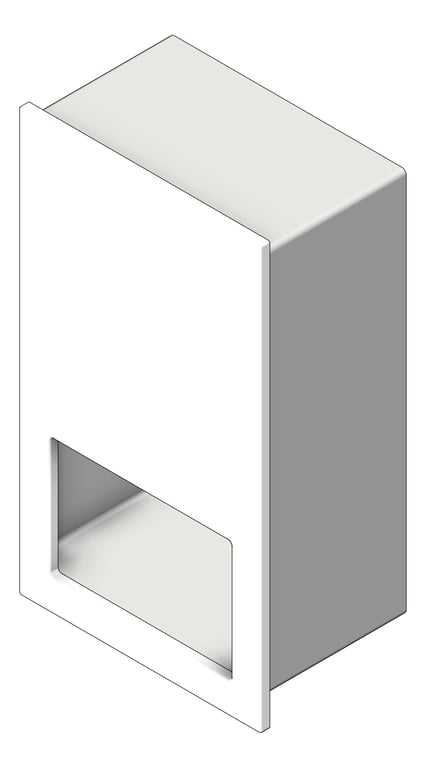

3D Shaded Image of RollPaperDispenser Recessed ASI Piatto Battery

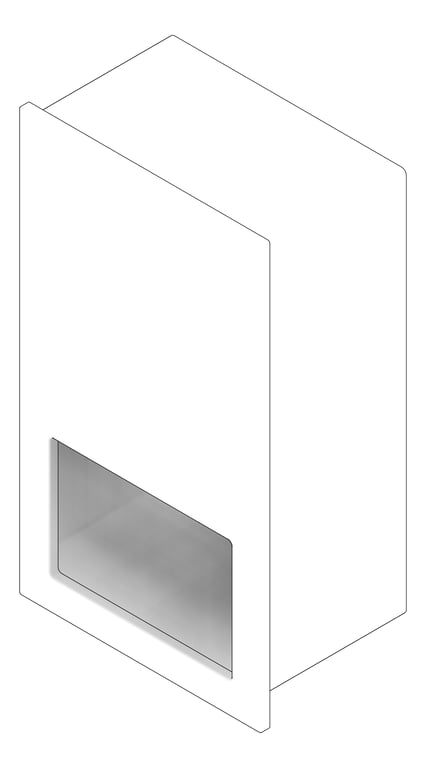

3D Documentation Image of RollPaperDispenser Recessed ASI Piatto Battery
Plan Image of RollPaperDispenser Recessed ASI Piatto Battery

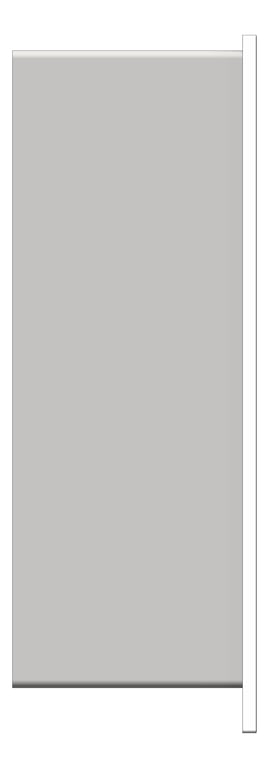

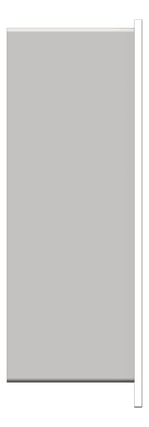

Left Image of RollPaperDispenser Recessed ASI Piatto Battery

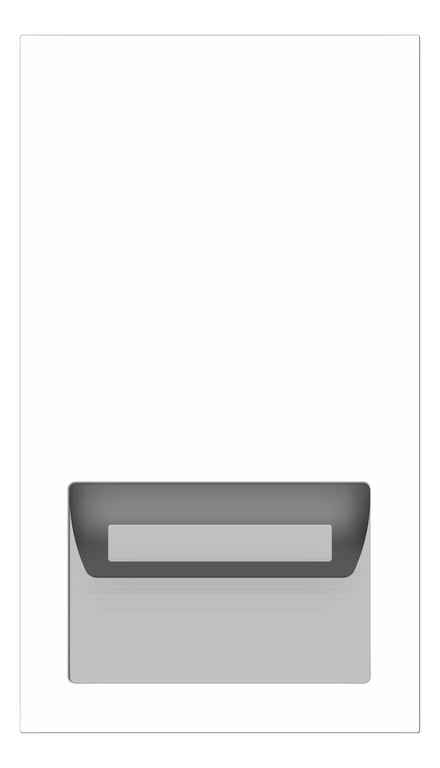

Front Image of RollPaperDispenser Recessed ASI Piatto Battery
645210A-AC-41_ASI-Piatto_Automatic-Roll-Paper-Towel-Dispenser@2x.png Image of RollPaperDispenser Recessed ASI Piatto Battery

RollPaperDispenser Recessed ASI Piatto Battery

This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Proximity sensing no-touch unit dispenses an owner-adjustable length per cycle from 8″ (203 mm) wide, 800 ft. (244 m) long rolls. Dispenser is powered by (4) D-size batteries (not supplied) and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
16 1/16"
Depth
9 13/16"
Height
28"
Model
645210A-00|645210A-41
Type Comments
Types
