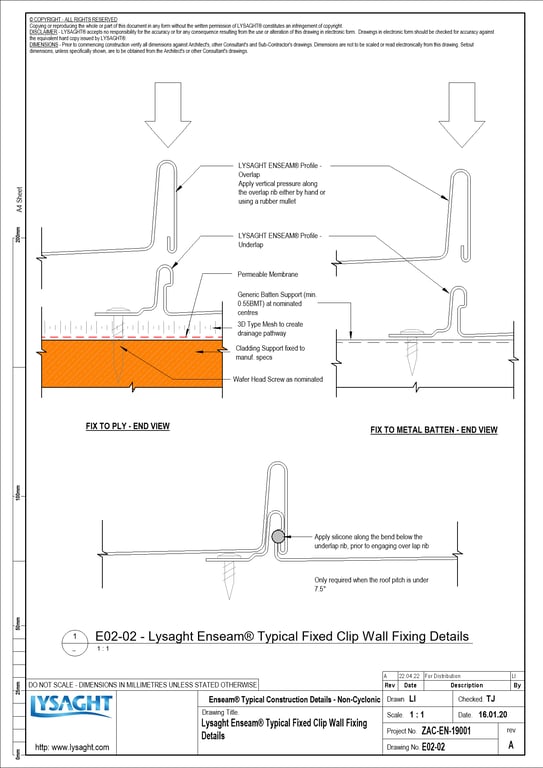

RepeatingDetail Lysaght Zenith Enseam

LYSAGHT ENSEAM® architectural cladding is a concealed fixed flat panel cladding system. ENSEAM® is structurally sound for direct fixed to steel battens and can also be fixed onto conventional supporting substrate such as plywood or fibre cement panels. The wide flat profile gives a modern architecturally designed premium finish.Key Information:Application: Roofing and wallingBase Metal Thickness: 0.55/0.75mmEffective Cover Width: 265/465mmRib Height: 38mmMinimum Pitch: 3 degrees (1:20)
fast_forward
Advanced Materials
Created By IGS BIM Solutions
remove_red_eye
Virtual Showroom Available
Manufacturer
Model
Enseam Detail
Types
