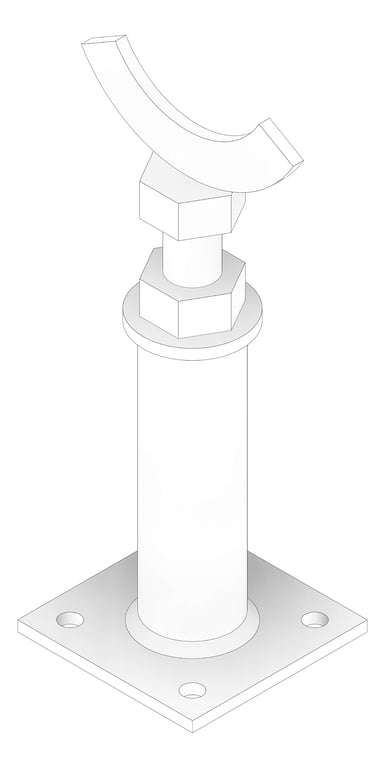

Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632
3D Shaded Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632

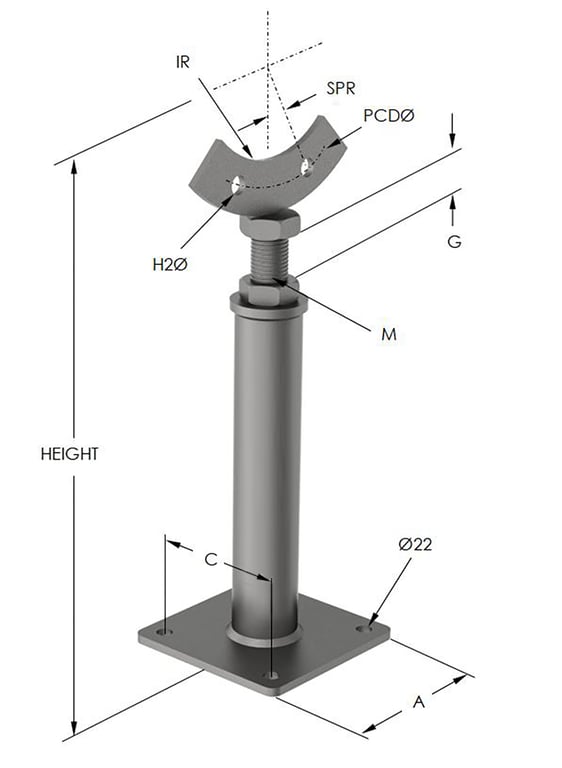

3D Documentation Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632

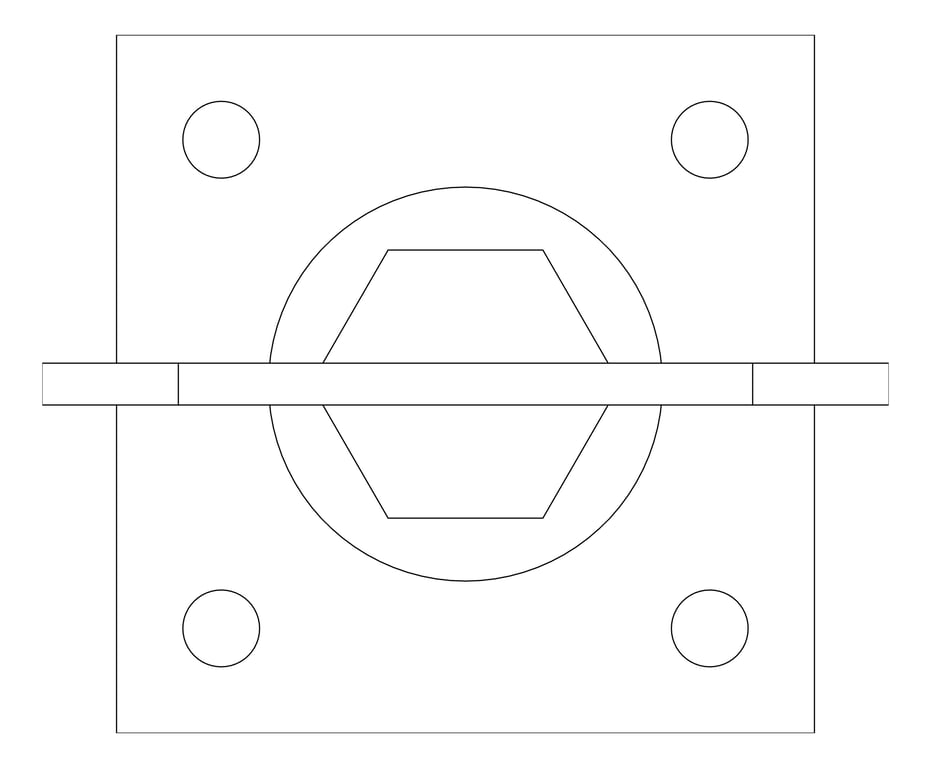

Plan Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632

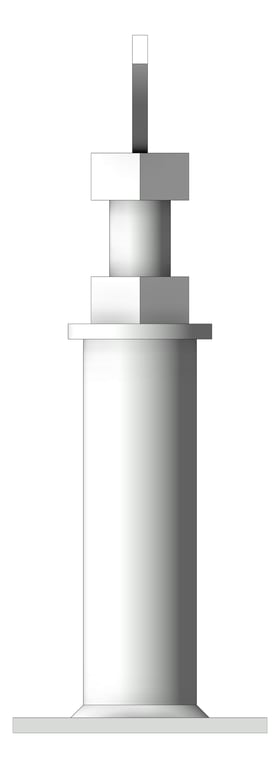

Left Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632

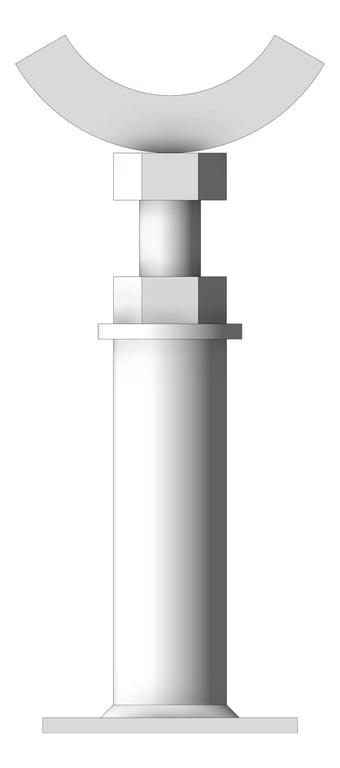

Front Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632
1AG632 Image of Pipe Support Height Adjustable Anchorage Flange Mount AG632

Pipe Support Height Adjustable Anchorage Flange Mount AG632

Galvanised carbon steel, designed for vertical support only. 120mm of adjustment - 60mm up/down. Not reccomended for BOP of under 300mm. Custom versions and addditional sizes available on request. BOP (Base of pipe) and flange details to be specified by customer.
view_module
Multi Format
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
Model
AG632-21
ModifiedIssue
20200612
CreatedBy
IGS BIM Solutions
Manufacturer
Anchorage
Type Catalog
Yes
Types
