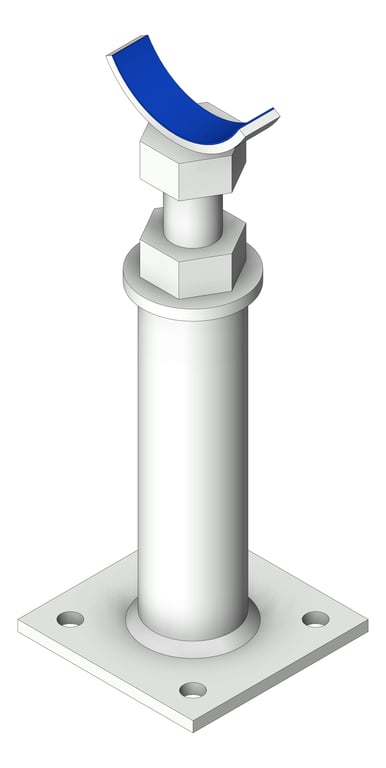

3D Shaded Image of Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634

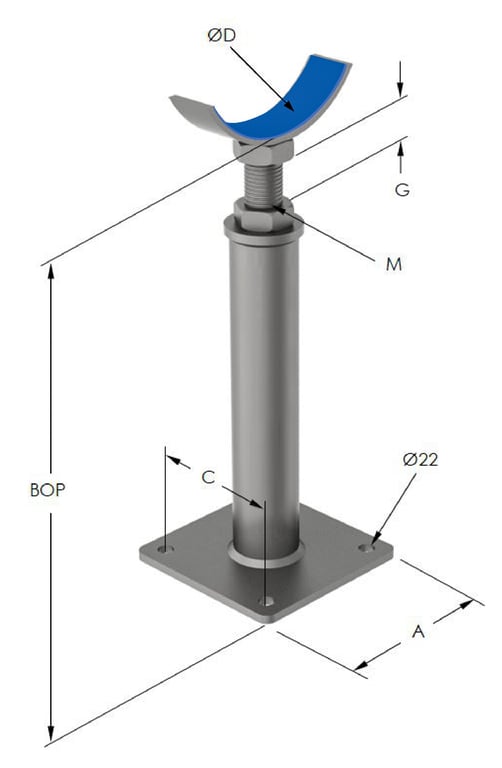

3D Documentation Image of Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634

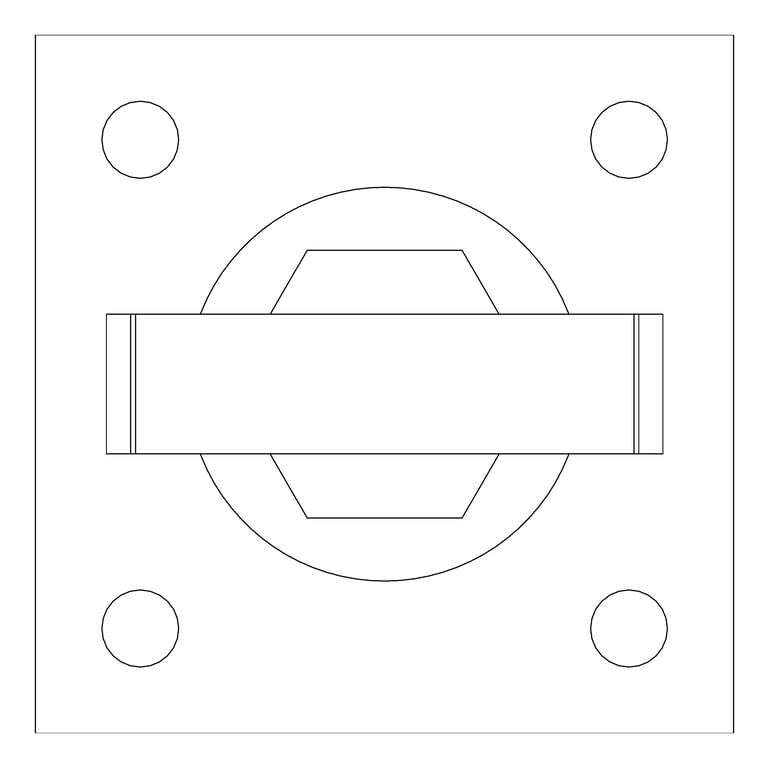

Plan Image of Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634

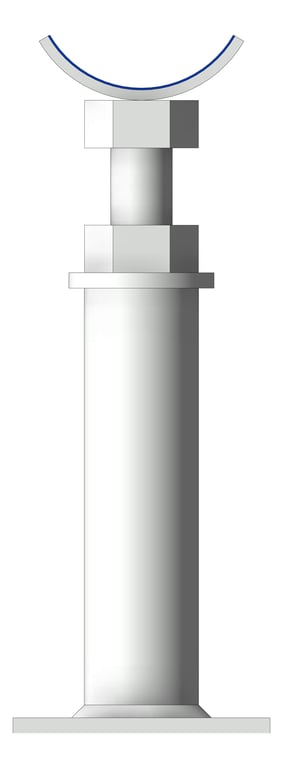

Left Image of Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634

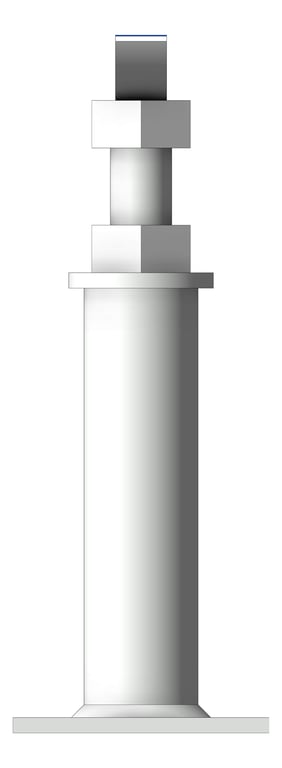

Front Image of Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634
1AG634 Image of Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634

Pipe Support Height Adjustable Anchorage Cradle Mount Insulated AG634

Galvanised carbon steel, designed for vertical support only. 120mm of adjustment - 60mm up/down. Not recommended for BOP of under 300mm. Custom versions and additional sizes available on request. BOP (Base of pipe) to be specified by customer.
view_module
Multi Format
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
CreatedBy
IGS BIM Solutions
Manufacturer
Anchorage
Model
AG634-021
ModifiedIssue
20220131
Type Catalog
Yes
Types
