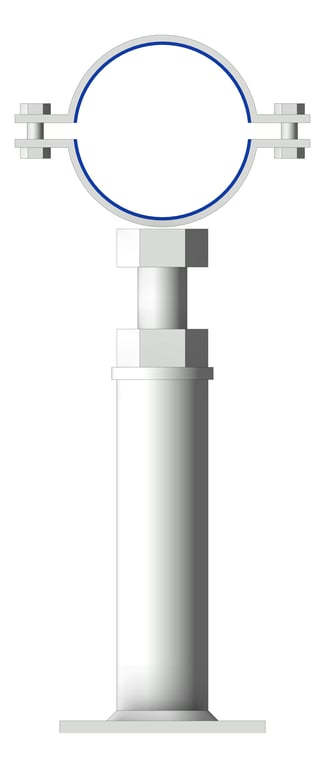

Image of Pipe Support Height Adjustable Anchorage Clamp Mount Insulated AG636

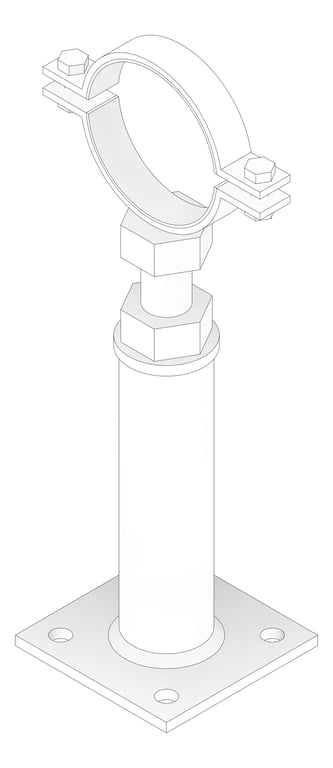

3D Shaded Image of Pipe Support Height Adjustable Anchorage Clamp Mount Insulated AG636

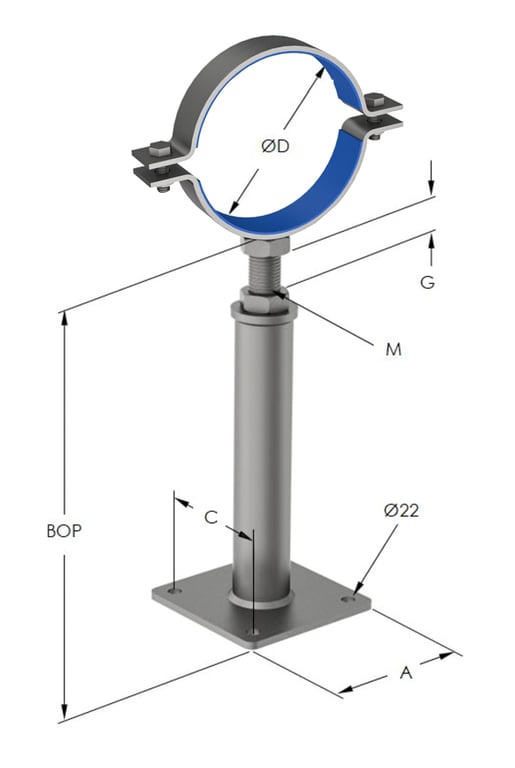

3D Documentation Image of Pipe Support Height Adjustable Anchorage Clamp Mount Insulated AG636

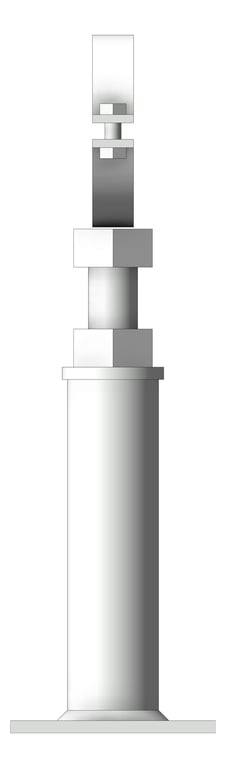

Left Image of Pipe Support Height Adjustable Anchorage Clamp Mount Insulated AG636

Pipe Support Height Adjustable Anchorage Clamp Mount Insulated AG636

Name: PipeSupport Adjustable Anchorage ClampMount Insulated
Brand: Anchorage
Availability: InStock

Galvanised carbon steel. Weight based on 1000 mm BOP. Designed for vertical support only. Adjustment of 60 mm up and down. Not recommended under 300 mm BOP. Clamp as per AG110. Custom versions and additional sizes available on request. BOP to be specified by the customer.
