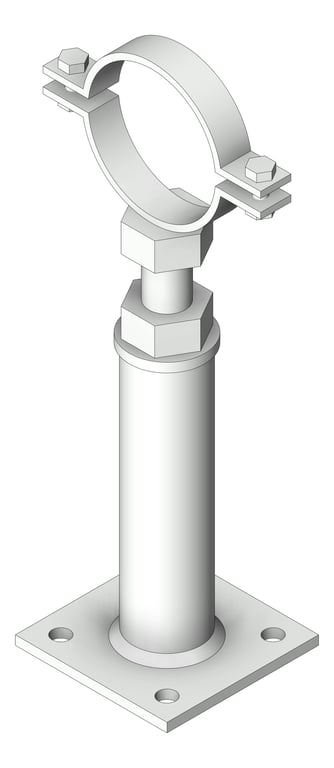

3D Shaded Image of Pipe Support Height Adjustable Anchorage Clamp Mount AG631

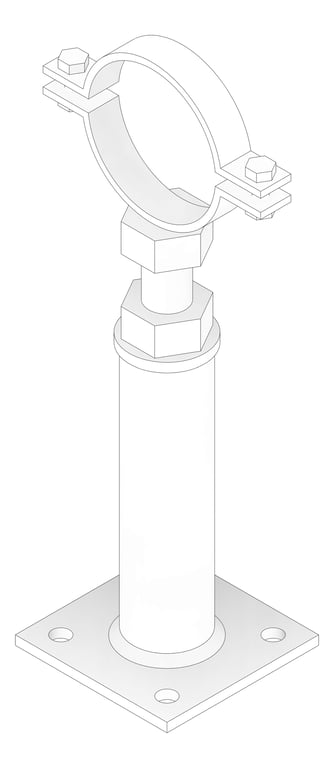

3D Documentation Image of Pipe Support Height Adjustable Anchorage Clamp Mount AG631

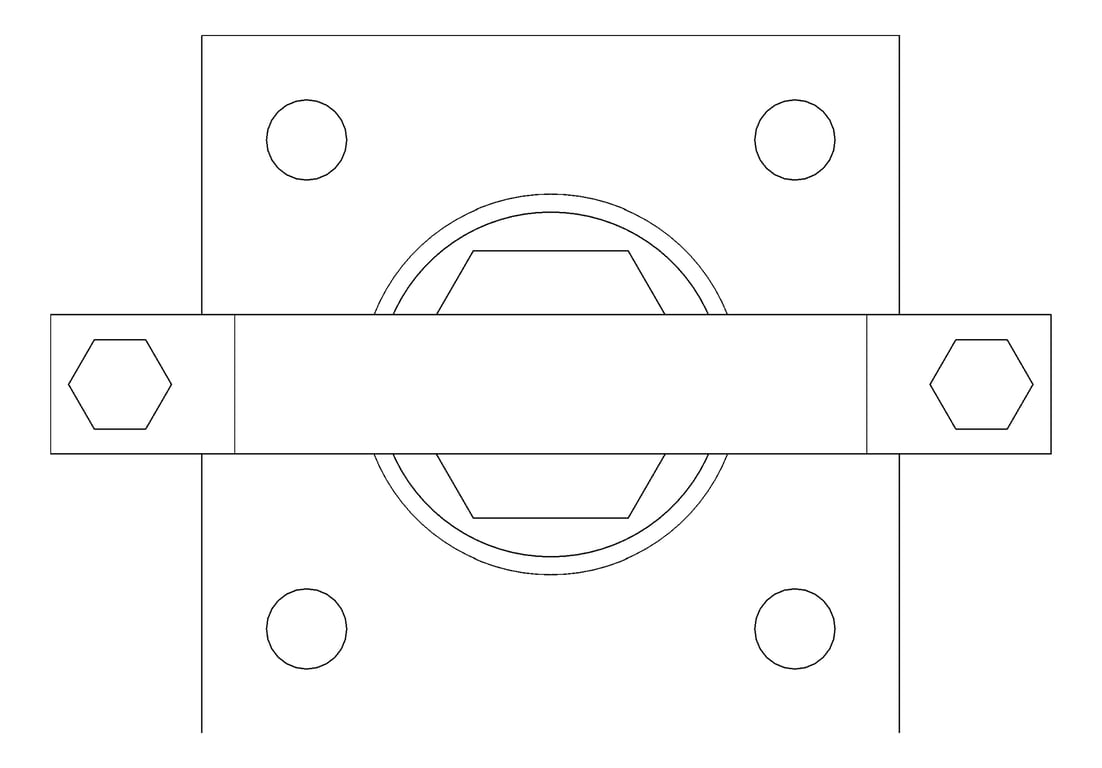

Plan Image of Pipe Support Height Adjustable Anchorage Clamp Mount AG631

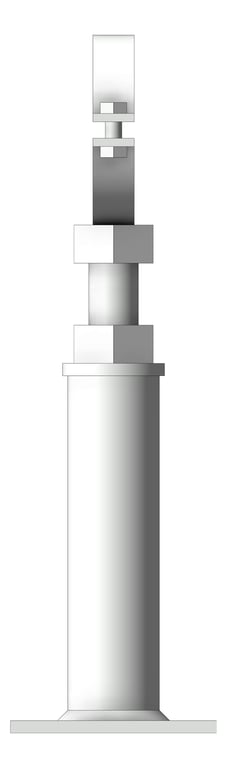

Left Image of Pipe Support Height Adjustable Anchorage Clamp Mount AG631

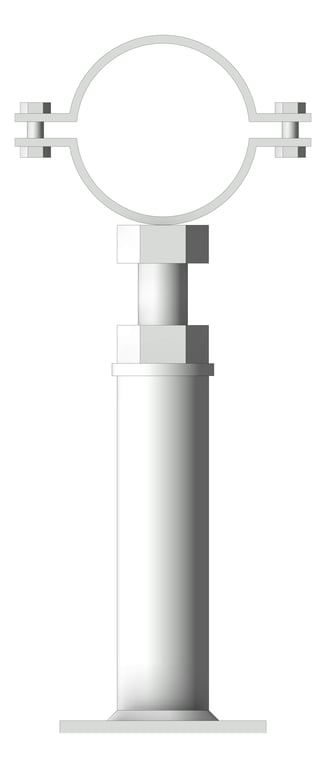

Front Image of Pipe Support Height Adjustable Anchorage Clamp Mount AG631

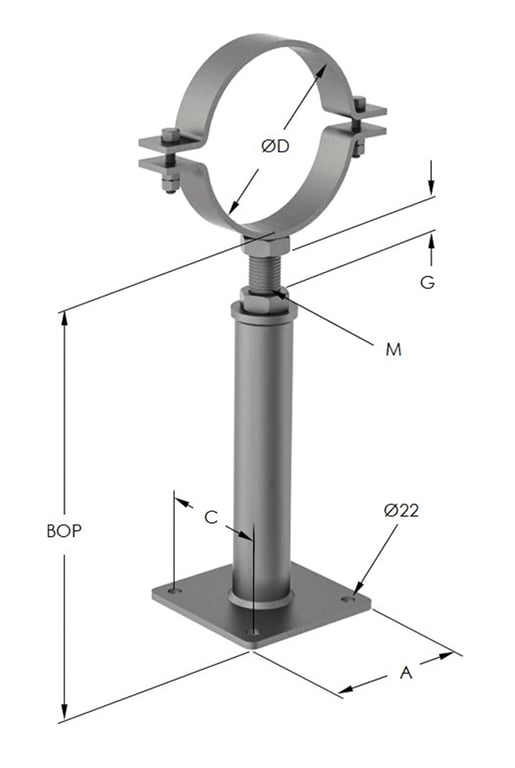

1AG631 Image of Pipe Support Height Adjustable Anchorage Clamp Mount AG631

Pipe Support Height Adjustable Anchorage Clamp Mount AG631

Galvanised carbon steel. Weight based on 1000 mm BOP. Designed for vertical support only. Adjustment of 60 mm up and down. Not recommended under 300 mm BOP. Clamp as per AG110. Custom versions and additional sizes available on request. BOP to be specified by the customer.
view_module
Multi Format
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
Model
AG631-21
ModifiedIssue
20200625
Manufacturer
Type Catalog
Yes
