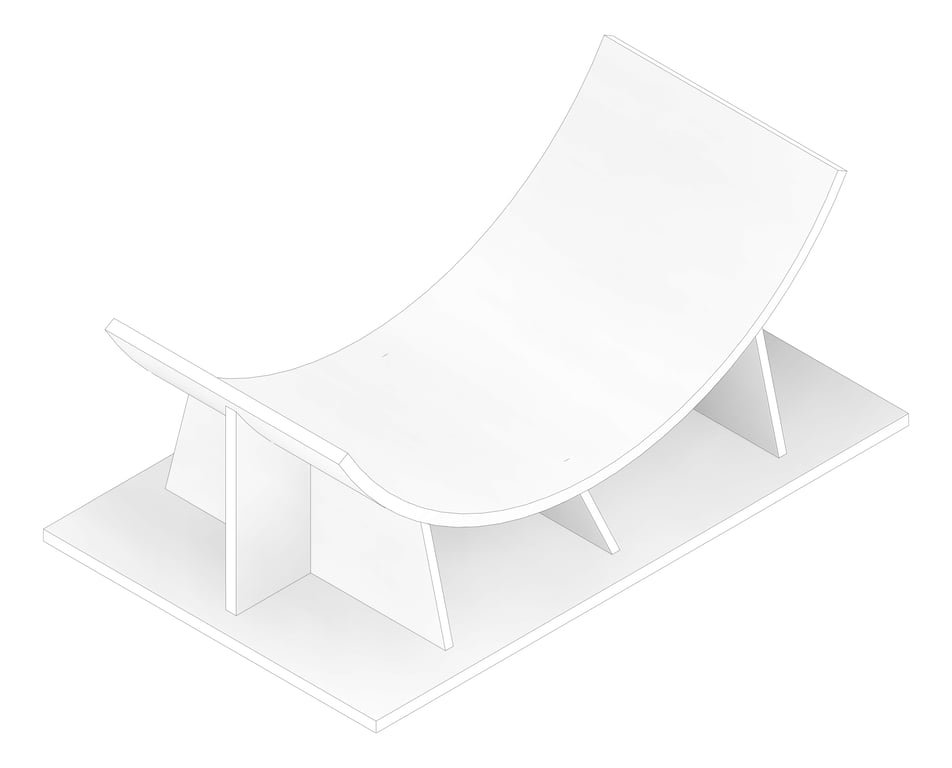

3D Documentation Image of Pipe Shoe Rigid Anchorage Pipe Cradle Heavy Duty AG550

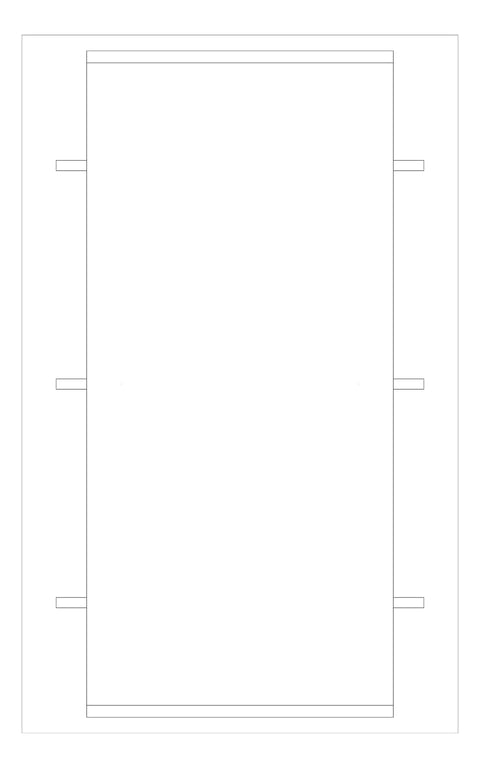

Plan Image of Pipe Shoe Rigid Anchorage Pipe Cradle Heavy Duty AG550

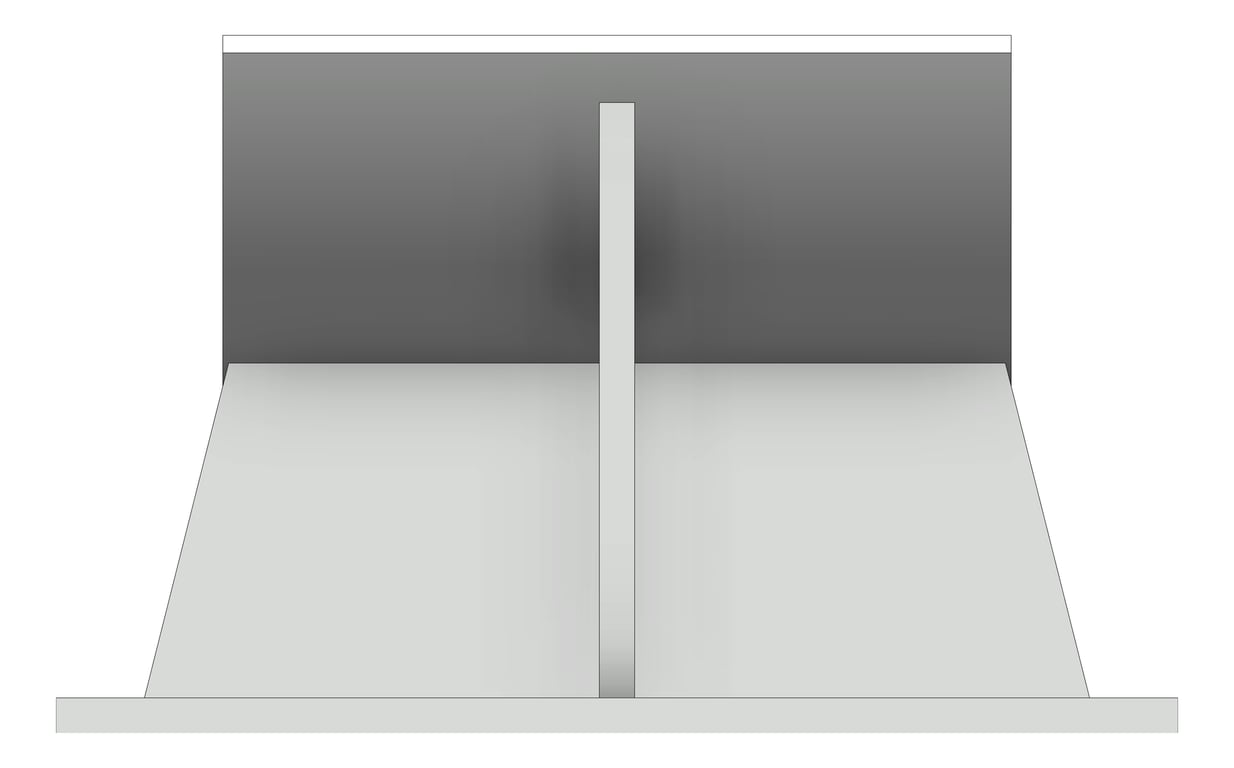

Left Image of Pipe Shoe Rigid Anchorage Pipe Cradle Heavy Duty AG550

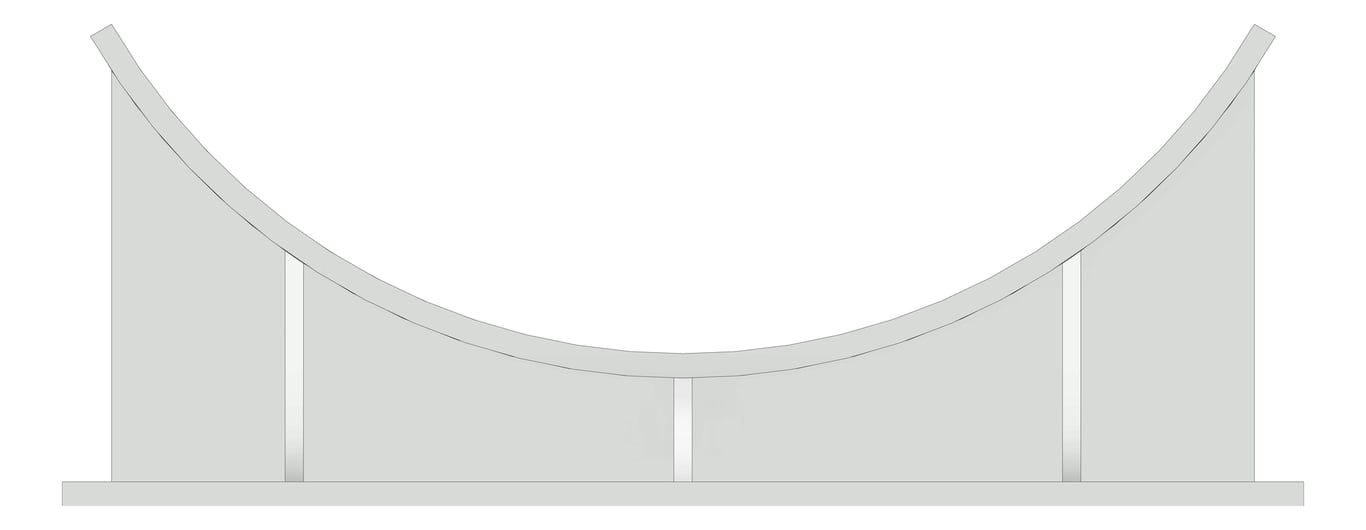

Front Image of Pipe Shoe Rigid Anchorage Pipe Cradle Heavy Duty AG550

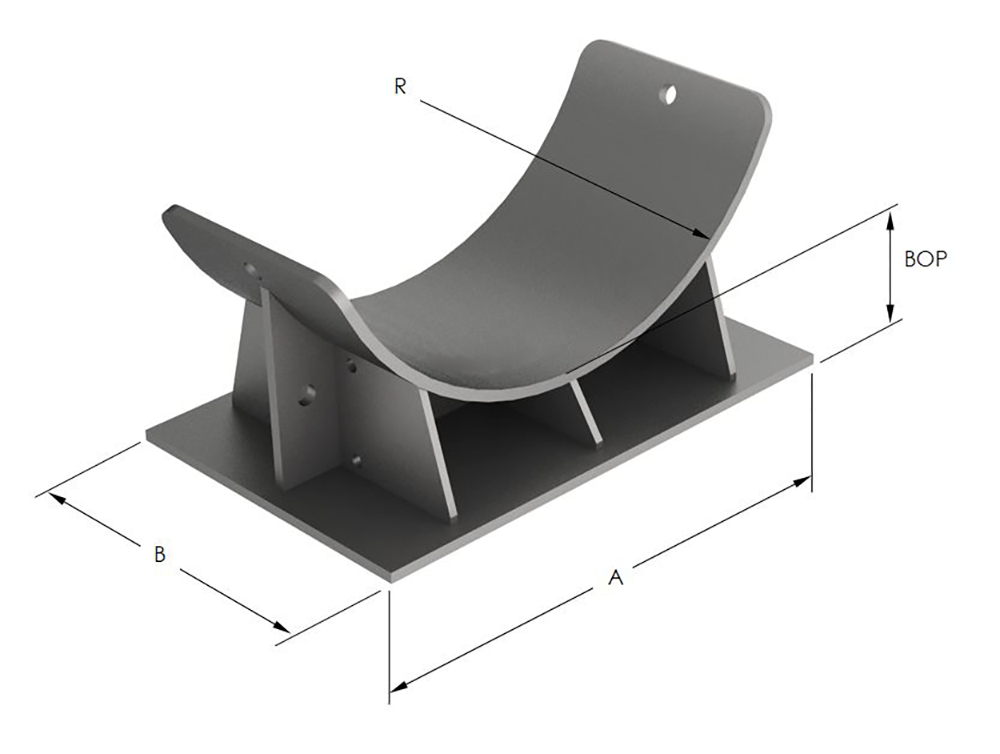

1AG550 Image of Pipe Shoe Rigid Anchorage Pipe Cradle Heavy Duty AG550

Pipe Shoe Rigid Anchorage Pipe Cradle Heavy Duty AG550

Galvanised carbon steel. Custom sizes & configurations available on request. Options include pipe cradle with top clamp. Available in stainless steel.

Multi Format
Created By IGS BIM Solutions
Bulk Download Options
Model
AG550-508
ModifiedIssue
20200529
CreatedBy
IGS BIM Solutions
Manufacturer
Anchorage
Type Catalog
Yes
Types
