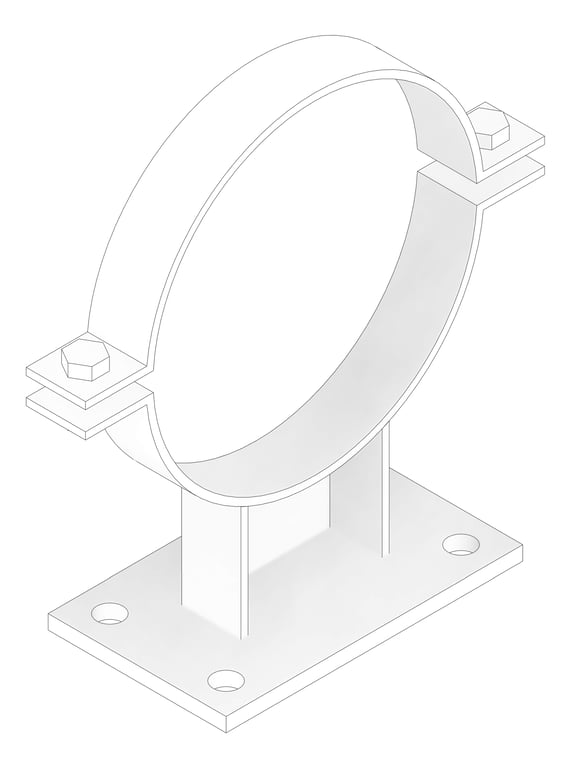

3D Documentation Image of Pipe Shoe Rigid Anchorage Compact Single Pipe Clamp Support AG565

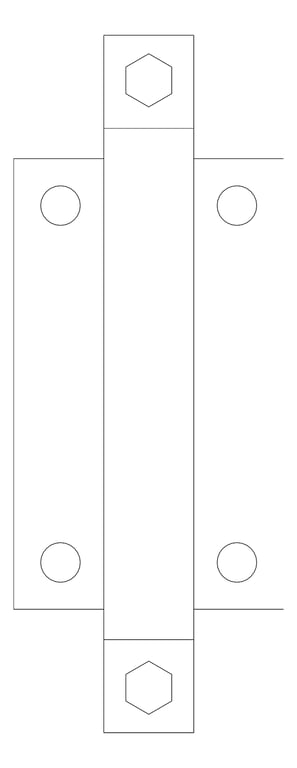

Plan Image of Pipe Shoe Rigid Anchorage Compact Single Pipe Clamp Support AG565

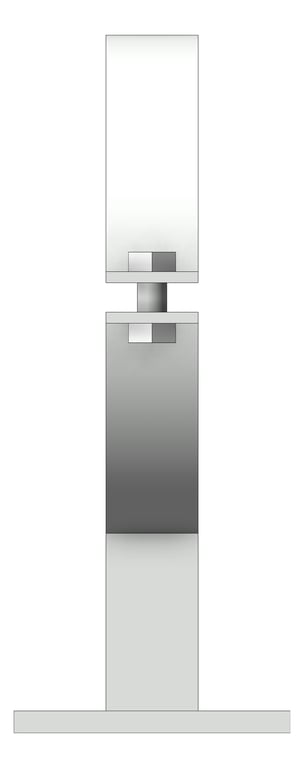

Left Image of Pipe Shoe Rigid Anchorage Compact Single Pipe Clamp Support AG565

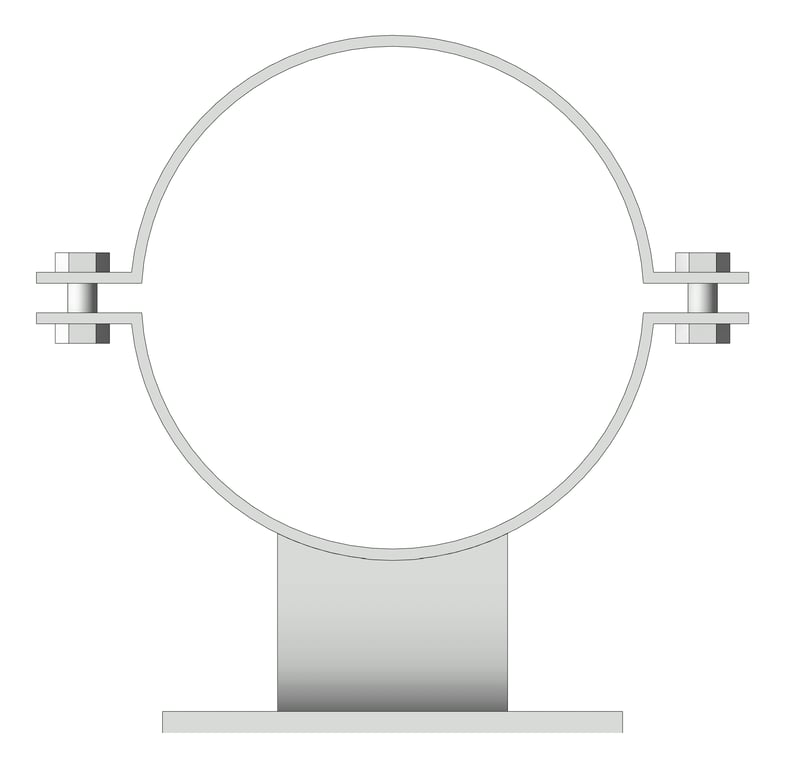

Front Image of Pipe Shoe Rigid Anchorage Compact Single Pipe Clamp Support AG565

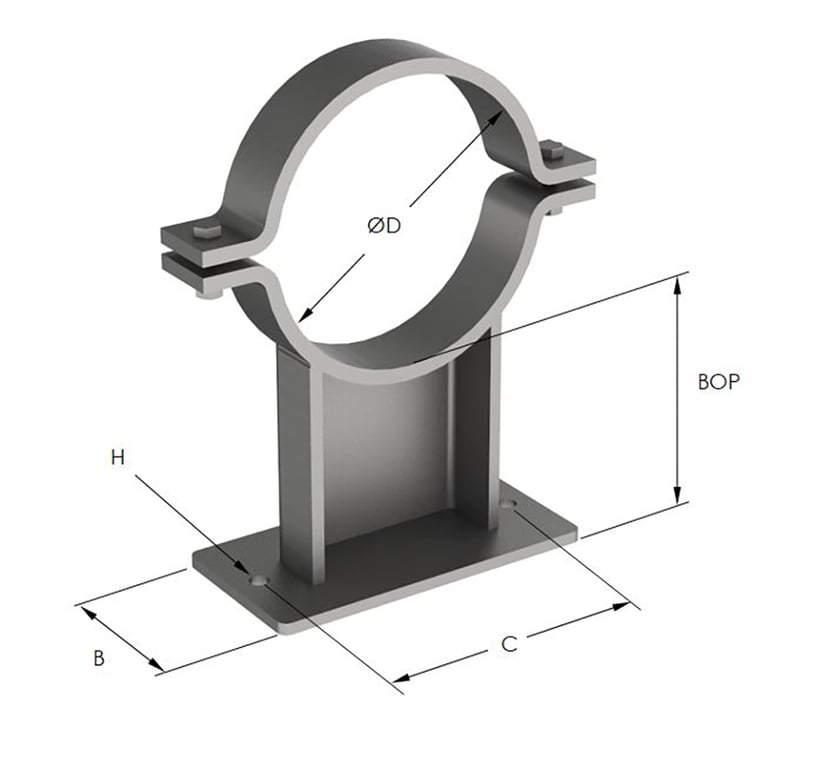

1AG565 Image of Pipe Shoe Rigid Anchorage Compact Single Pipe Clamp Support AG565

Pipe Shoe Rigid Anchorage Compact Single Pipe Clamp Support AG565

Galvanised carbon steel. For sliding applications where movement occurs. Also used with AG620. Custom sizes & configurations available. Also available in stainless steel.
view_module
Multi Format
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
Model
AG565-48
ModifiedIssue
20200612
CreatedBy
IGS BIM Solutions
Manufacturer
Anchorage
Type Catalog
Yes
Types
