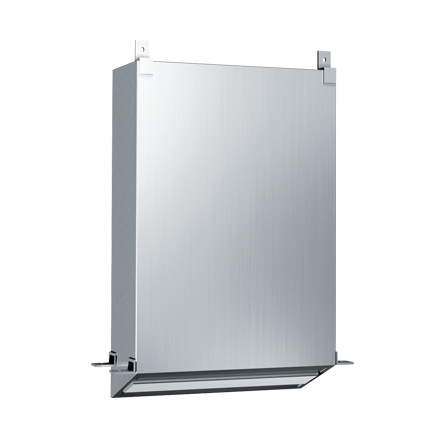

Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

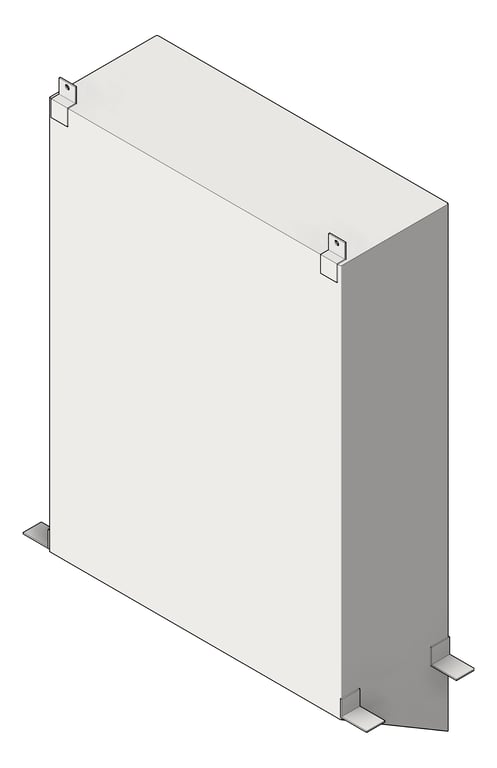

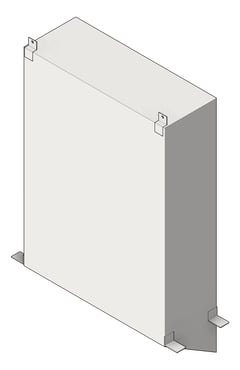

3D Shaded Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

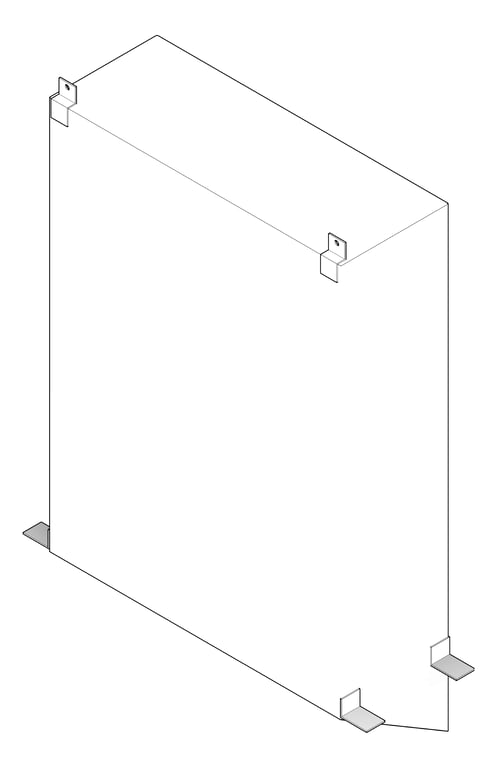

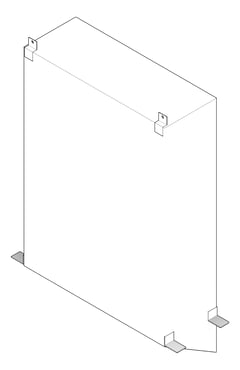

3D Documentation Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

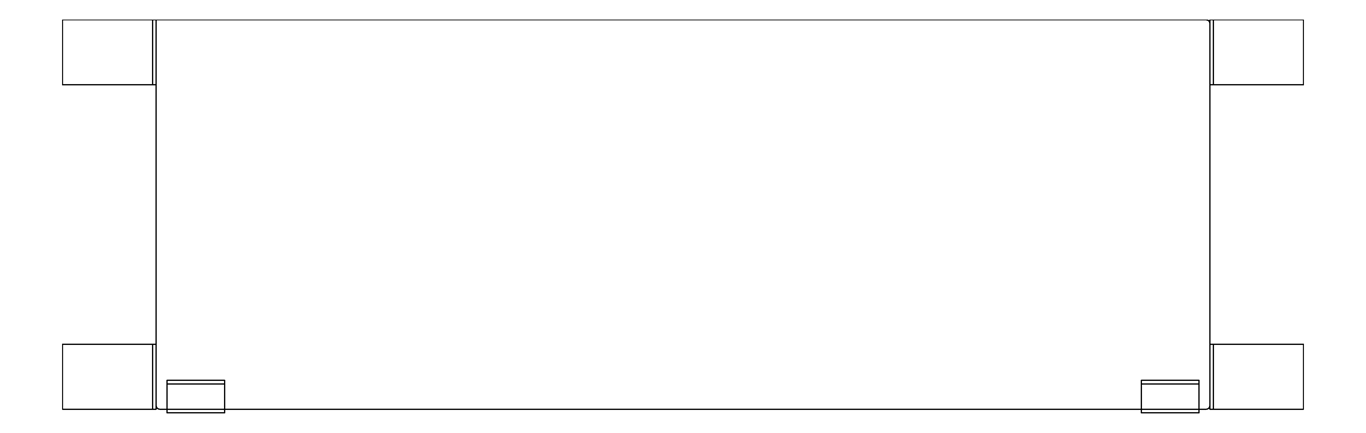

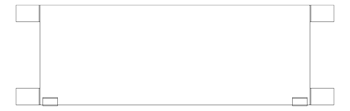

Plan Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

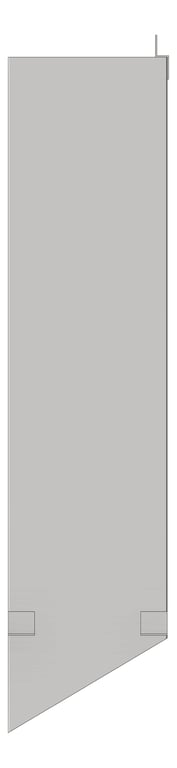

Left Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

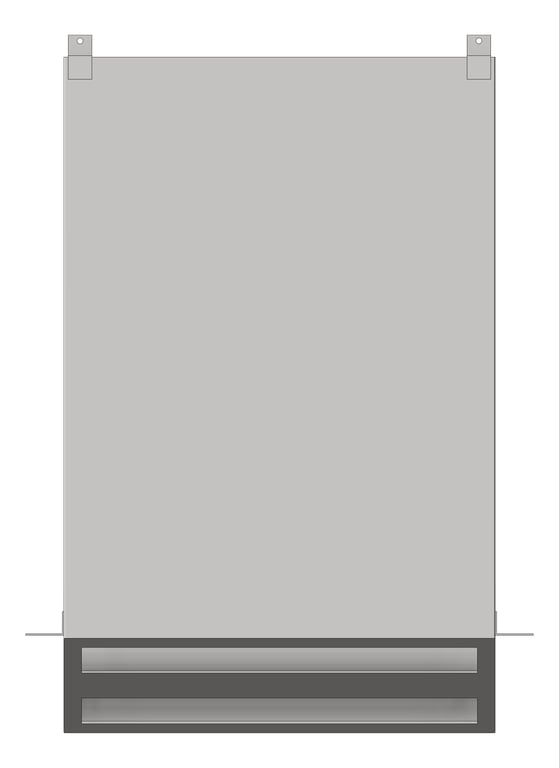

Front Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional
10-0439_ASIJDMacDonald_Paper_Towel_Dispenser_Concealed_Recessed_Web.png Image of PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

PaperDispenser ConcealedRecessed ASIJDMacDonald Traditional

This cabinet has 2 push-up flaps for bottom-filling with towels and dispenses 600 C-fold or 800 multi-fold paper towels. Designed to conceal the dispenser behind a mirror or wall so only the towel tray opening is visible. Satin finish.

*Note for Designers: Leave 152 mm clearance below towel tray opening for space to pull towels; units are installed before hanging mirror or applying finished wall.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
108 mm
Height
457 mm
Width
292 mm
Model
10-0439
ModifiedIssue
20221201.00
