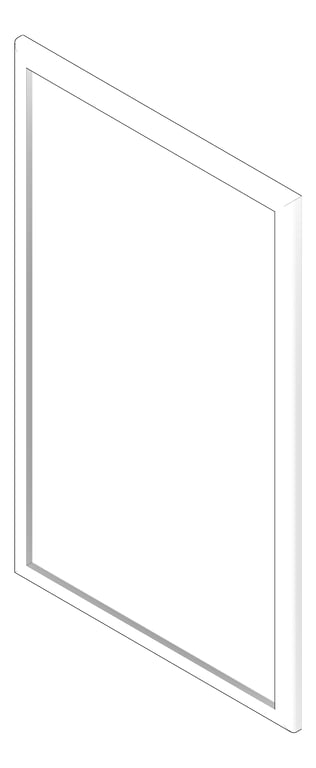

Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval

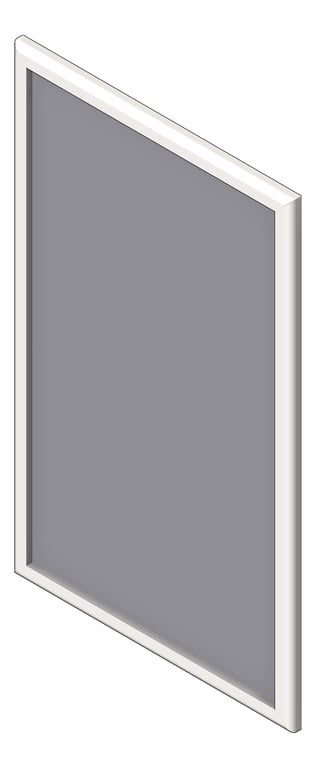

3D Shaded Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval
3D Documentation Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval
Plan Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval
Left Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval

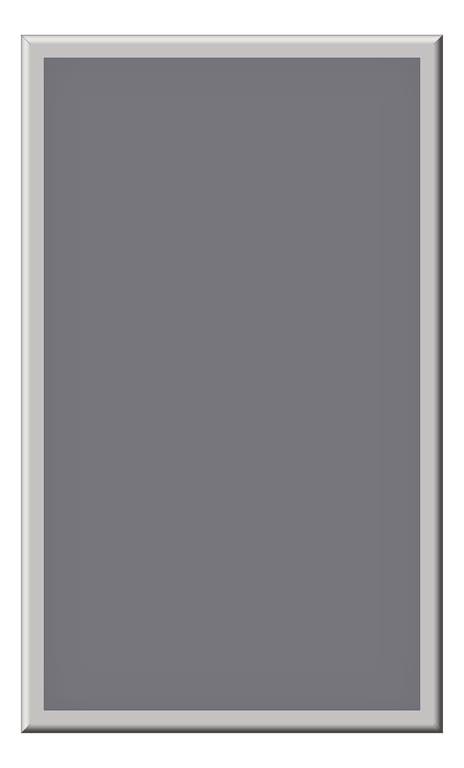

Front Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval

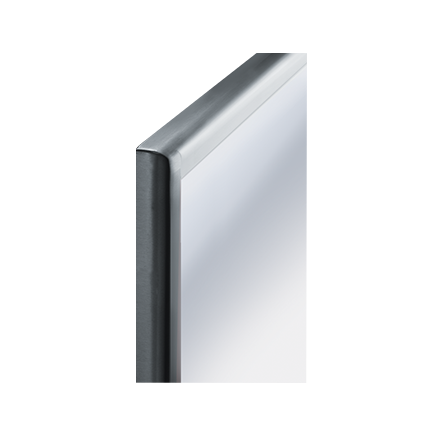

10-20650-B_ASIJDMacDonald_Mirror_Tempered_Glass_Web.png Image of Mirror TemperedGlass ASIJDMacDonald InterLok Roval

Mirror TemperedGlass ASIJDMacDonald InterLok Roval

Gently radiused edges match the curves of the ASI Roval™ design. Frame fabricated of 18 gauge type 304 stainless steel with satin finish and polished seamless mitered corners. Tempered glass. Supplied with an 18 gauge corrosion protected steel ‘H’ bracket for mounting. See chart for standard sizes.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
19 mm
Height
760 mm|910 mm|910 mm
Width
460 mm|610 mm
Model
ModifiedIssue
20221201.00
