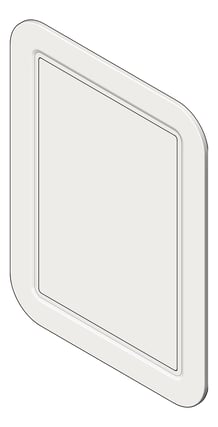

3D Shaded Image of Mirror SurfaceMount ASIJDMacDonald Security OnePiece

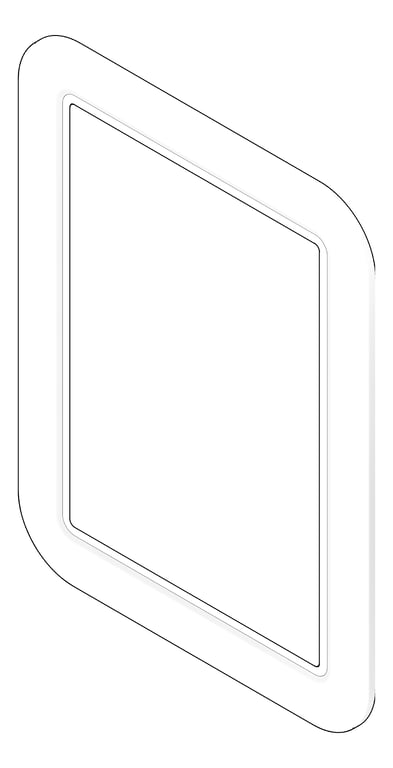

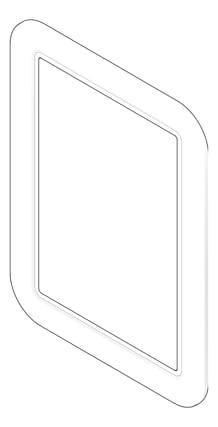

3D Documentation Image of Mirror SurfaceMount ASIJDMacDonald Security OnePiece
Plan Image of Mirror SurfaceMount ASIJDMacDonald Security OnePiece
Left Image of Mirror SurfaceMount ASIJDMacDonald Security OnePiece

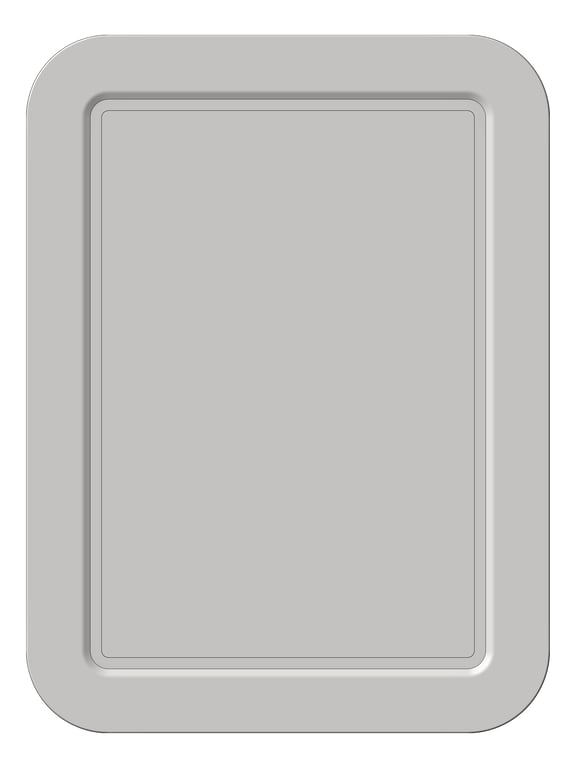

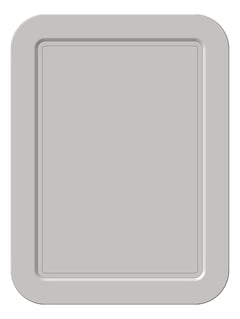

Front Image of Mirror SurfaceMount ASIJDMacDonald Security OnePiece

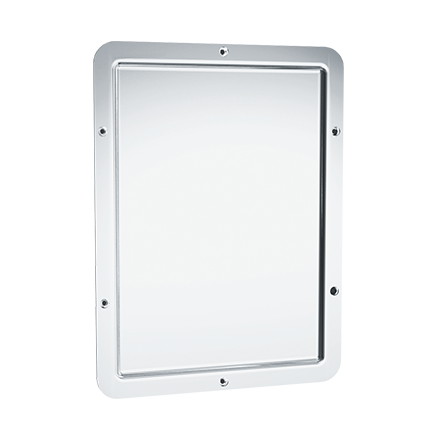

10-107_ASIJDMacDonald_Security_Mirror_Front_Mount_Web.png Image of Mirror SurfaceMount ASIJDMacDonald Security OnePiece

Mirror SurfaceMount ASIJDMacDonald Security OnePiece

Security Framed Mirror with Rounded Corners for Front Mounting to wall surface shall be fabricated of one piece formed alloy 18-8 stainless steel, type 304, No 18 gauge wit No 8 mirror polish. Installed unit shall project 6mm from wall. Mirror frame shall be provided with six (6) dimpled mounting holes for ¼” flat head screws. Six (6) ¼
• 20×2” long pin-Torx flat head machine screws shall be supplied for use in installation.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
6 mm
Height
406 mm
Width
305 mm
Model
10-107
ModifiedIssue
20221201.00
