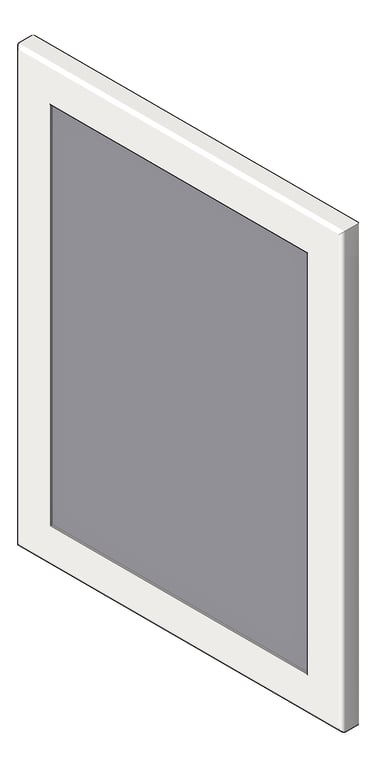

3D Shaded Image of Mirror SurfaceMount ASIJDMacDonald Security Framed

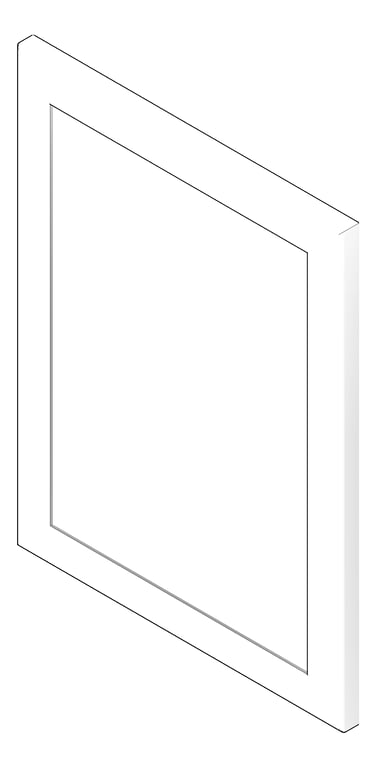

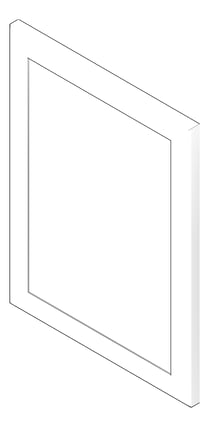

3D Documentation Image of Mirror SurfaceMount ASIJDMacDonald Security Framed
Plan Image of Mirror SurfaceMount ASIJDMacDonald Security Framed
Left Image of Mirror SurfaceMount ASIJDMacDonald Security Framed

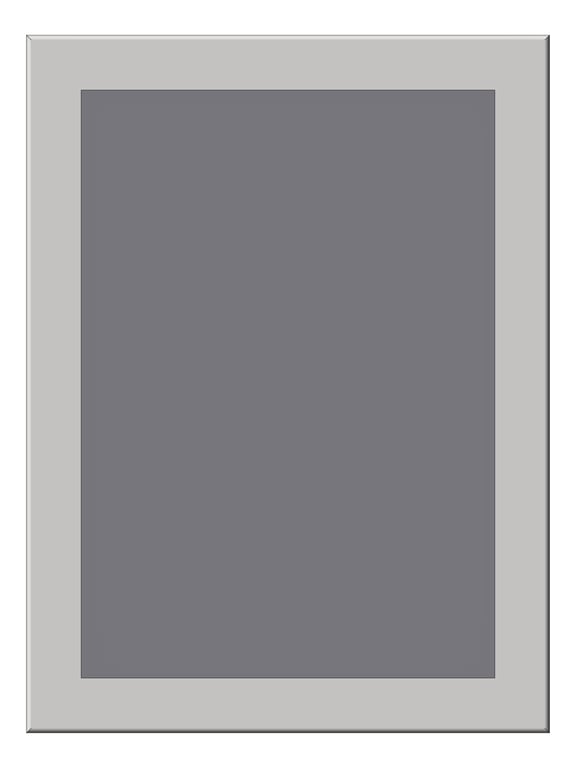

Front Image of Mirror SurfaceMount ASIJDMacDonald Security Framed

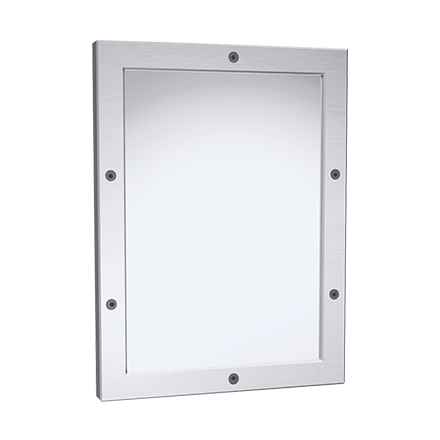

10-105-14_ASIJDMacDonald_Security_Mirror_Front_Mount_Web.png Image of Mirror SurfaceMount ASIJDMacDonald Security Framed

Mirror SurfaceMount ASIJDMacDonald Security Framed

Surface Mounted Security Framed Mirror shall have frame fabricated of 14 gauge alloy 18-8 stainless steel, type 304. Structural assembly of frame components shall be of welded construction with six (6) mounting holes. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Mirror glazing will be as specified in the Glazing Options chart. Unit will be provided with fiberboard backing.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
16 mm
Height
406 mm
Width
305 mm
Model
10-105-14
ModifiedIssue
20221201.00
