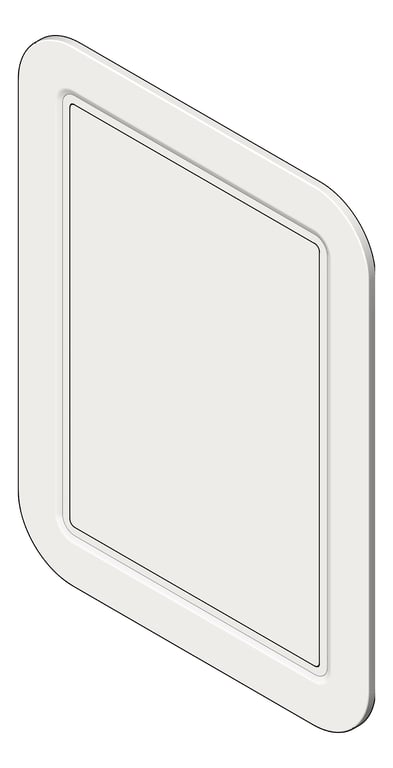

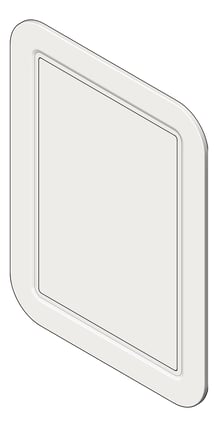

3D Shaded Image of Mirror RearMount ASIJDMacDonald Security OnePiece

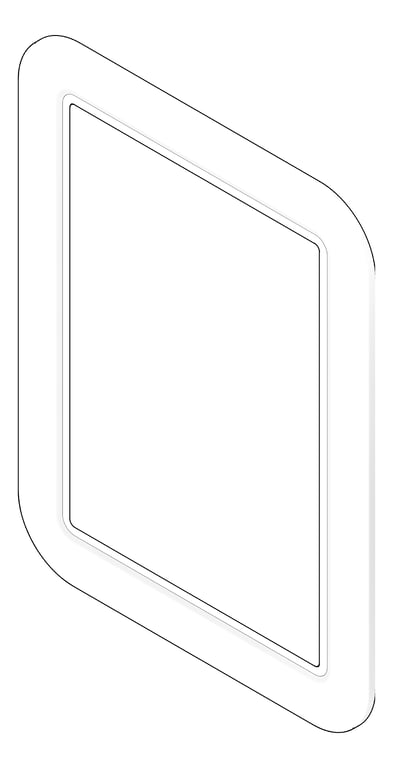

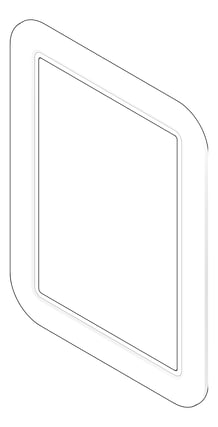

3D Documentation Image of Mirror RearMount ASIJDMacDonald Security OnePiece
Plan Image of Mirror RearMount ASIJDMacDonald Security OnePiece
Left Image of Mirror RearMount ASIJDMacDonald Security OnePiece

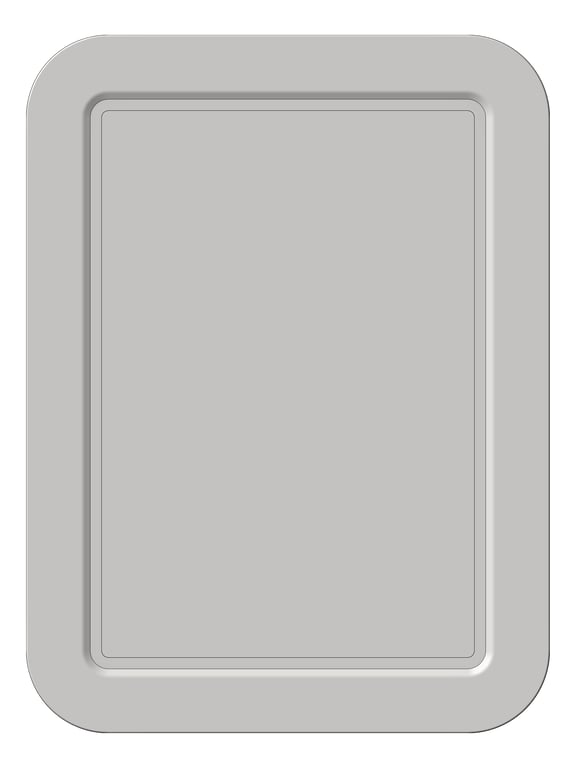

Front Image of Mirror RearMount ASIJDMacDonald Security OnePiece

Mirror RearMount ASIJDMacDonald Security OnePiece

Security Framed Mirror with Rounded Corners for chase mounting shall be fabricated of one piece formed alloy 18-8 stainless steel, type 304, No 18 gauge with No 8 mirror polish. Installed unit shall project ¼” (6mm) from wall. Rear of frame shall have welded on six (6) ¼-20” internally threaded posts. Six (6) ¼-20” threaded rods with washers and nuts shall be supplied as per length specified at time of order to suit wall thickness.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
6 mm
Height
406 mm
Width
305 mm
Model
10-108
ModifiedIssue
20221201.00
