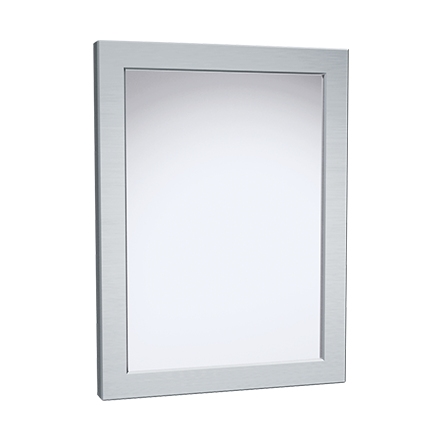

Image of Mirror RearMount ASIJDMacDonald Security Framed

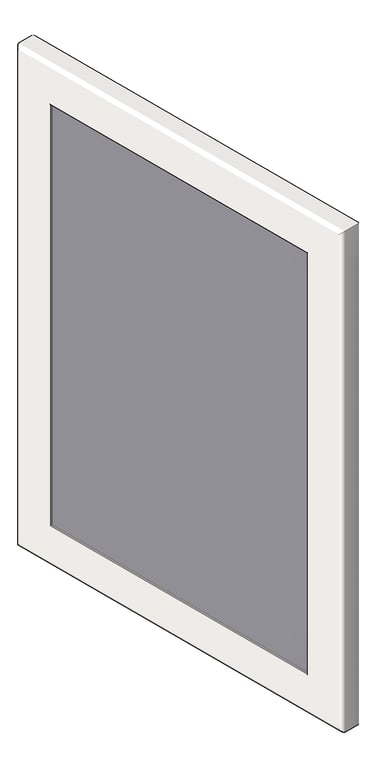

3D Shaded Image of Mirror RearMount ASIJDMacDonald Security Framed

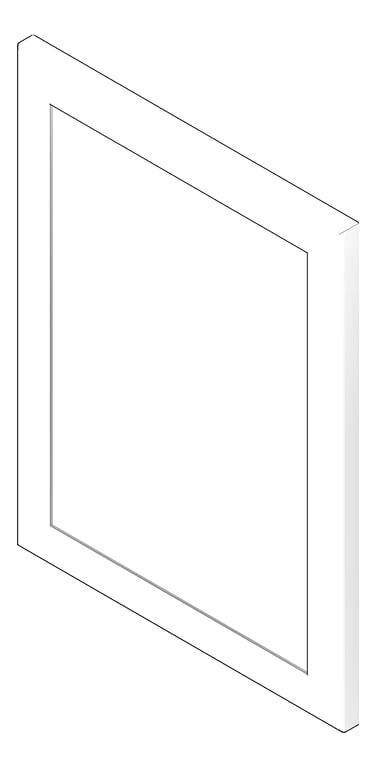

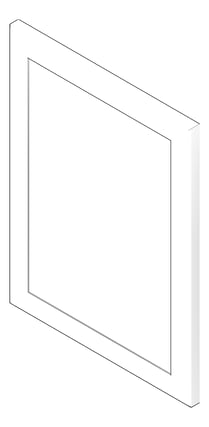

3D Documentation Image of Mirror RearMount ASIJDMacDonald Security Framed
Plan Image of Mirror RearMount ASIJDMacDonald Security Framed
Left Image of Mirror RearMount ASIJDMacDonald Security Framed

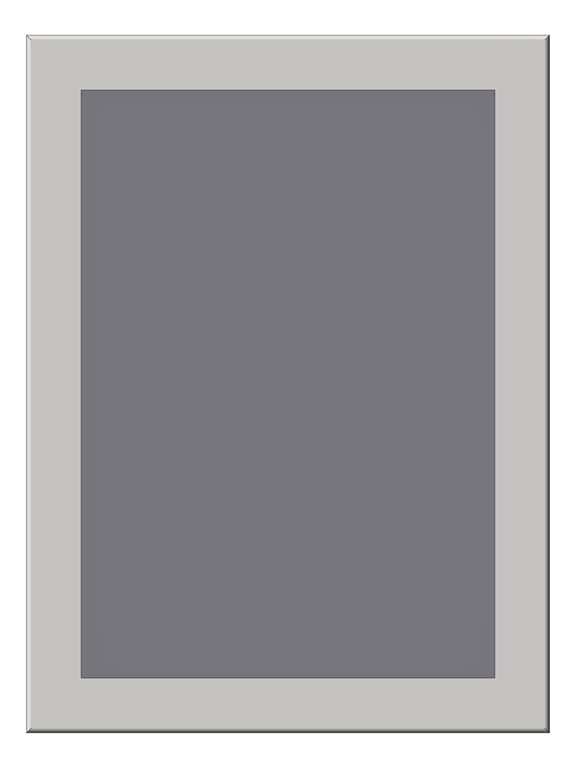

Front Image of Mirror RearMount ASIJDMacDonald Security Framed
10-101-14_ASIJDMacDonald_Security_Mirror_Rear_Mount_Web.png Image of Mirror RearMount ASIJDMacDonald Security Framed

Mirror RearMount ASIJDMacDonald Security Framed

Chase Mounted Security Framed Mirror shall have frame of alloy 14 gauge, type 304, alloy 18-8 stainless steel. Structural assembly of frame components shall be of welded construction with six (6) welded on threaded posts. All exposed surface shall be satin finish. Unit shall be provided with fiberboard backing. Glazing shall be as described in the Glazing Options chart.

Bulk Download Options
Virtual Showroom Available
Code Compliant Defaults
Manufacturer
Depth
16 mm
Height
406 mm
Width
305 mm
Model
10-101-14
ModifiedIssue
20221201.00
