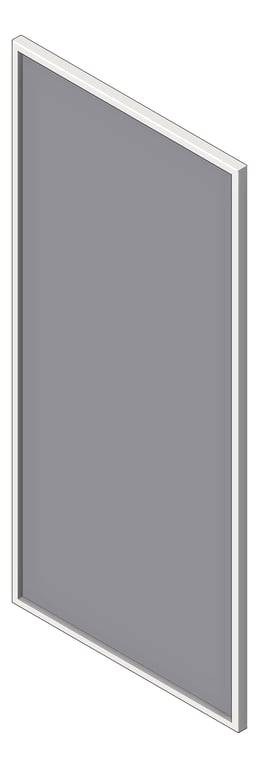

3D Shaded Image of Mirror Glass ASIJDMacDonald InterLok Accessible

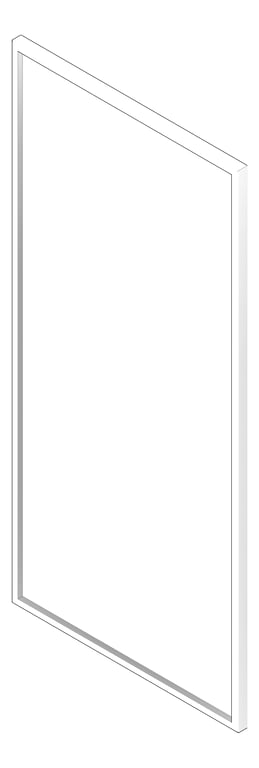

3D Documentation Image of Mirror Glass ASIJDMacDonald InterLok Accessible
Plan Image of Mirror Glass ASIJDMacDonald InterLok Accessible
Left Image of Mirror Glass ASIJDMacDonald InterLok Accessible

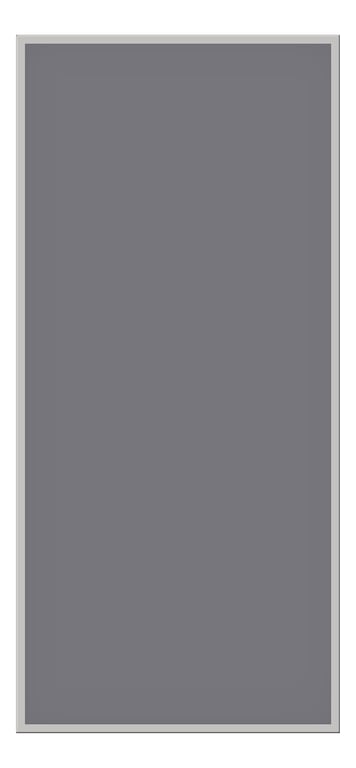

Front Image of Mirror Glass ASIJDMacDonald InterLok Accessible
10-0600-V_ASIJDMacDonald_Mirror_Interlock_Web.png Image of Mirror Glass ASIJDMacDonald InterLok Accessible

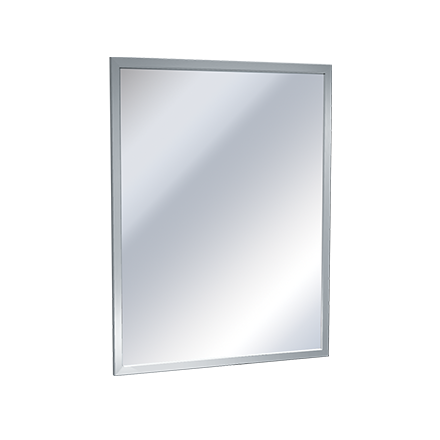

Mirror Glass ASIJDMacDonald InterLok Accessible

19 x 16 mm roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is vinyl backed and installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one-piece, attached to frame with theft-resistant locking device. See chart for standard sizes.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
19 mm
Height
990 mm
Width
460 mm|610 mm
Model
10-0600-V1839|10-0600-V2439
ModifiedIssue
20221201.00
Types
