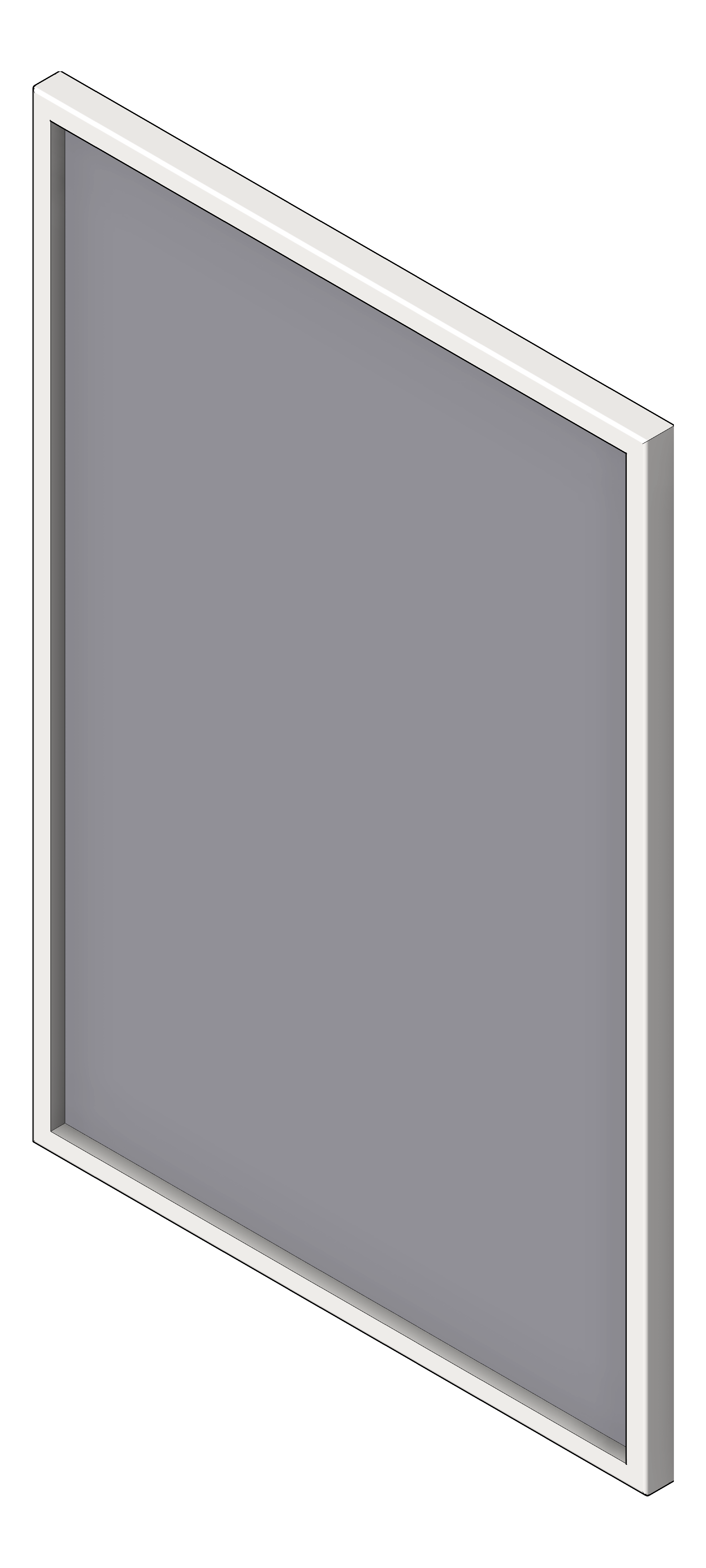

3D Shaded Image of Mirror Glass ASIJDMacDonald InterLok

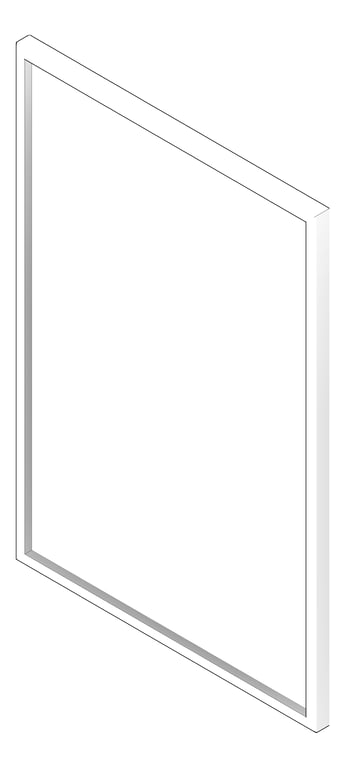

3D Documentation Image of Mirror Glass ASIJDMacDonald InterLok
Plan Image of Mirror Glass ASIJDMacDonald InterLok
Left Image of Mirror Glass ASIJDMacDonald InterLok

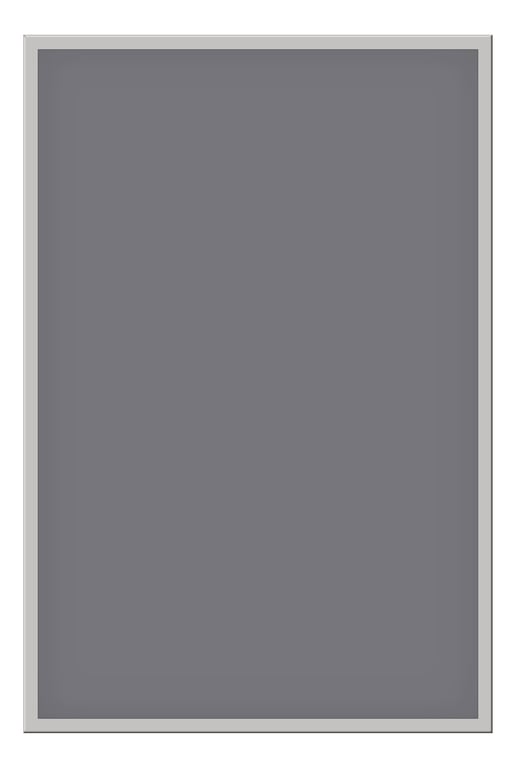

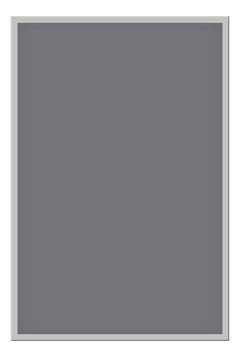

Front Image of Mirror Glass ASIJDMacDonald InterLok

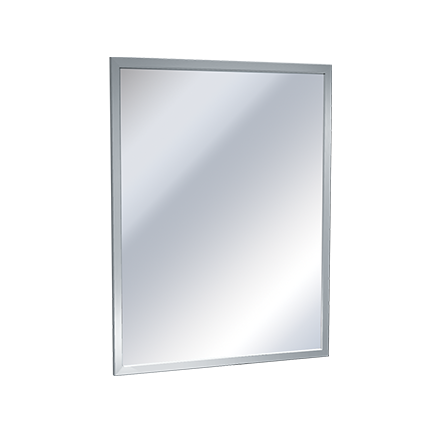

10-0600-V_ASIJDMacDonald_Mirror_Interlock_Web.png Image of Mirror Glass ASIJDMacDonald InterLok

Mirror Glass ASIJDMacDonald InterLok

19 x 16 mm roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is vinyl backed and installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one-piece, attached to frame with theft-resistant locking device. See chart for standard sizes.

Bulk Download Options
Virtual Showroom Available
Code Compliant Defaults
Manufacturer
Depth
19 mm
Height
Width
Model
ModifiedIssue
20221201.00
Types
