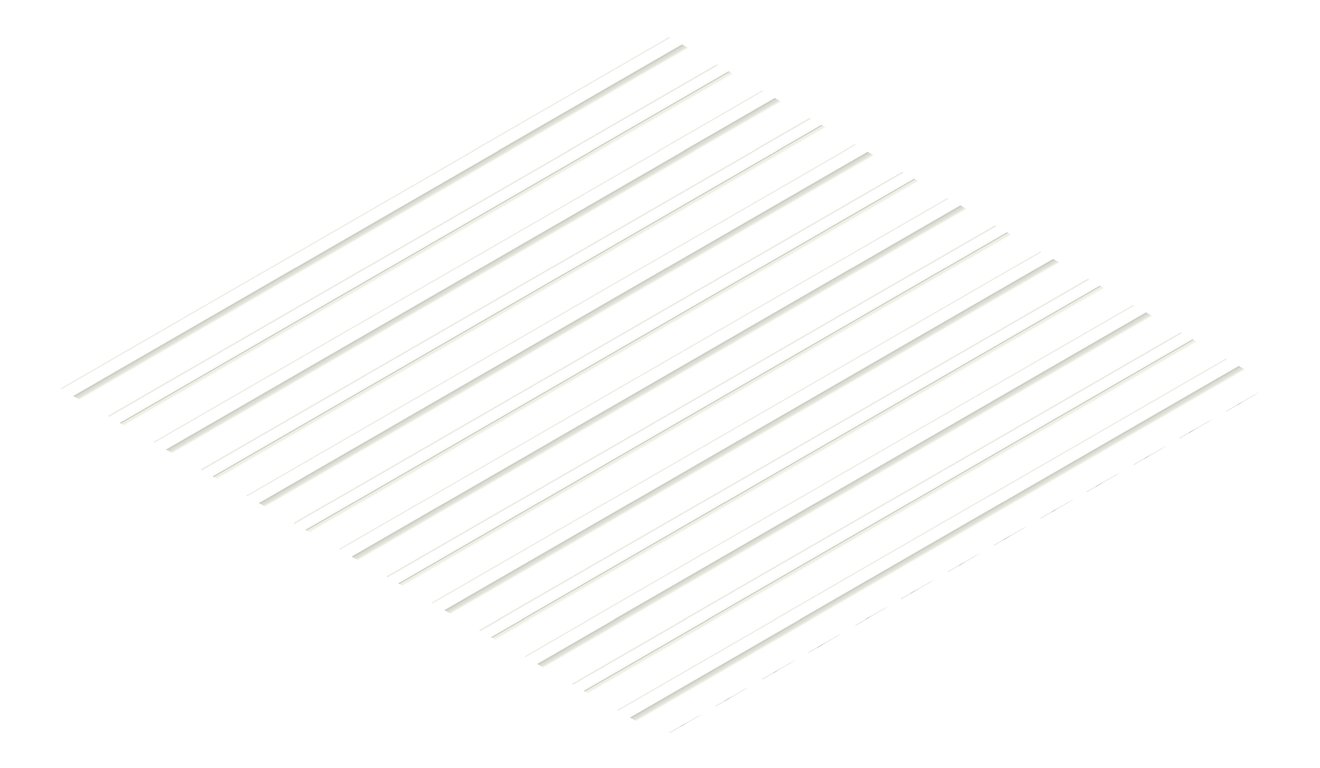

3D Presentation Image of Metal SheetCladding Lysaght Zenith Longline305 DoverWhite
Plan Image of Metal SheetCladding Lysaght Zenith Longline305 DoverWhite
LYSAGHT Zenith Longline Image of Metal SheetCladding Lysaght Zenith Longline305 DoverWhite
LYSAGHT - Zenith - Longline-1 Image of Metal SheetCladding Lysaght Zenith Longline305 DoverWhite
LYSAGHT - Zenith - Longline-2 Image of Metal SheetCladding Lysaght Zenith Longline305 DoverWhite

Metal SheetCladding Lysaght Zenith Longline305 DoverWhite

LYSAGHT LONGLINE 305® cladding is a concealed fixed roof cladding with bold ribs and wide pans. It is ideal for medium to large commercial projects where special architectural effects are desired. It has also been popular in industrial and residential applications. The unique locking system fixes the cladding to the clip so no fasteners pass through the roofing. Concealed fixing means there are no penetrations so weathertightness is maximised and a high rainfall capacity is achieved. LONGLINE 305® cladding can also be fluted or tapered allowing fanned and rounded plan roof shapes to be clad with ribs radiating from a central point.Key Information:Application: Roofing and wallingBase Metal Thickness: 0.70mmEffective Cover Width: 305mmRib Height: 48mmMinimum Pitch: 1 degree (1:50)
fast_forward
Advanced Materials
Created By IGS BIM Solutions
remove_red_eye
Virtual Showroom Available
Manufacturer
Material
Model
Type Comments
Lysaght_Zenith_Longline305
