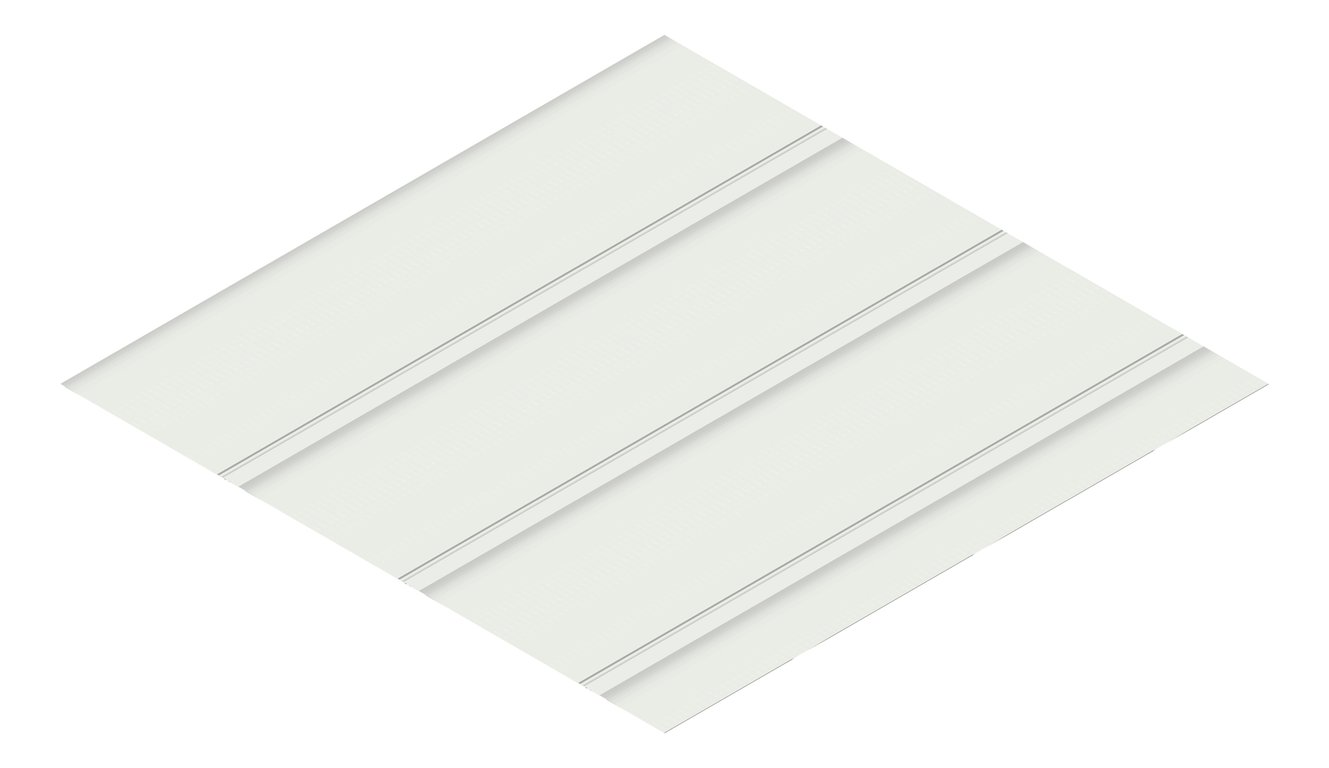

3D Presentation Image of Metal SheetCladding Lysaght Zenith Dominion285 ShaleGrey
Plan Image of Metal SheetCladding Lysaght Zenith Dominion285 ShaleGrey
LYSAGHT_Zenith_Dominion.png Image of Metal SheetCladding Lysaght Zenith Dominion285 ShaleGrey
LYSAGHT - Zenith - Dominion-1.jpg Image of Metal SheetCladding Lysaght Zenith Dominion285 ShaleGrey
LYSAGHT - Zenith - Dominion-2.jpg Image of Metal SheetCladding Lysaght Zenith Dominion285 ShaleGrey

Metal SheetCladding Lysaght Zenith Dominion285 ShaleGrey

LYSAGHT DOMINION® architectural panel is a concealed fixed flat panel wall cladding system. DOMINION® is structurally sound for direct fixed to steel battens and can also be fixed onto conventional supporting substrate such as plywood or fibre cement panels. DOMINION® is a wall cladding system installed with a ventilated air space. It involves laying DOMINION®on a metal framework fixed to the supporting structure. The interlocking groove connecting the panels gives an elegant recessed joint. DOMINION®can be laid vertically or horizontally. The choice of direction implies different aesthetics and technical solutions for the main flashings.Key Information:Application: WallingBase Metal Thickness: 0.55/0.75mmEffective Cover Width: 285mmRecess Depth: 22/25mmMinimum Pitch: n/a

fast_forward
Advanced Materials
Created By IGS BIM Solutions
remove_red_eye
Virtual Showroom Available
Manufacturer
Type Comments
Lysaght_Zenith_Dominion285
